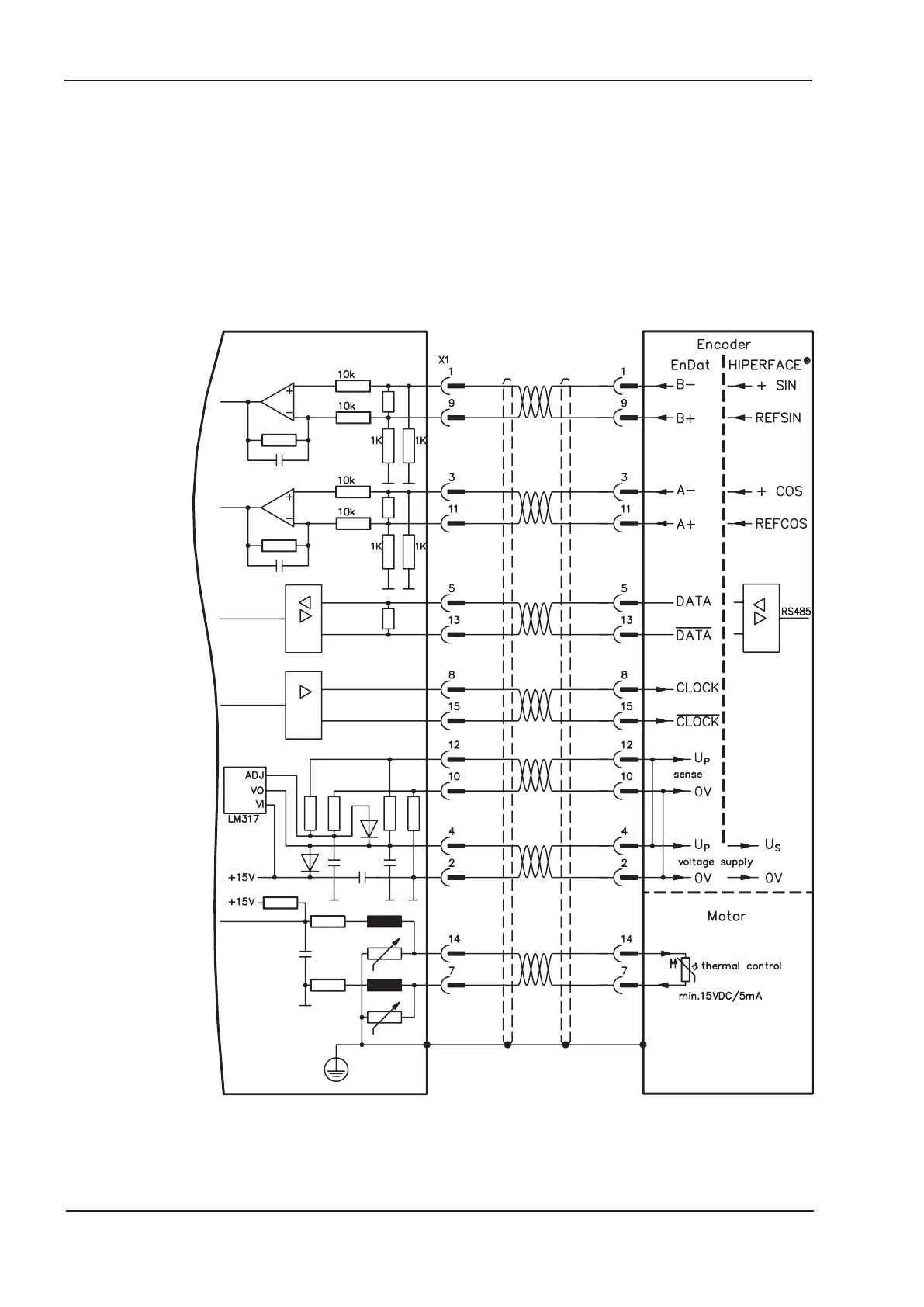

8.11.3 Sine Encoder with EnDat 2.1 or HIPERFACE (X1)
Connection of a single-turn or multiturn sine-cosine encoder. Preferred types are ECN1313 and
EQN1325.
The thermal control in the motor is connected via the resolver cable to the SERVOSTAR and eva
-
luated there. All signals are connected using our pre-assembled encoder connection cable.
If cable lengths of more than 50 m are planned, please consult our customer service.
Frequency limit (sin, cos): 250 kHz
Encoder with EnDat: FBTYPE 3, 4
Encoder with HIPERFACE: FBTYPE 2, 3
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
52 SERVOSTAR
®
640/670 Instructions Manual
Electrical Installation
12/2010 Kollmorgen
SERVOSTAR 640/670
17pol.round
SubD15
