102

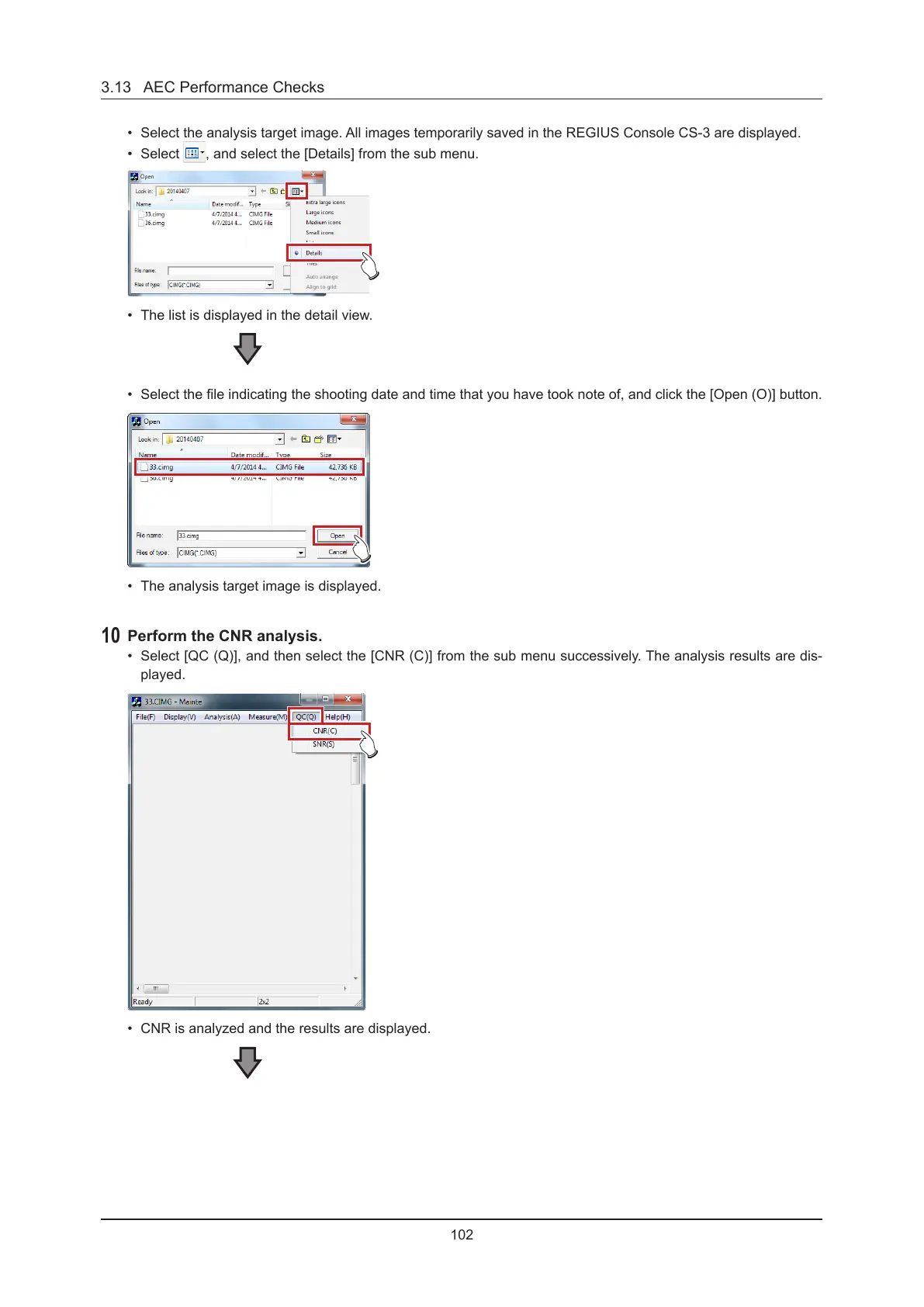

3.13 AEC Performance Checks
• Select the analysis target image. All images temporarily saved in the REGIUS Console CS-3 are displayed.
• Select , and select the [Details] from the sub menu.
• The list is displayed in the detail view.
• Select the le indicating the shooting date and time that you have took note of, and click the [Open (O)] button.
• The analysis target image is displayed.
10
Perform the CNR analysis.
• Select [QC (Q)], and then select the [CNR (C)] from the sub menu successively. The analysis results are dis-
played.
• CNR is analyzed and the results are displayed.
To Next Page
