CP-RIO3-04 Rear I/O CP3003-SA
Page C - 10 ID 1052-6929, Rev. 3.0
D R A F T — F O R I N T E R N A L U S E O N L Y
C.5.6 SATA Interfaces
The onboard SATA connectors J5 and J6 allow the connection of standard HDDs/SSDs and
other SATA devices to the CP-RIO3-04 rear I/O module.
The following figure and table provide pinout information for the SATA connectors J5 and J6.
Note ...
When using a SATA cable, it is recommended to use a special right-angled
SATA cable due to possible space limitations within the system. For further
information, please contact Kontron.

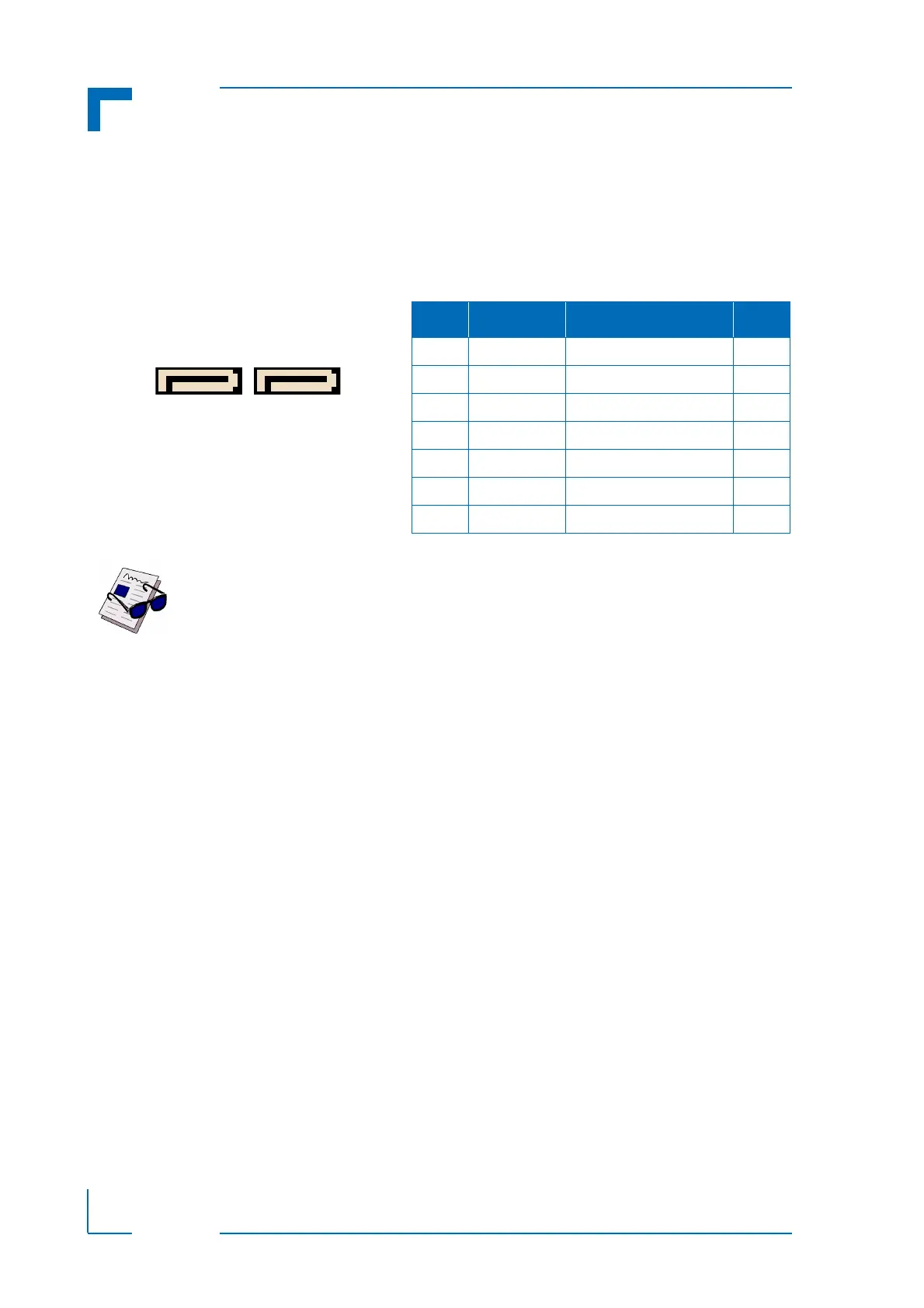

Figure C-10: SATA Con. J5 and J6
Table C-8: SATA Connectors J5 and J6 Pinout
PIN SIGNAL DESCRIPTION I/O
1 GND Ground signal --
2 SATA_TX+ Differential Transmit + O
3 SATA_TX- Differential Transmit - O
4 GND Ground signal --
5 SATA_RX- Differential Receive - I
6 SATA_RX+ Differential Receive + I
7 GND Ground signal --
