KTM 2014 690 SMC R EU User Manual

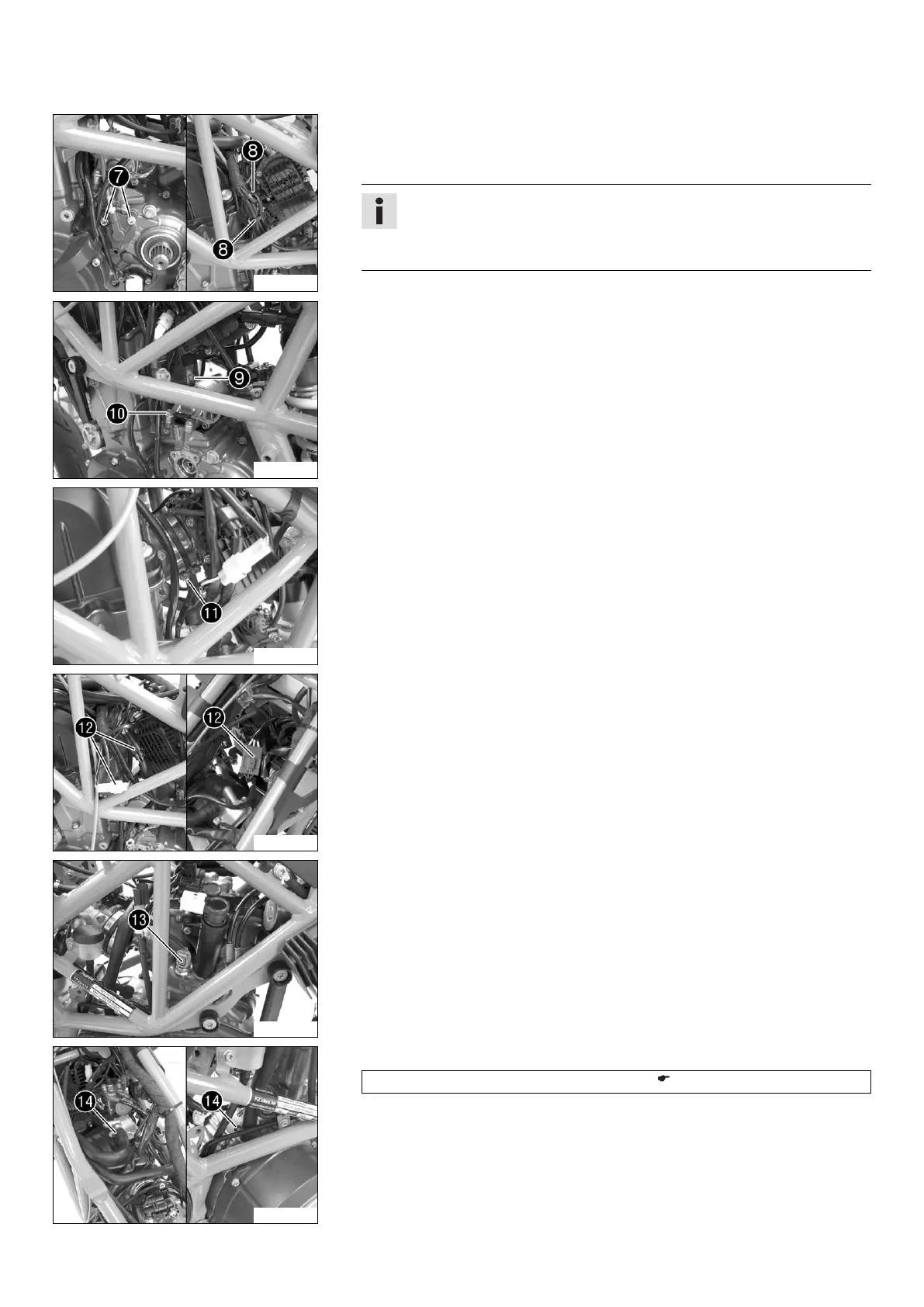

16 ENGINE 106
– Take off the engine sprocket.
G00838-10
–
Remove screws

.
–
Remove cable binder

.
– Take off the clutch slave cylinder with the gasket and hang it to the side.
Info
Do not kink the clutch line.
Do not activate the clutch lever if the clutch slave cylinder has been
removed.
– Take off the clutch push rod.
G00839-10
–
Pull back the protection cap. Remove nut

.
–
Remove screw

.
G00840-10
–
Loosen hose clip

.
– Pull off the throttle valve body from the rear.
G00841-10
–
Disconnect plug-in connector

of the gear position sensor, crankshaft position
sensor, and alternator.
G00842-10
– Detach the spark plug connectors.
–
Unplug the connector of the engine coolant temperature sensor

.
G00843-10
–
Loosen the spring band clamps

using the special tool.
Pliers for spring band clamp (60029057100) ( p. 231)
