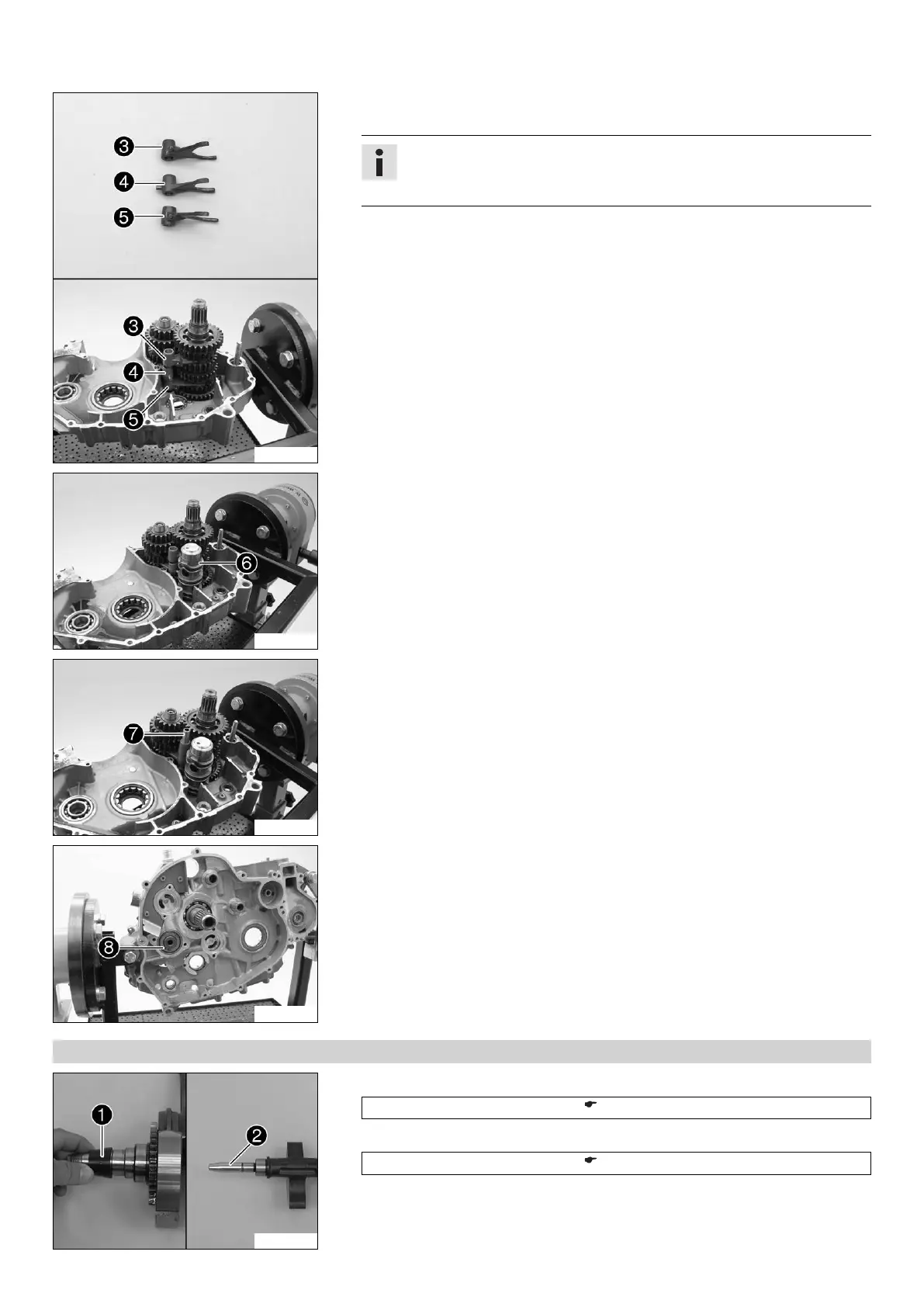

16 ENGINE 155
305643-10
Mount the upper shift fork
, the middle shift fork
, and the lower shift
fork
.
Info
For easier assembly of the middle shift fork
, lift the sliding gear of the
third/fourth gear.
305639-11
Insert shift drum
into the bearing seat.
Hang the shift forks into the shift drum.
305638-11
Mount shift rail
.
Check the transmission for smooth operation.
305641-11
Mount the washer and lock ring
.
16.5.2 Installing crankshaft and balancer shaft
302136-10
Mount the special tool
on the alternator side of the crankshaft.
Mounting sleeve (75029080000) ( p. 236)
Mount the special tool
on the balancer shaft.
Mounting sleeve (58529005000) ( p. 229)
