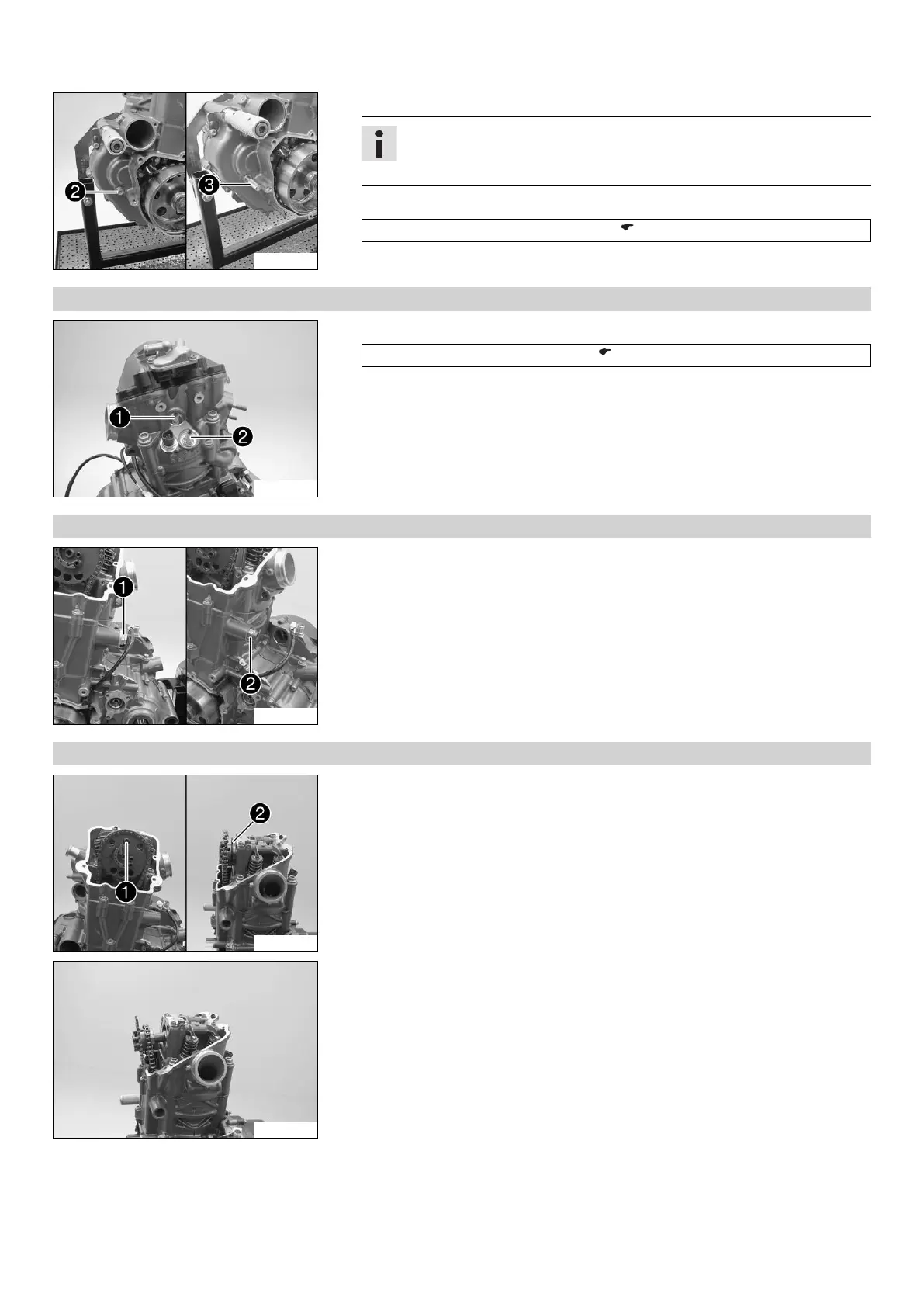

16 ENGINE 114

305532-10

–

Remove screw



Info

Look through the hole to check that the position hole of the balancer shaft

is visible.

–

Screw in special tool



Engine blocking screw (77329010000) ( p. 237)

16.3.11 Removing the spark plugs

305516-10

–

Remove spark plugs



and



Spark plug wrench (75029172000) ( p. 236)

16.3.12 Removing the timing chain tensioner

305539-10

–

Remove screw



with the seal ring.

–

Remove timing chain tensioner



16.3.13 Removing the camshafts

305542-10

–

Remove screw



–

Take off the camshaft support plate



305543-10

– Pull the camshaft out of the bearing seats.

– Take the timing chain off the camshaft gear.

– Remove the camshaft.
