12 WHEELS 74
101999-10

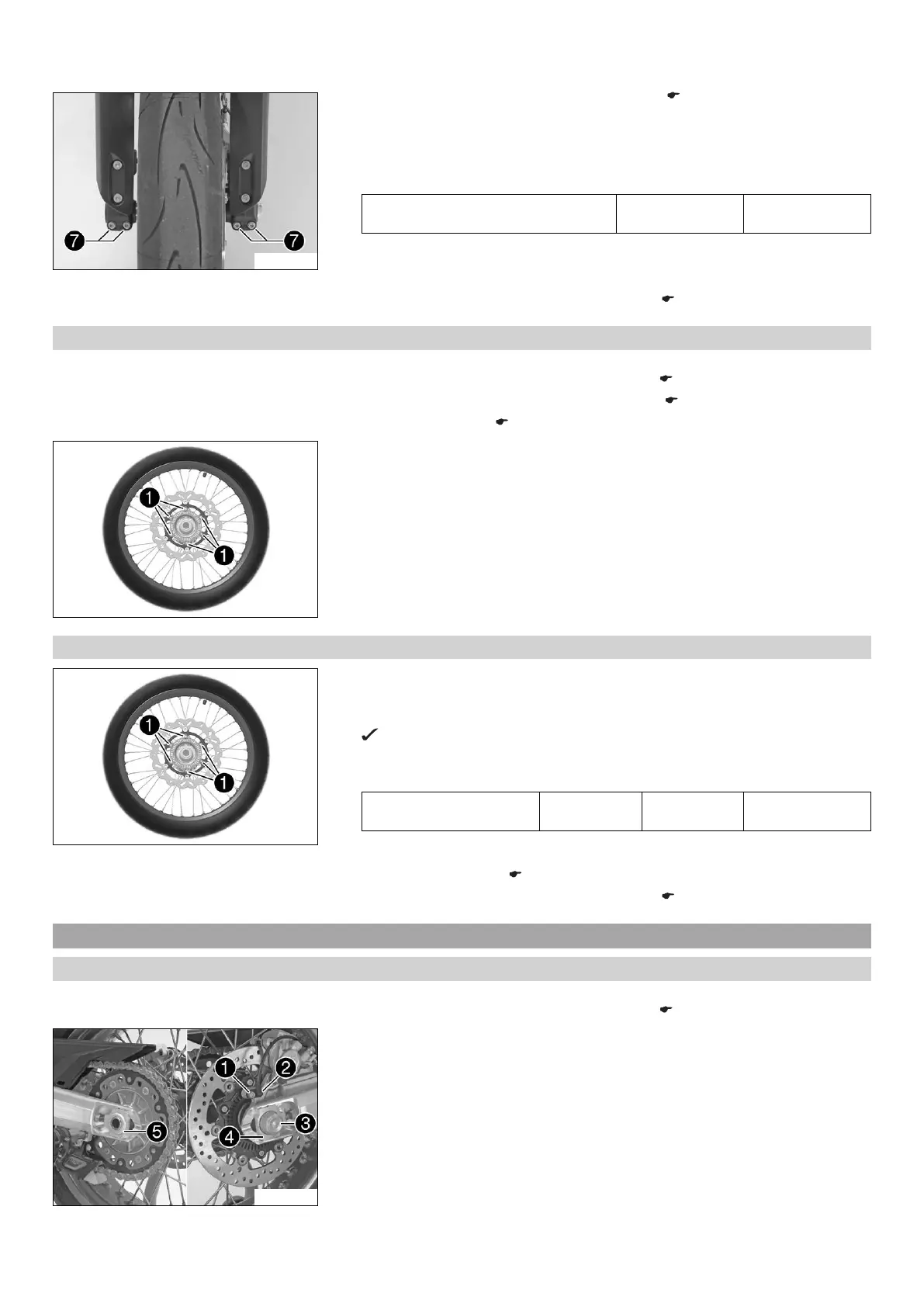

– Take the motorcycle off of the front wheel stand. ( p. 11)
– Pull the front wheel brake and push down hard on the fork several times to align
the fork legs.
–
Tighten screws

.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
Finishing work
– Take the motorcycle off of the rear wheel stand. ( p. 10)
12.6.3 Removing the brake disc of the front brake
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 10)
– Raise the motorcycle with the front wheel stand. ( p. 10)
– Remove front wheel. ( p. 72)
402044-10
Main work
–
Remove screws

. Take off the brake disc with the ABS sensor wheel.
12.6.4 Installing the brake disc of the front brake
402044-10
Main work
– Clean the contact surface of the brake disc.
– Position the brake disc with the ABS sensor wheel.
The lettering on the ABS sensor wheel is located on the outside.
–
Mount and tighten screws

.
Guideline
Screw, front brake disc M6 14 Nm
(10.3 lbf ft)
Loctite
®
243™
Finishing work
– Install the front wheel. ( p. 73)
– Take the motorcycle off of the rear wheel stand. ( p. 10)
12.7 Rear wheel
12.7.1 Removing rear wheel
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 10)
102000-10
Main work
– Press the brake caliper by hand on to the brake disc in order to press back the
brake piston.
–
Remove screw

and pull wheel speed sensor

out of the hole.
–
Remove nut

. Remove chain adjuster

.
