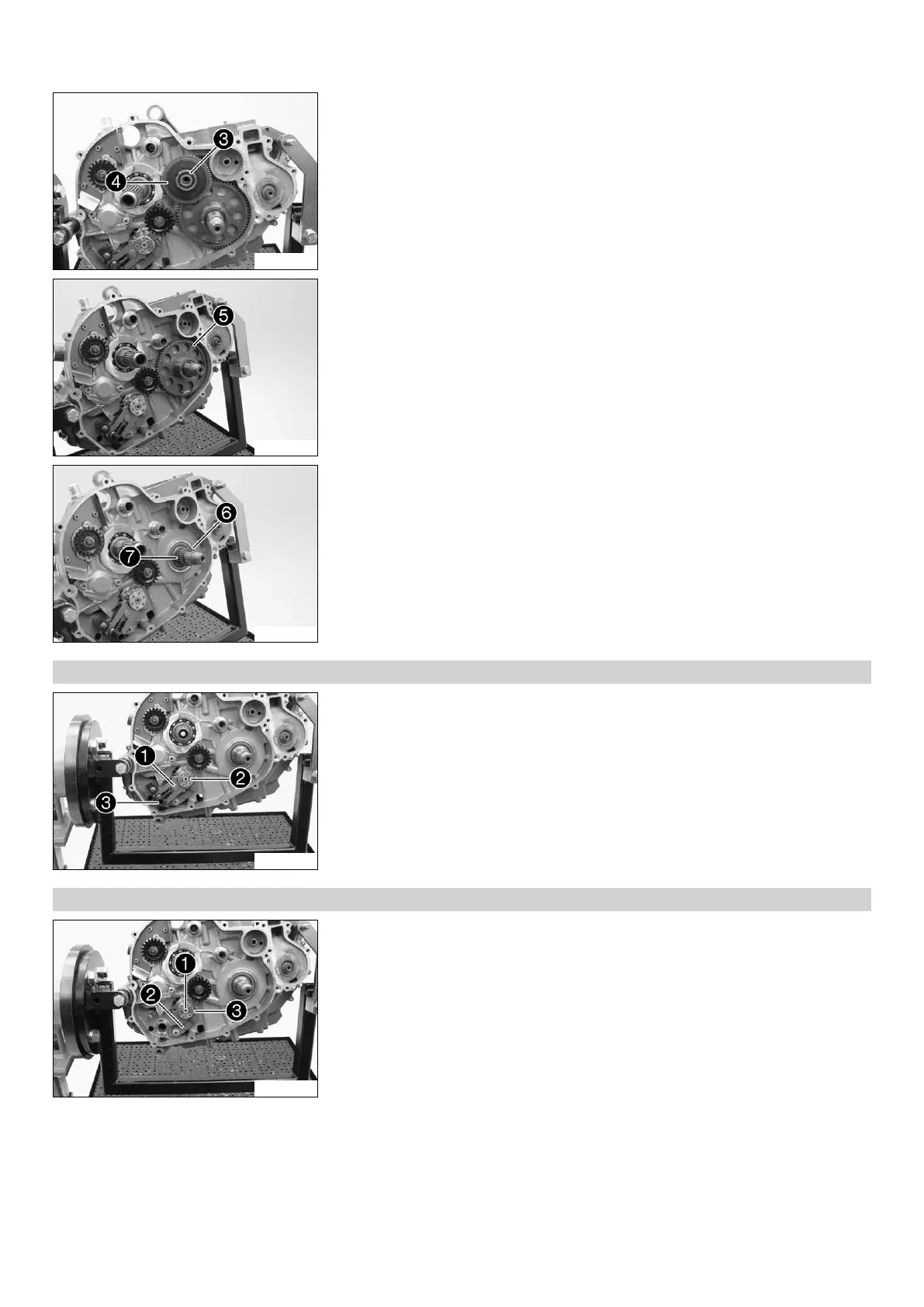

16 ENGINE 121
305615-10
–
Remove lock ring
.
–
Remove torque limiter
with the washers and needle bearing.
305616-10
–
Take off freewheel gear
.
305617-10
–
Remove woodruff key
and both needle bearings
.
16.3.26 Removing shift shaft
305618-10
–
Push sliding plate
away from the shift drum locating
. Remove shift
shaft
with the washer.
16.3.27 Removing shift drum locating
305619-10
–
Remove screw
.
–
Press locking lever
away from shift drum locating
and take off the shift
drum locating.
– Release the locking lever.
