Remove the oil filler plug

with the O-ring from the clutch cover and fill up with
engine oil.
Engine oil 1.70 l (1.8 qt.) Engine oil (SAE 10W/60)
(00062010035) ( p. 224)
Alternative engine
oil
Engine oil
(SAE 10W/50)
( p. 224)
–
Mount and tighten the filler plug with O-ring

.
Finishing work
– Fill/bleed the cooling system. ( p. 178)
– Install the air filter box. ( p. 59)
– Mount the side cover. ( p. 62)
– Mount the seat. ( p. 62)
– Remove the motorcycle from the work stand. ( p. 12)
– Perform the initialization run. ( p. 189)
– Take a short test ride.
– Read out the fault memory using the KTM diagnostics tool.
– Check the engine for leakage.
– Check the engine oil level. ( p. 181)
– Check the coolant level. ( p. 180)

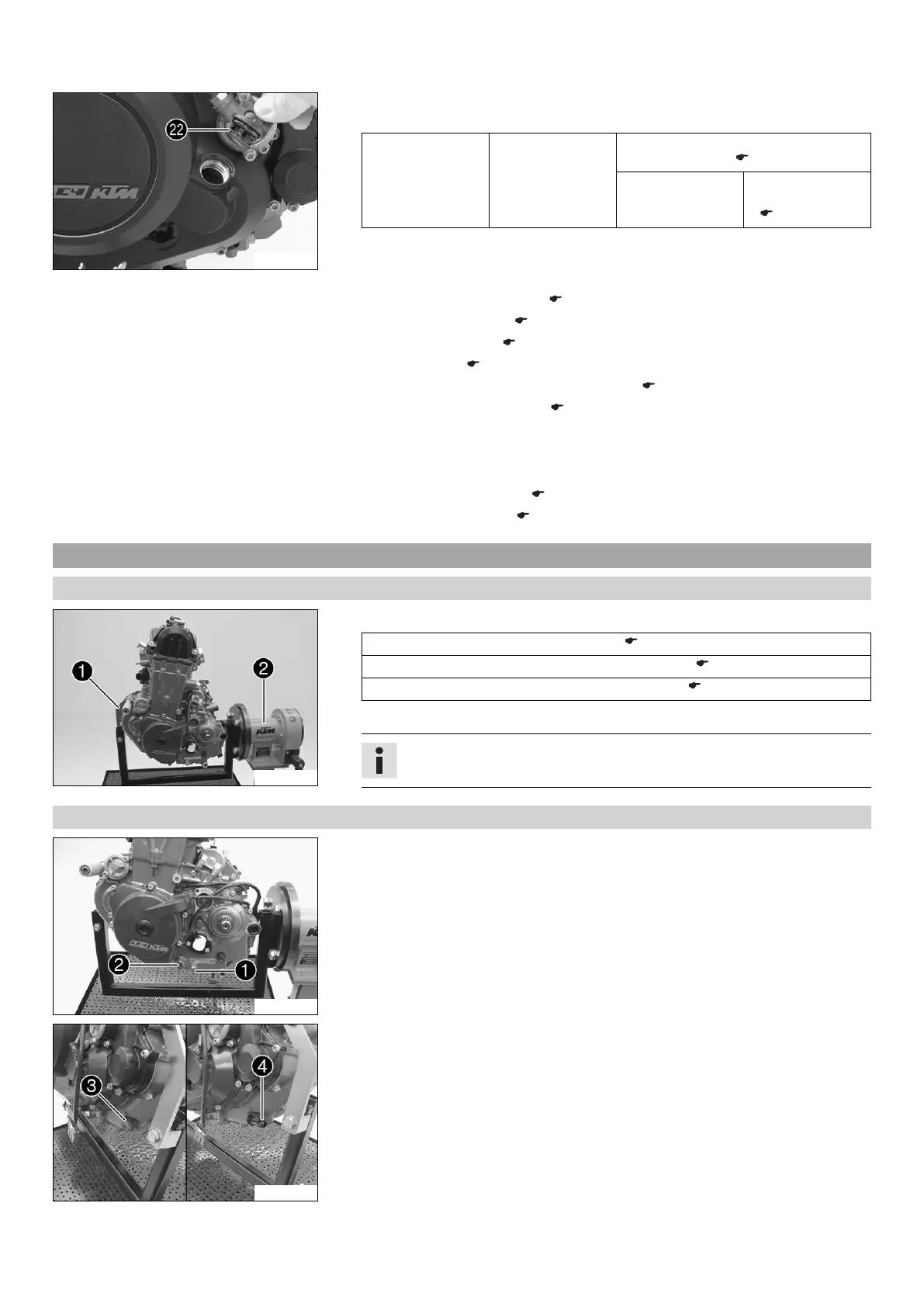

16.3 Disassembling the engine
16.3.1 Clamping the engine into the engine assembly stand
305506-10
–
Mount special tool

on engine assembly stand

.
Engine assembly stand (61229001000) ( p. 232)
Support for engine assembly stand (75012001060) ( p. 232)
Holder for engine assembly stand (75012001070) ( p. 232)
–
Mount the engine on special tool

.
Info
Have an assistant help you or use a crane.
16.3.2 Draining the engine oil
305508-10
–
Remove the oil drain plug

with the magnet and seal ring.
–
Remove plug

with oil screen and the O-rings.
305509-10
–
Remove plug

with oil screen

and the O-rings.
– Completely drain the engine oil.
