16 ENGINE 105

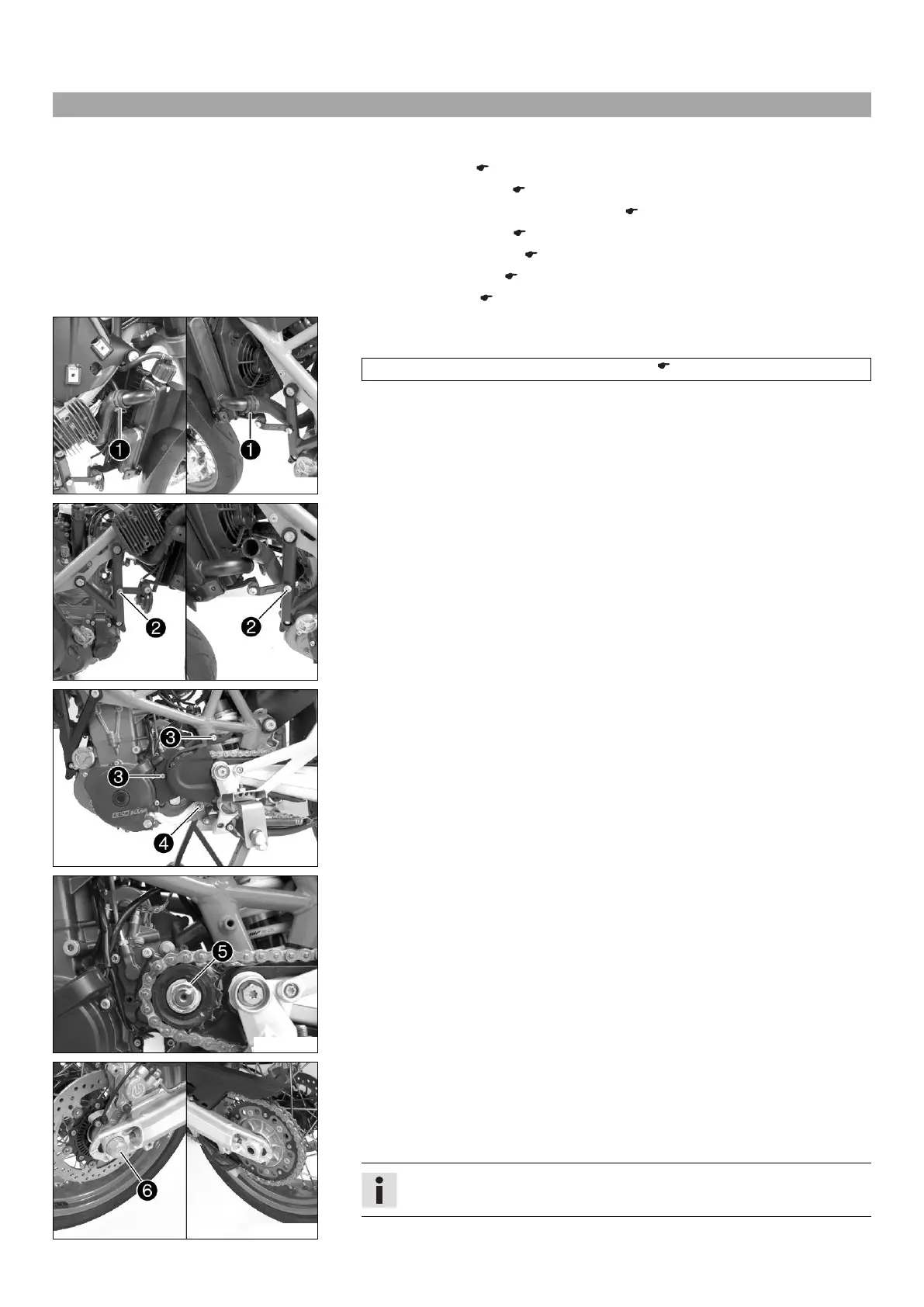

16.1 Removing the engine
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 61)
– Disconnect the battery. ( p. 83)
– Raise the motorcycle with the work stand. ( p. 11)
– Take off the side cover. ( p. 62)
– Remove the air filter box. ( p. 57)
– Remove the manifold. ( p. 53)
– Drain the coolant. ( p. 178)
G00833-10
Main work
–
Loosen the spring band clamp

using the special tool. Detach the radiator hoses.
Pliers for spring band clamp (60029057100) ( p. 231)
G00834-10
–
Remove screws

.
G00835-10
–
Remove screws

.
– Take off the engine sprocket cover.
–
Remove screw

.
– Take off the shift lever.
G00836-10
–
Bend up lock washer

.
– Have an assistant operate the rear brake.
– Remove the nut of the engine sprocket with the lock washer.
G00837-10
–
Remove nut

. Remove the chain adjuster.
– Pull out the wheel spindle only far enough to allow the rear wheel to be pushed for-
ward.
– Push the rear wheel forward as far as possible and take the chain off the rear
sprocket.
Info
The rear wheel does not need to be fully removed.
