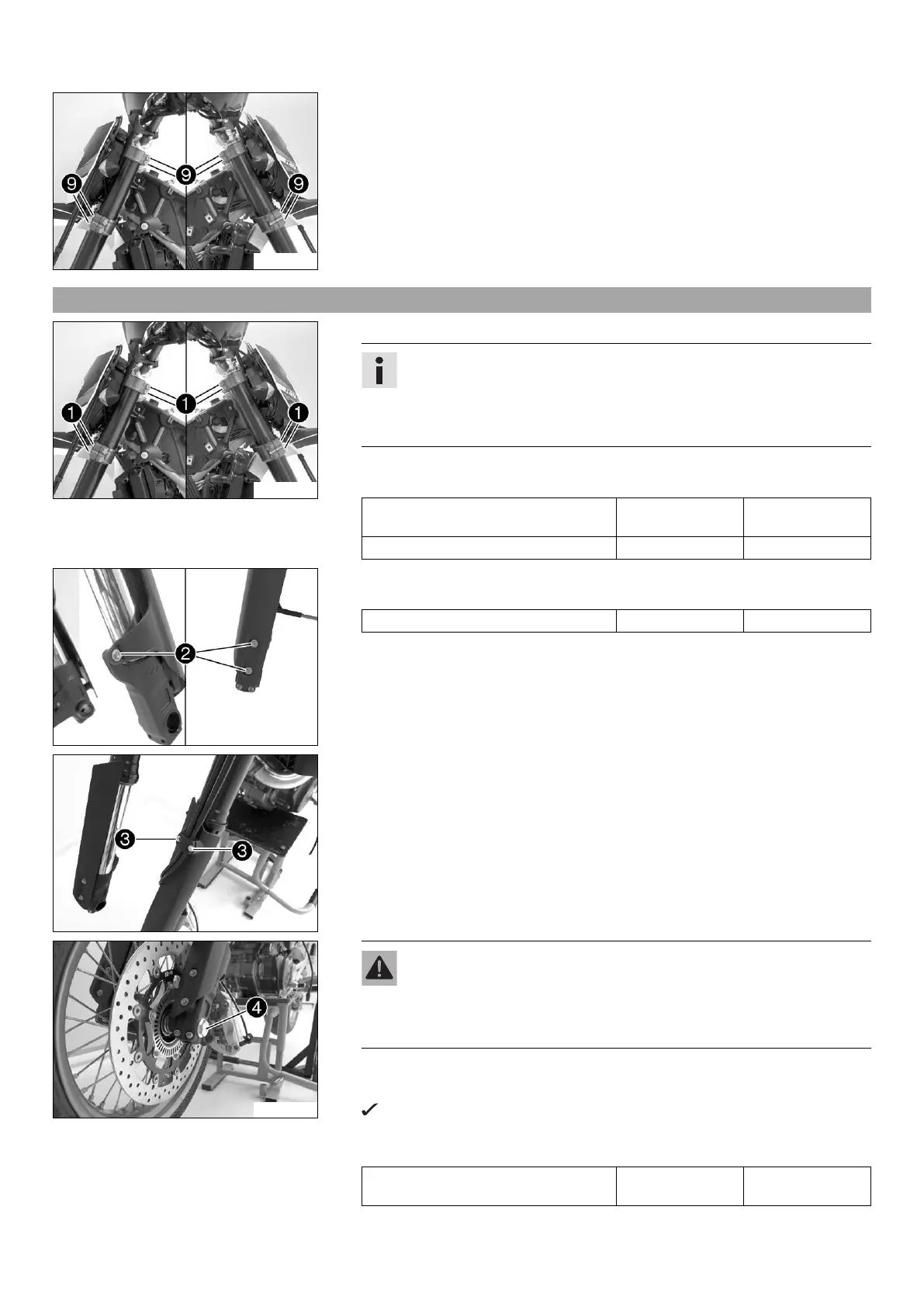

6 FORK, TRIPLE CLAMP 17
G00829-10
–
Loosen the screws
of the triple clamp. Remove the fork legs from the bottom.
6.8 Installing the fork legs
G00829-11
– Slide the fork legs into the triple clamps on both sides.
Info
The bleeder screws must face forwards.
The topmost milled groove in the fork leg must be flush with the top edge of
the upper triple clamp.
The upper fork projection must be the same on both sides.
–
Tighten screws
on both sides.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
G00832-11
–
Position the fork protection. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
G00828-11
– Position the brake line, wiring harness and clamp.
–
Mount and tighten screws
.
G00830-11
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the
brake discs.
– Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
–
Clean screw
and the wheel spindle.
– Position the front wheel and insert the wheel spindle.
The brake linings are correctly positioned.
–
Mount and tighten screw
.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
