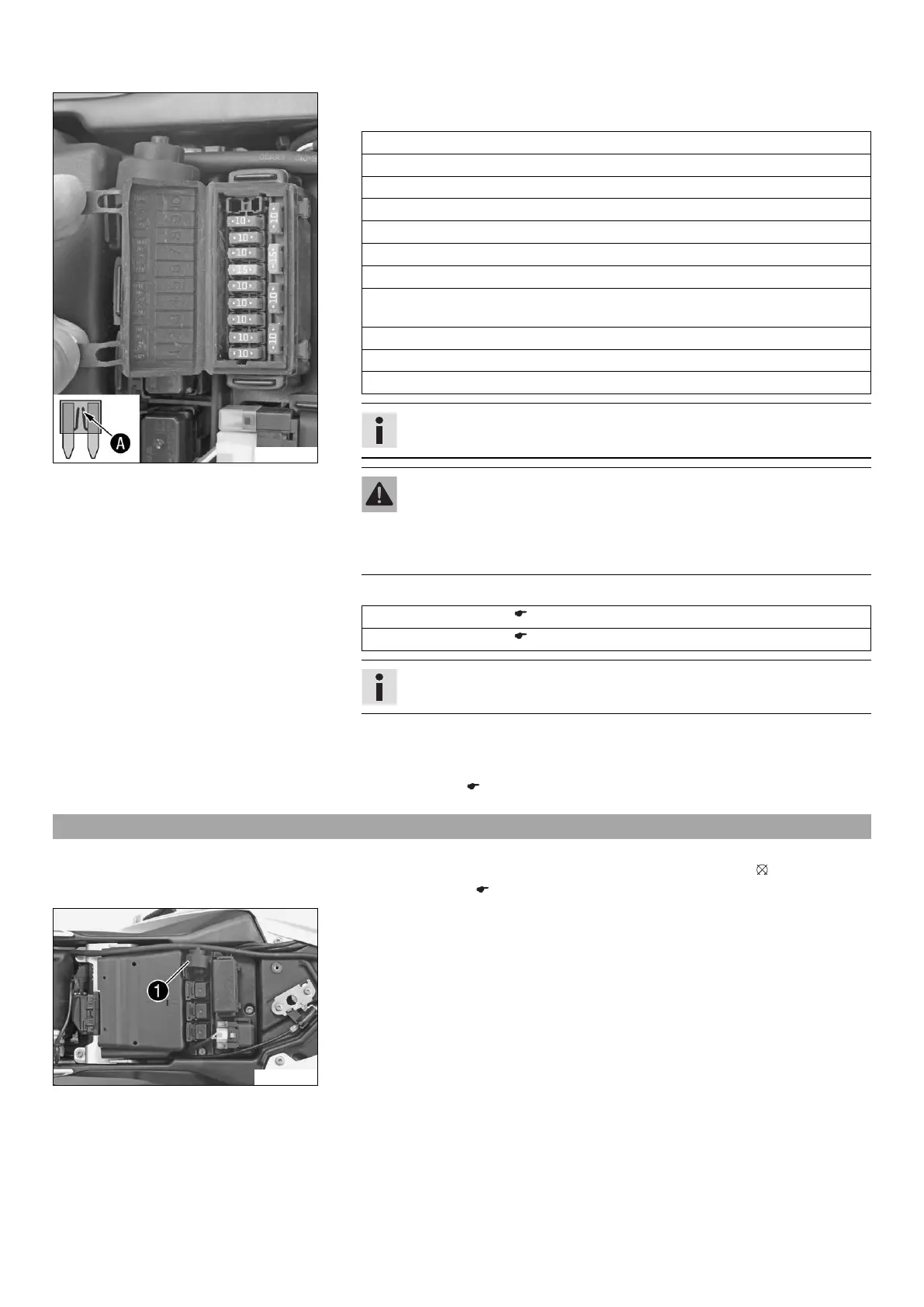

13 WIRING HARNESS, BATTERY 87
102008-10
– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - ignition, combination instrument, clock, EFI control unit
Fuse 2 - 10 A - ignition, combination instrument, EFI control unit
Fuse 3 - 10 A - fuel pump
Fuse 4 - 10 A - radiator fan
Fuse 5 - 10 A - horn, brake light, turn signal
Fuse 6 - 15 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 7 - 10 A - for auxiliary equipment (permanent positive)
Fuse 8 - 10 A - for supplementary equipment (accessories connected with igni-
tion switch)
Fuse 9 - 10 A - ABS
Fuse 10 - not used
Fuse SPARE - 10 A/15 A - spare fuses
Info
A defective fuse is indicated by a burned-out fuse wire
.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never by-pass or repair
fuses.
– Replace with a spare fuse of the right rating.
Fuse (75011088010) ( p. 194)
Fuse (75011088015) ( p. 194)
Tip
Put a new spare fuse in the fuse box for future use if needed.
– Check the function of power consumers.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 62)
13.10 Adjusting the engine characteristic
Preparatory work
– Switch off the ignition by turning the ignition key to position OFF .
– Remove the seat. ( p. 61)
102019-10
Main work
–
Pull the Map‑Select switch and holder
upward off of the retaining bracket.
– Pull the Map‑Select switch out of the holder.
