16 ENGINE 142

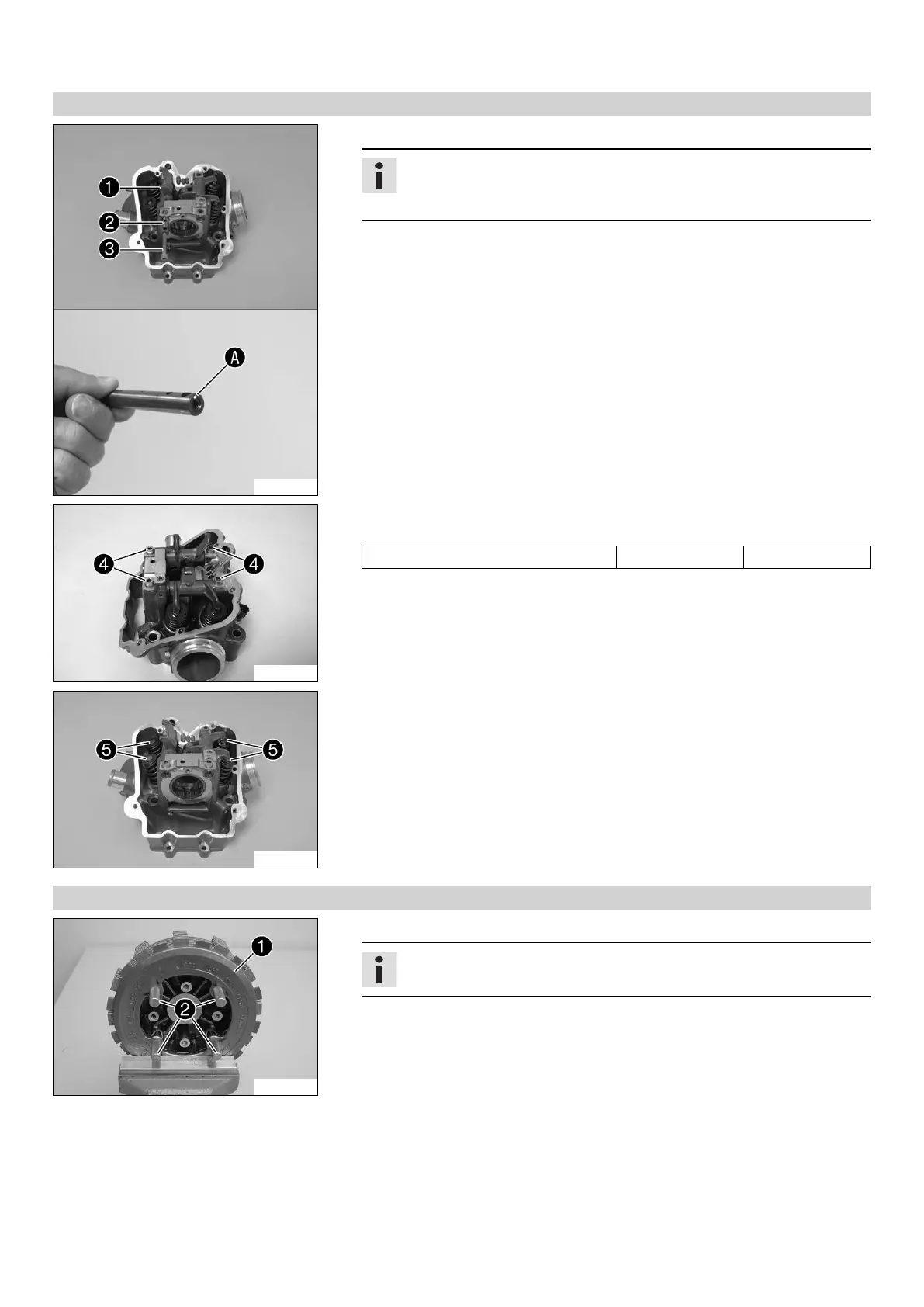

16.4.28 Installing the rocker arm
305667-10
–
Position rocker arm

and push in the rocker arm shafts

.
Info
Make sure that the tapped hole of the rocker arm shaft is facing outward.
The small drill hole

and the flat surface must face upward.
–
Remove screw

.
305665-11
–
Mount and tighten screws

.
Guideline
Screw, rocker arm shaft M6x30 12 Nm (8.9 lbf ft)
305664-11
–
Place shims

into the valve spring retainers according to their normal built-in
position.
16.4.29 Disassembling the antihopping clutch
300120-10
–
Clamp the clutch

in a vise.
Info
Use soft jaws.
–
Carefully loosen and gradually remove the special tool

.
