16 ENGINE 141
305592-10

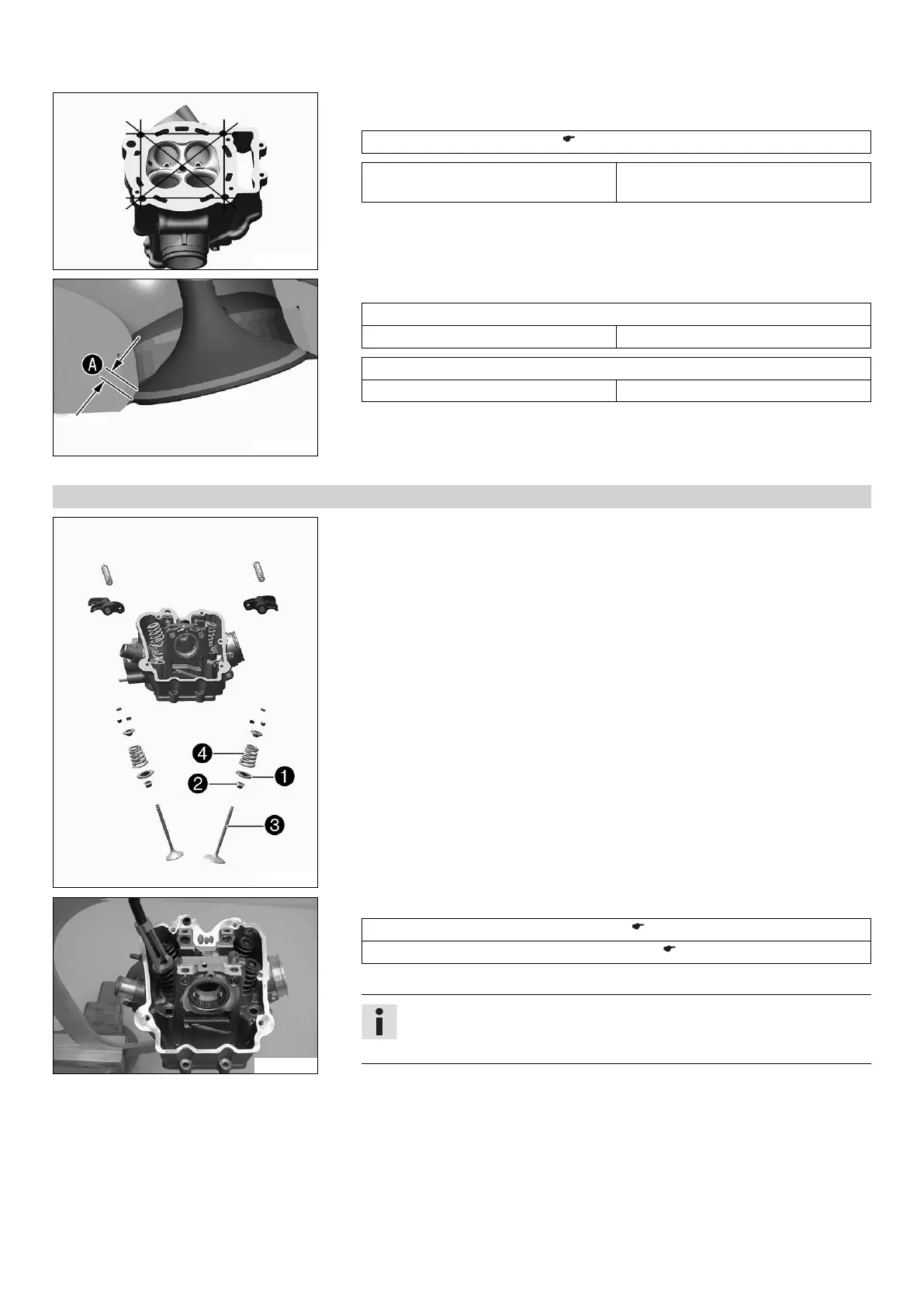

– Check the sealing area of the cylinder for distortion using a straight edge and the
special tool.
Feeler gauge (59029041100) ( p. 230)
Cylinder/cylinder head - sealing area
distortion
≤ 0.10 mm (≤ 0.0039 in)
» If the measured value does not equal the specified value:
– Change the cylinder head.
302808-10
–
Check sealing seat

of the valves.
Valve - sealing seat width
Intake 1.60 mm (0.063 in)
Valve - sealing seat width
Exhaust 2.00 mm (0.0787 in)
» If the measured value does not equal the specified value:
– Machine the valve seat.
– Blow compressed air through all oil channels and check that they are clear.
16.4.27 Installing the valves
305596-10
–
Position the valve spring seat

. Mount the new valve stem seals

.
–
Mount valves

according to their normal built-in position.
–
Mount valve springs

and the spring retainers.
300116-11
– Pretension the valve springs using the special tool.
Valve spring compressor (59029019000) ( p. 230)
Valve spring mounting device (78029060000) ( p. 237)
– Mount the valve keys.
Info
When mounting the valve keys, check that they are seated correctly; prefer-
ably, fix the valve keys to the valve with a little grease.
