16 ENGINE 158

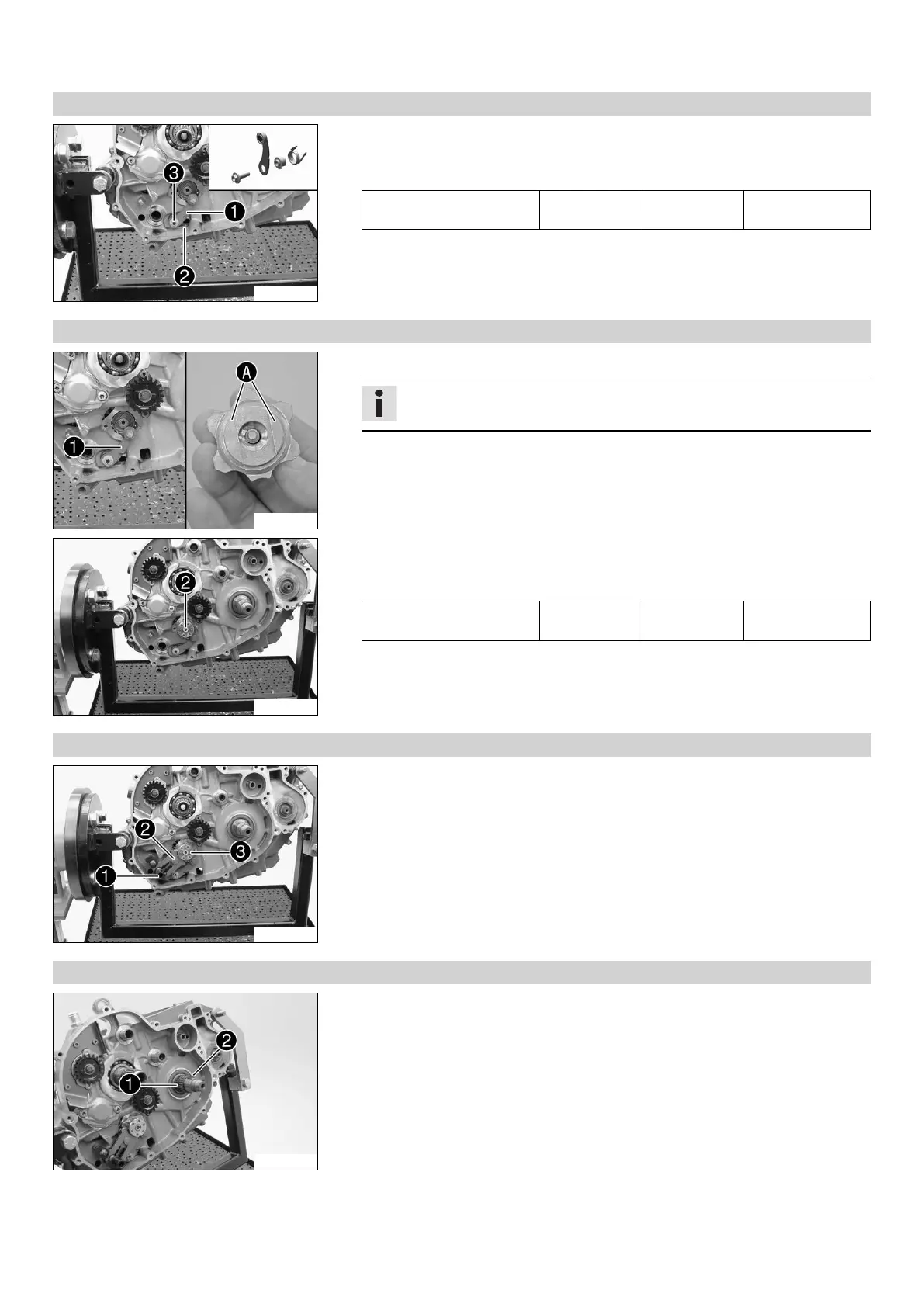

16.5.5 Installing locking lever
305623-10
–
Position locking lever

with sleeve and spring

.
–
Mount and tighten screw

.
Guideline
Screw, locking lever M6x20 10 Nm
(7.4 lbf ft)
Loctite
®
243™
16.5.6 Installing shift drum locating
305620-10
–
Press locking lever

down and position shift drum locating.
Info
The flat surfaces

of the shift drum locating are not symmetric.
305621-10
– Release the locking lever.
–
Mount and tighten screw

.
Guideline
Screw, shift drum locating M6x30 10 Nm
(7.4 lbf ft)
Loctite
®
243™
16.5.7 Installing shift shaft
305618-11
–
Slide shift shaft

with the washer into the bearing seat.
–
Push sliding plate

away from the shift drum locating

. Insert the shift shaft
all the way.
– Let the sliding plate engage in the shift drum locating.
– Shift through the transmission.
16.5.8 Installing the starter drive
305617-11
–
Mount the two needle bearings

and the woodruff key

.
