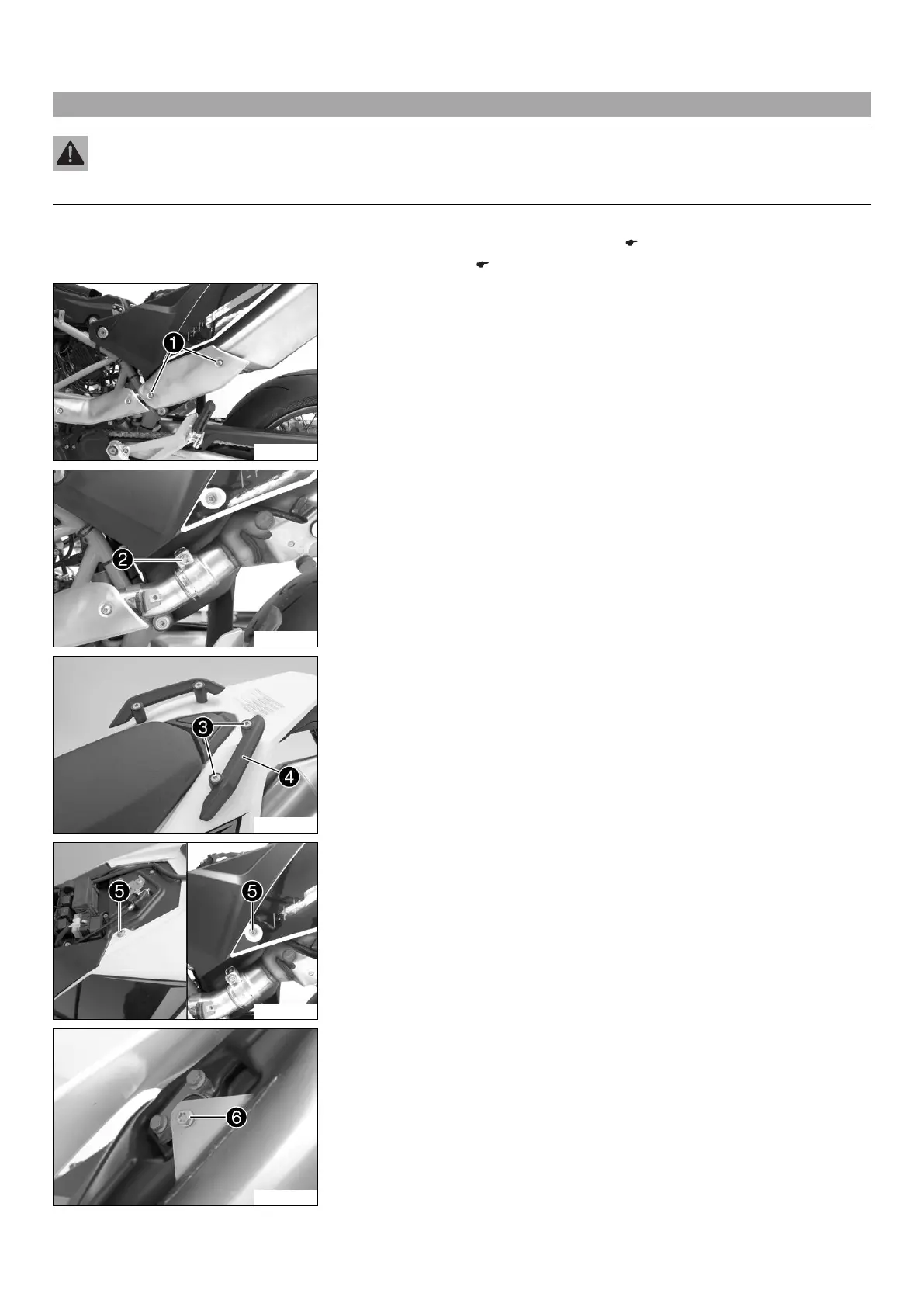

9.3 Removing the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
Preparatory work
– Raise the motorcycle with the work stand. ( p. 11)
– Remove the seat. ( p. 61)
G00812-12
Main work
–
Remove screws

.
– Remove the exhaust heat guard.
G00814-11
–
Loosen screw

.
G00821-12
–
Remove screws

.
–
Remove grab handle

.
G00816-10
–
Remove screws

.
– Lift the rear fairing.
G00817-10
–
Remove screws

.
– Remove the main silencer.
