KTM 2014 690 SMC R EU - Installing the Engine

16 ENGINE 107
G00844-10
–

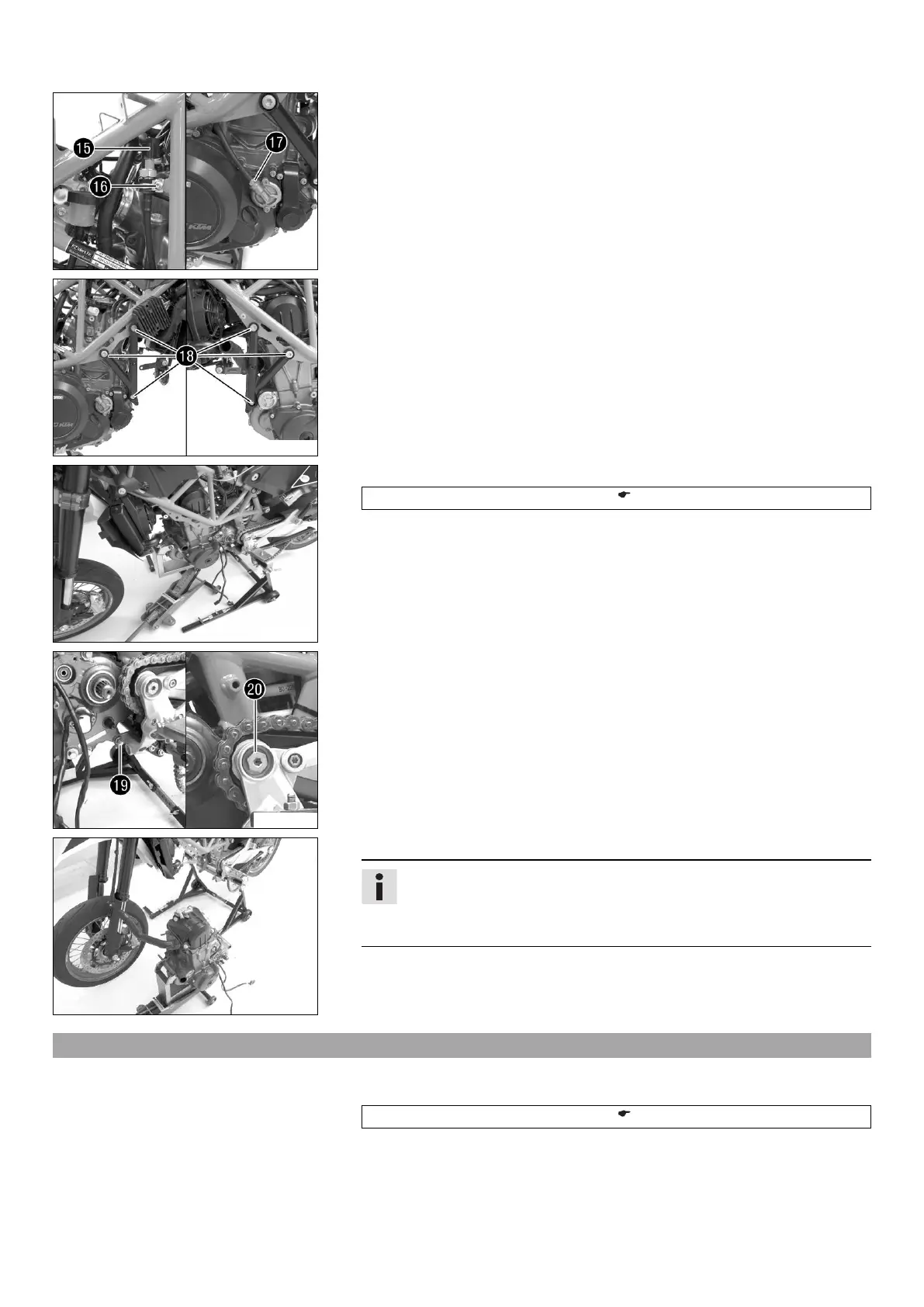

Detach connector

of the oil pressure sensor. Remove screw

.
–
Release connection

. Remove the line with the oil pressure sensor.
G00845-10
–
Remove screws

. Remove the engine bearer.
G00846-10
– Position the floor jack under the engine and fix it using the special tool.
Floor jack attachment (75029055000) ( p. 235)
G00847-10
–
Remove nut

and screw

of the lower engine bracket.
G00848-10
– Lower the engine.
Info
You should have an assistant for this step.
Make sure that the motorcycle is sufficiently secured against falling over.
Protect the frame and attachments from damage.
16.2 Installing the engine
Preparatory work
– Raise the engine onto the special tool and fix it.
Floor jack attachment (75029055000) ( p. 235)
