8 SHOCK ABSORBER, SWINGARM 44
200580-10
–

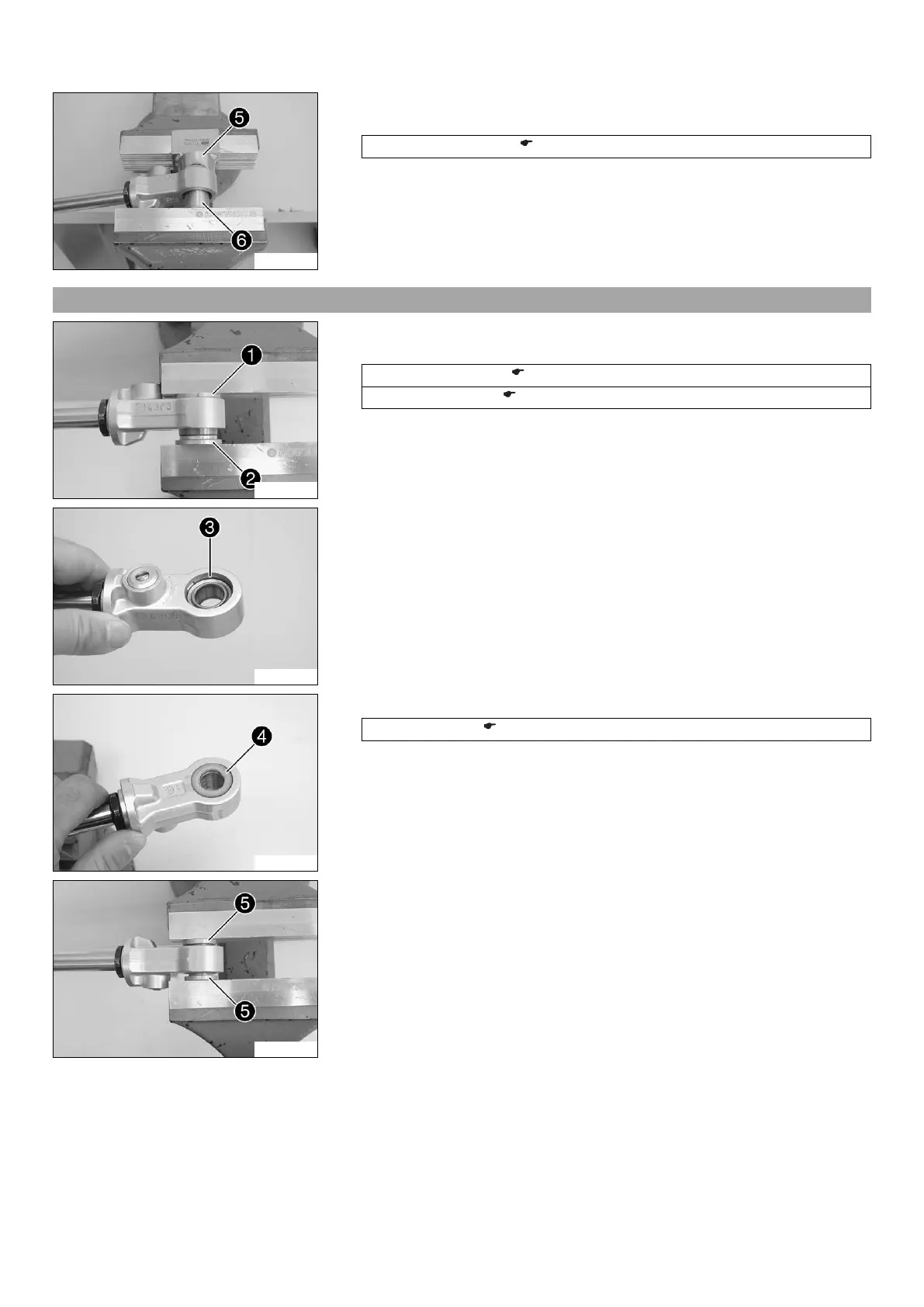

Place special tool
underneath and press out the heim joint with special
tool
.
Pressing tool (T1207S) ( p. 238)
8.17 Installing the heim joint
200581-10
–
Place special tool
underneath and press in the heim joint as far as the center
using special tool
.
Pressing tool (T1206) ( p. 238)
Pressing tool (T129) ( p. 239)
200579-11
–
Mount lock rings
on both sides.
200578-11
–
Mount seal rings
on both sides and grease them.
Lubricant (T158) ( p. 226)
200582-10
–
Press in both collar sleeves
of the heim joint.
