21 IGNITION 188
21.3 Ignition coil – checking the secondary winding
Condition
Ignition coil cylinder 1 is disconnected.
Spark plug connector cylinder 1 has been removed.
Preparatory work
– Remove the seat. ( p. 61)
– Take off the side cover. ( p. 62)
600739-13
Main work

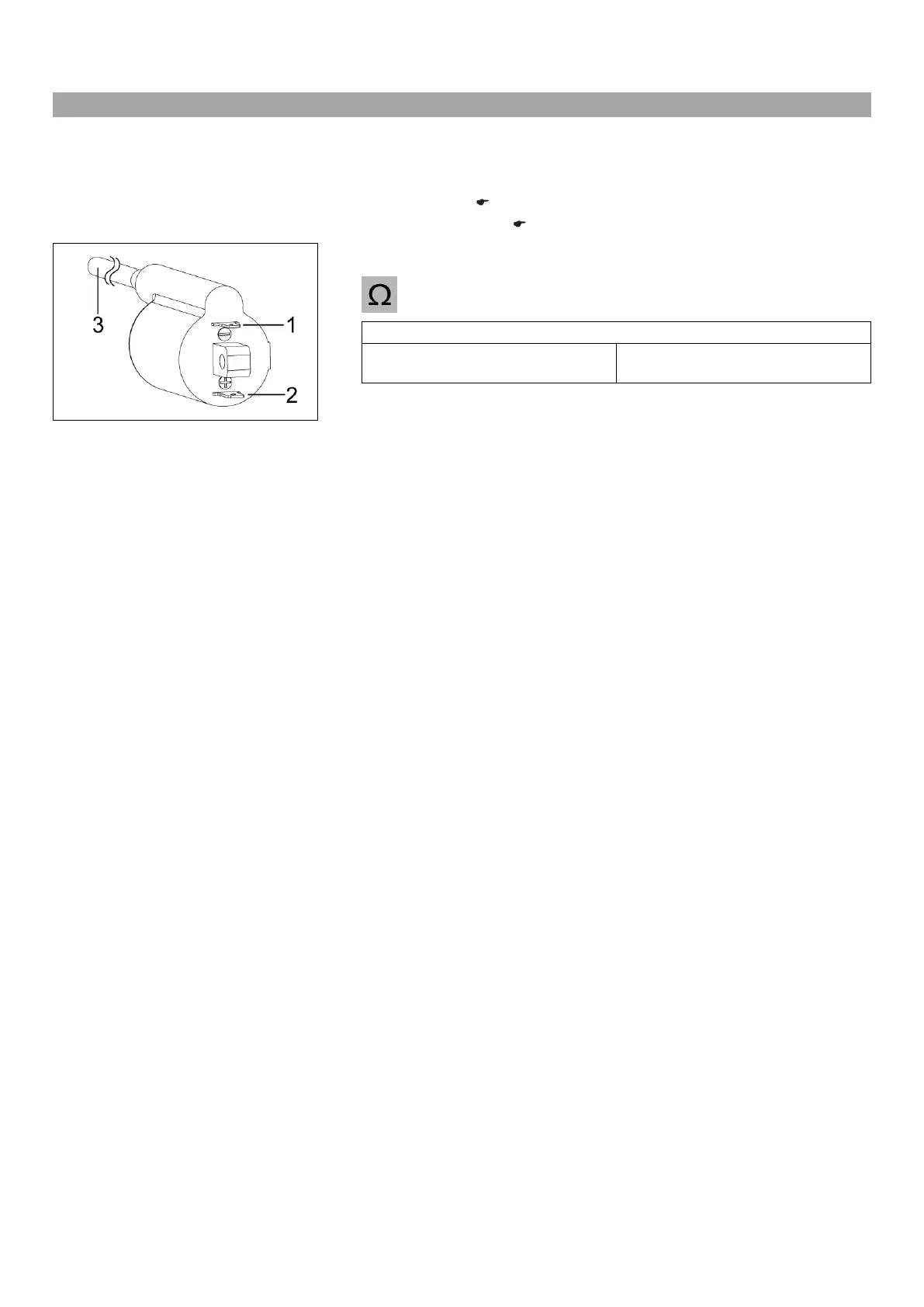

Ignition coil cylinder 1 – check the secondary winding resistance
– Measure the resistance between the specified points.
Ignition coil pin 2 (+) – Ignition coil pin 3
Ignition coil
Resistance of secondary winding
at: 20 °C (68 °F)
10.4… 15.6 kΩ
» If the displayed value does not correspond to the nominal value:
– Change the ignition coil.
