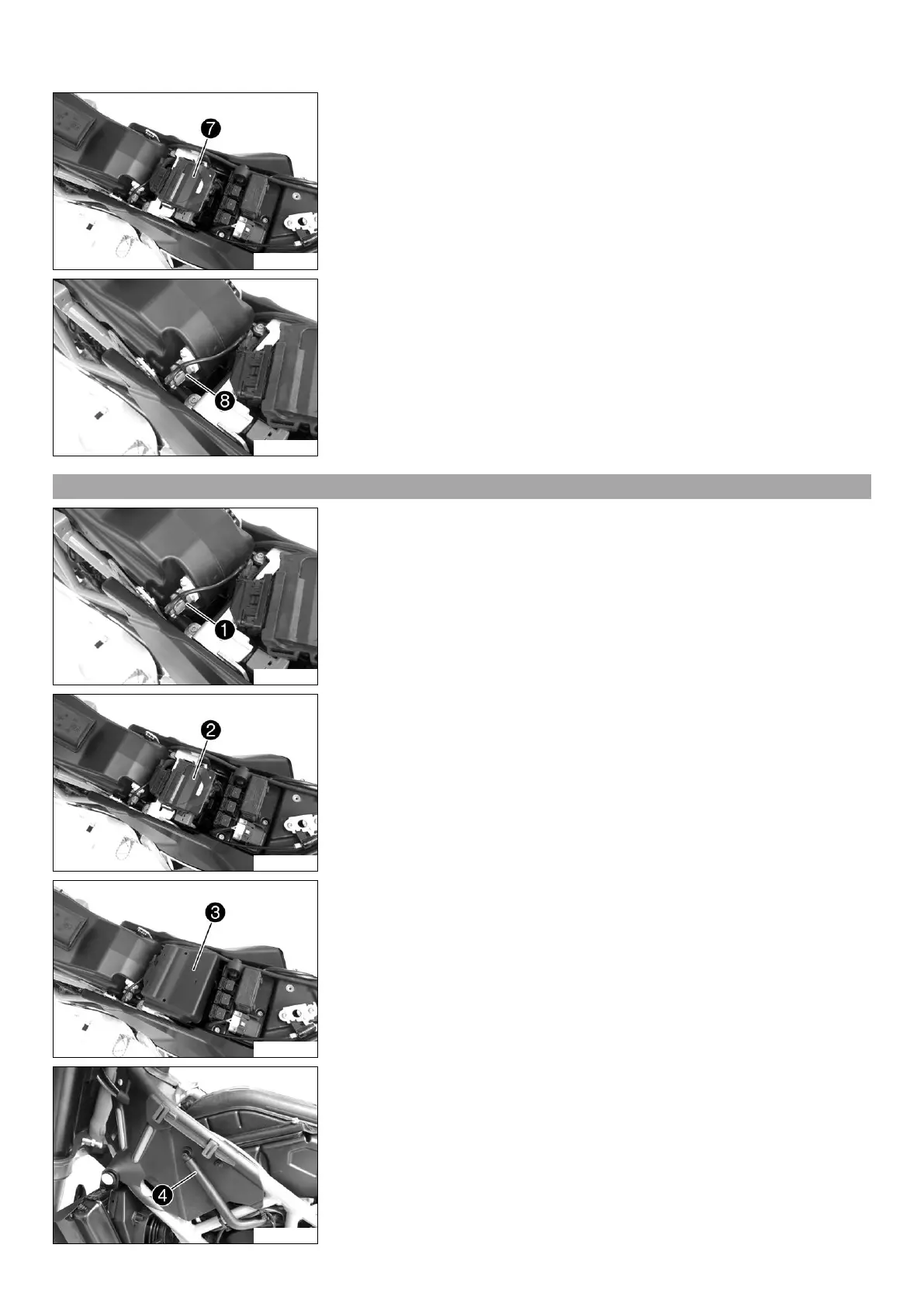

Take off control unit

and hang to the side.
G00799-10
– Remove the cable binder.
–
Disconnect connector

of the intake air temperature sensor.
– Raise the air filter box at the rear.
– Take off the air filter box.
10.4 Installing the air filter box
G00799-11
Main work
– Position the air filter box.
–
Plug in connector

of the intake air temperature sensor and secure with the
cable binder.
G00798-11
–
Position control unit

.
G00797-11
–
Mount battery cover

.
G00796-11
–
Route vent hose

without bends and mount.
