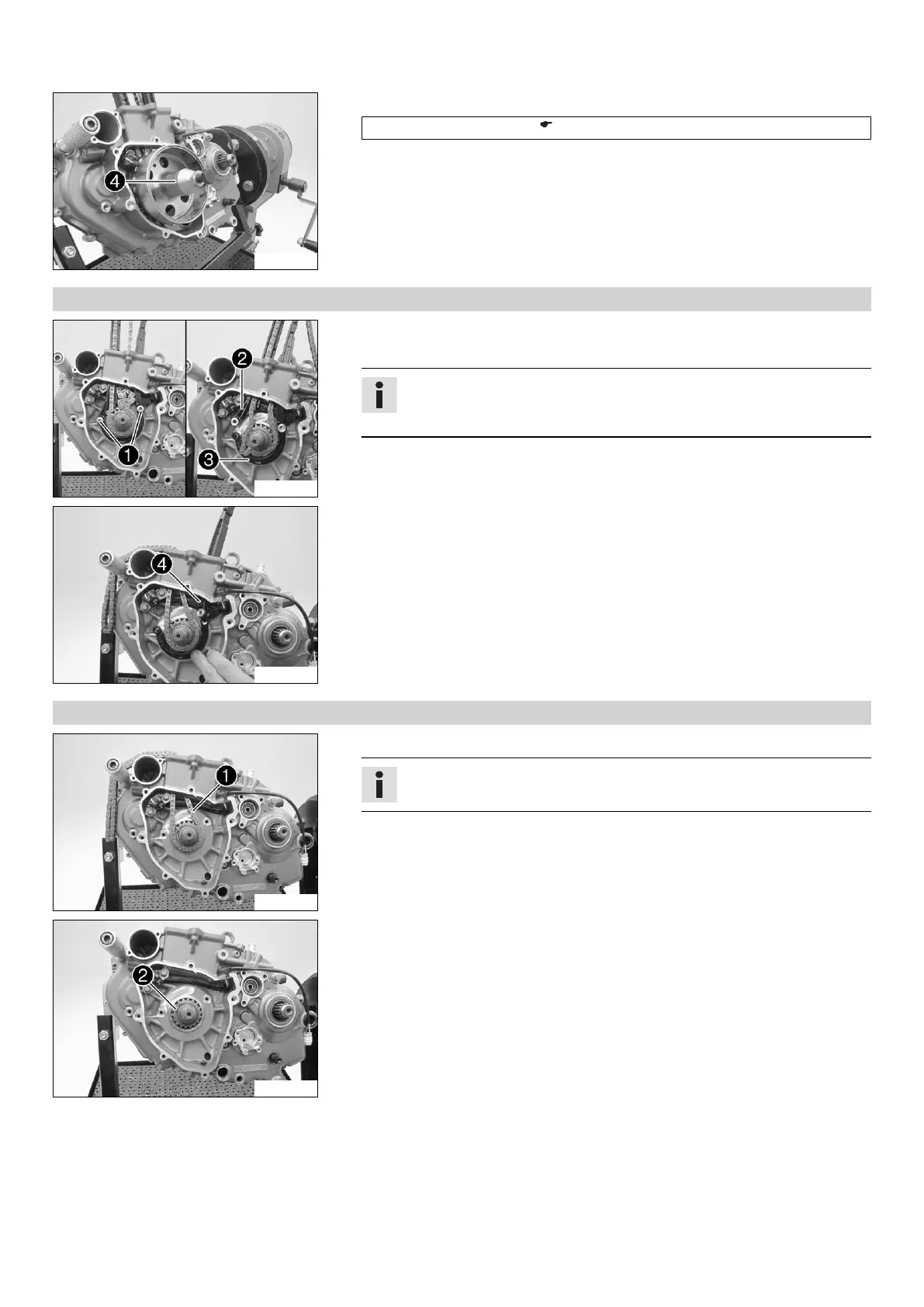

16 ENGINE 117
305562-10
–
Mount the special tool

on the rotor.
Extractor (58429009000) ( p. 229)
– Hold it tight using the special tool and pull off the rotor by turning the screw in.
– Remove the special tool.
16.3.18 Removing the timing chain rails
305565-10
–
Remove screws

.
–
Pull the timing chain guide rails

out of the timing chain securing guide

.
Info
The support bushing is plugged into the timing chain securing guide
through the timing chain guide rails.
– Remove the timing chain guide rails upward out of the timing chain shaft.
305566-10
– Hold the timing chain securing guide tight and pull the timing chain tensioning
rail

out of the timing chain securing guide.
– Remove the timing chain tensioning rail upward out of the timing chain shaft.
– Remove the timing chain securing guide.
16.3.19 Removing the timing chain and timing chain sprocket
305569-10
–
Slip out timing chain

.
Info
If the timing chain will be used again, mark the direction of travel.
305570-10
–
Take off lock ring

.
