16 ENGINE 169

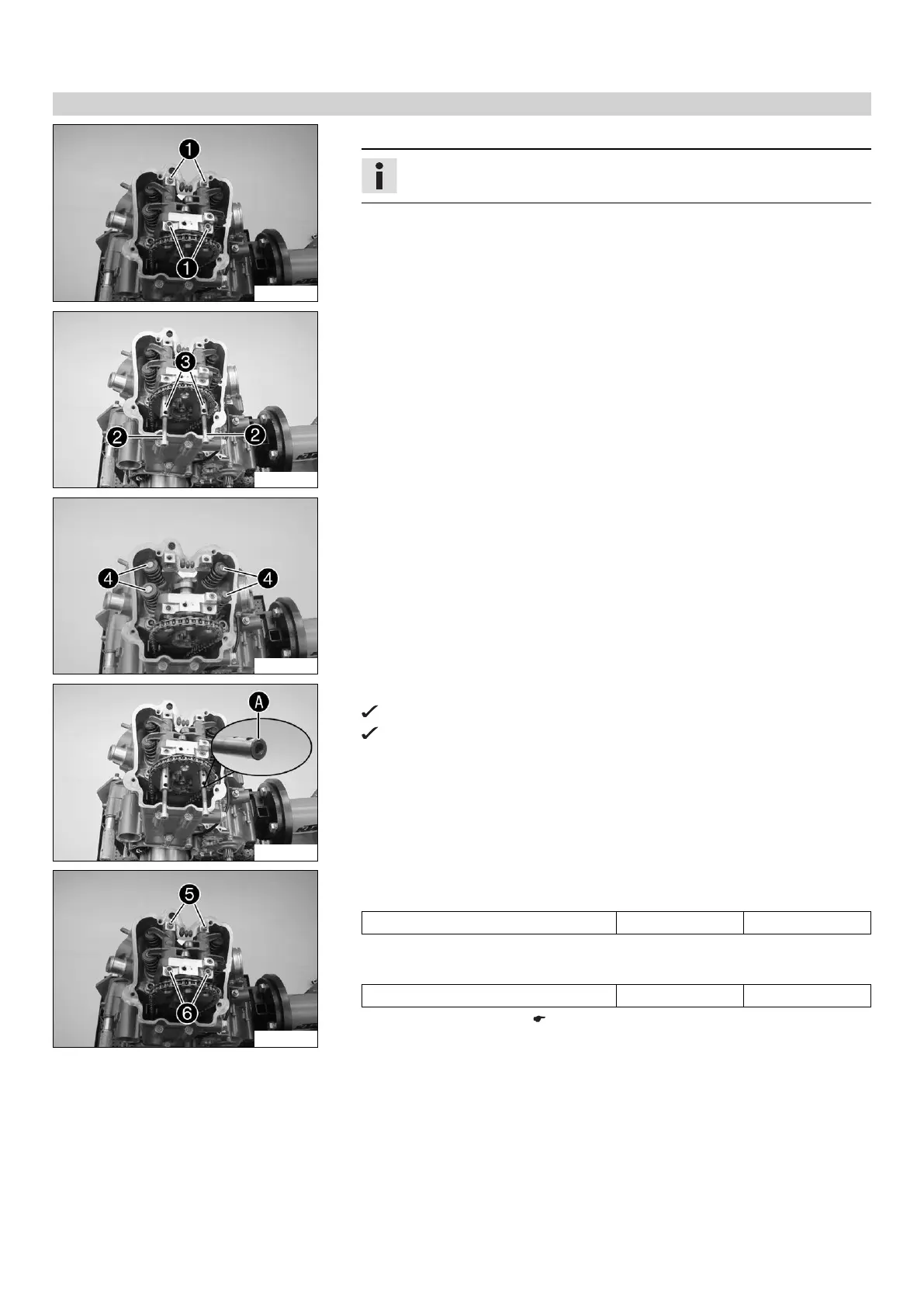

16.5.25 Adjusting the valve clearance
305535-10
Remove screws
.
Info
Make sure that the crankshaft is at top dead center.
305536-10
Screw suitable screws
into the rocker arm shafts
.
Remove the rocker arm shafts and take off the rocker arm.
305538-10
Remove shims
and set them down according to the installation position.
Correct the shims as indicated by the results of the valve clearance check.
Insert suitable shims.
305537-10
Position the rocker arms and mount the rocker arm shafts.
The tapped hole of the rocker arm shaft faces outward.
Drill hole
and the flat surface face upward.
305535-11
Mount and tighten screws
.
Guideline
Screw, rocker arm shaft M6x30 12 Nm (8.9 lbf ft)
Mount and tighten screws
.
Guideline
Screw, rocker arm shaft M6x40 12 Nm (8.9 lbf ft)
Check the valve clearance. ( p. 168)
