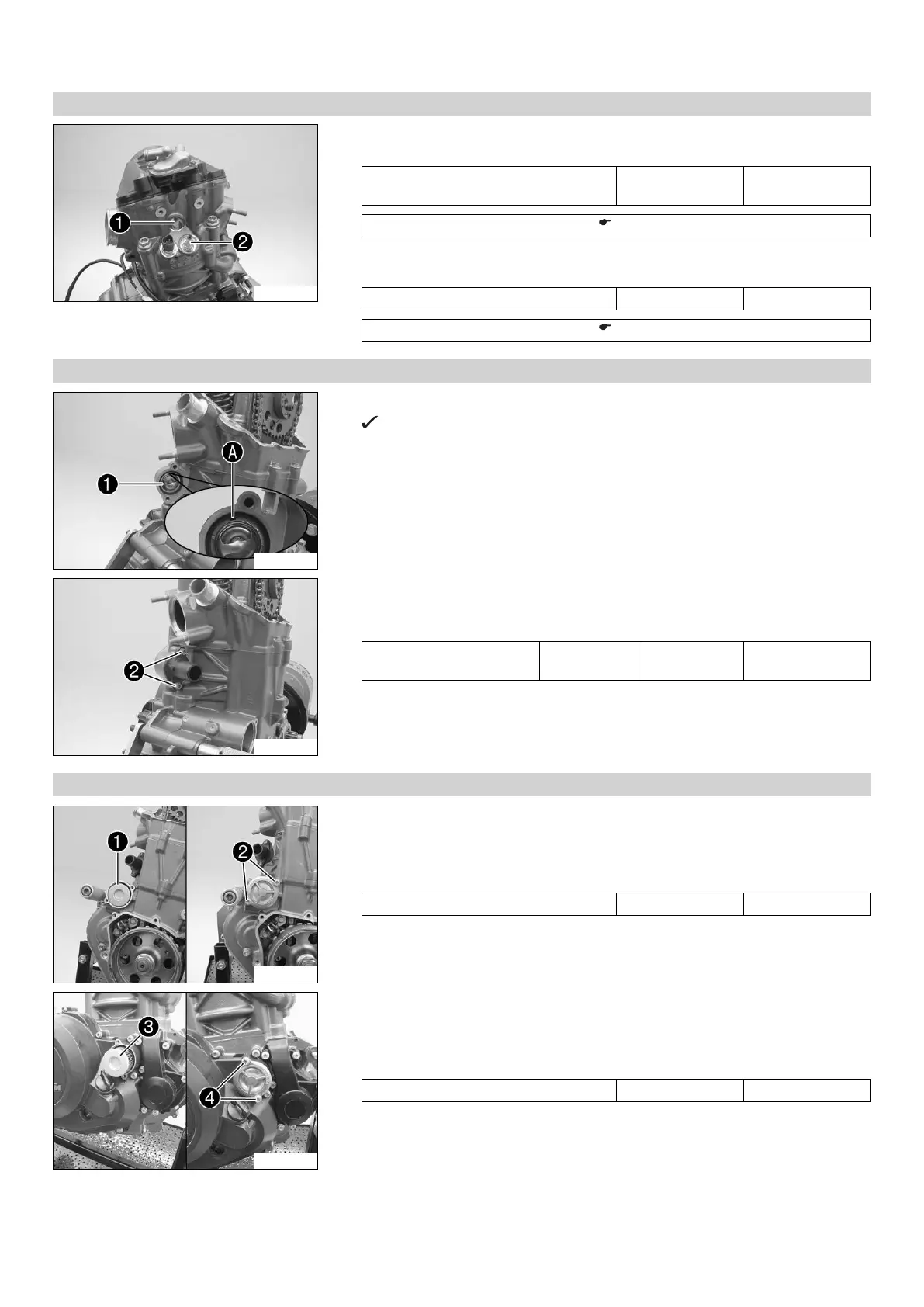

16 ENGINE 170
16.5.26 Installing the spark plugs
305516-10
–
Mount and tighten spark plug

using the special tool.
Guideline
Spark plug inside M12x1.25 18 Nm
(13.3 lbf ft)
Spark plug wrench (75029172000) ( p. 236)
–
Mount and tighten spark plug

using the special tool.
Guideline
Spark plug outside M10x1 11 Nm (8.1 lbf ft)
Spark plug wrench (75029172000) ( p. 236)
16.5.27 Installing the thermostat
305529-10
–
Position thermostat

with the gasket.
Drill hole

must face upward.
305530-10
– Position the thermostat case.
–
Mount and tighten screws

.
Guideline
Screw, thermostat case M6x20 10 Nm
(7.4 lbf ft)
Loctite
®
243™
16.5.28 Installing the oil filter
305527-10
–
Insert oil filter

.
– Oil the O-ring of the oil filter cover and mount it with the oil filter cover.
–
Mount and tighten screws

.
Guideline
Screw, oil filter cover M5x16 6 Nm (4.4 lbf ft)
305550-10
–
Insert oil filter

.
– Oil the O-ring of the oil filter cover and mount it with the oil filter cover.
–
Mount and tighten screws

.
Guideline
Screw, oil filter cover M5x16 6 Nm (4.4 lbf ft)
