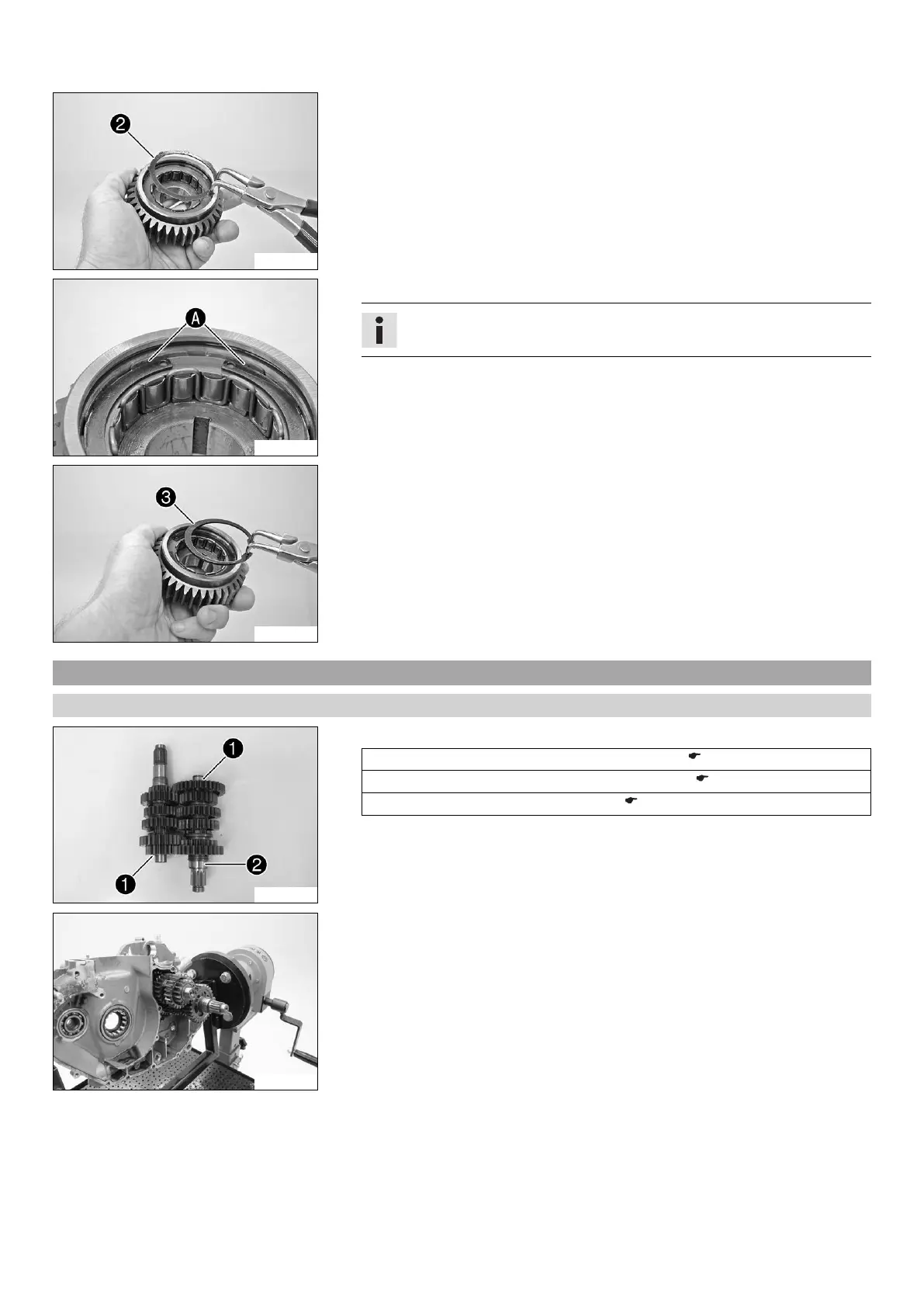

KTM 2014 690 SMC R EU - Assembling the Engine; Installing the Transmission Shafts

16 ENGINE 154
300128-11
–
Install the expansion ring

.
300130-10
–
Make sure that all lugs of the expansion ring locate in the slits

of the freewheel.
Info
If necessary, use a screwdriver to ease them in.
300127-11
–
Insert the lock ring

into the groove with suitable pliers and check that it is
seated correctly.
16.5 Assembling the engine
16.5.1 Installing the transmission shafts
305652-10
– Clamp the right section of the engine case.
Holder for engine assembly stand (75012001070) ( p. 232)
Support for engine assembly stand (75012001060) ( p. 232)
Engine assembly stand (61229001000) ( p. 232)
–
Make sure that both stop disks

are installed.
–
Mount the inner bearing race

on the countershaft.
305642-11
– Oil all bearings.
– Assemble the two transmission shafts and slide them into the bearing seats
together.
