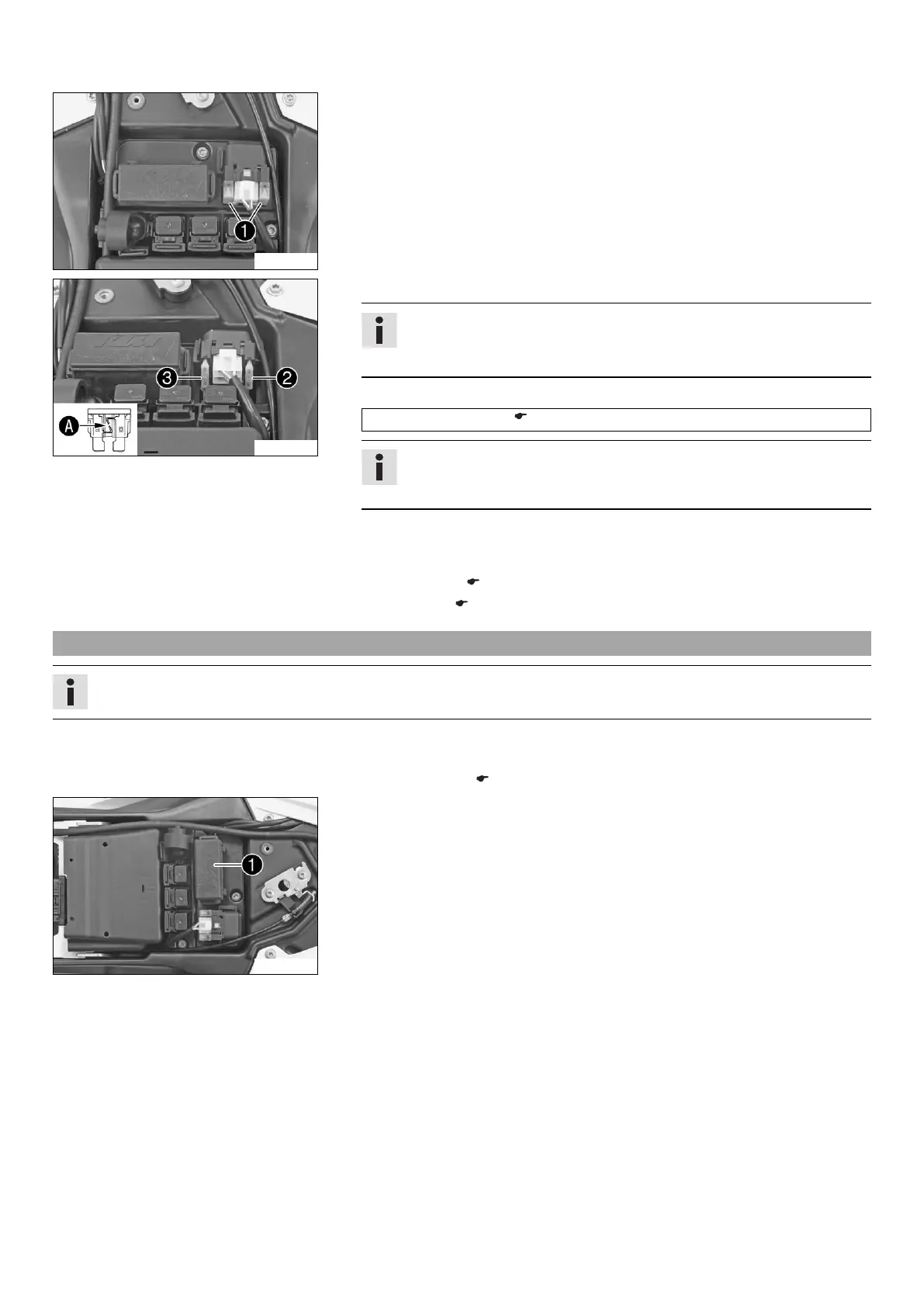

KTM 2014 690 SMC R EU - Changing Fuses of Individual Power Consumers

13 WIRING HARNESS, BATTERY 86
102006-10
Main work
–
Remove protection covers

.
102007-10
–
Remove a defective main fuse

with needle nose pliers.
Info
A defective fuse is indicated by a burned-out fuse wire

.
A reserve fuse

is located in the starter relay.
– Install a new main fuse.
Fuse (58011109130) ( p. 194)
Info
Insert a new replacement fuse into the starter relay to have it available when
needed.
– Check the functioning of the electrical equipment.
– Mount the protection covers.
Finishing work
– Mount the seat. ( p. 62)
– Set the clock. ( p. 99)
13.9 Changing fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 61)
102012-10
Main work
–
Open fuse box cover

.
