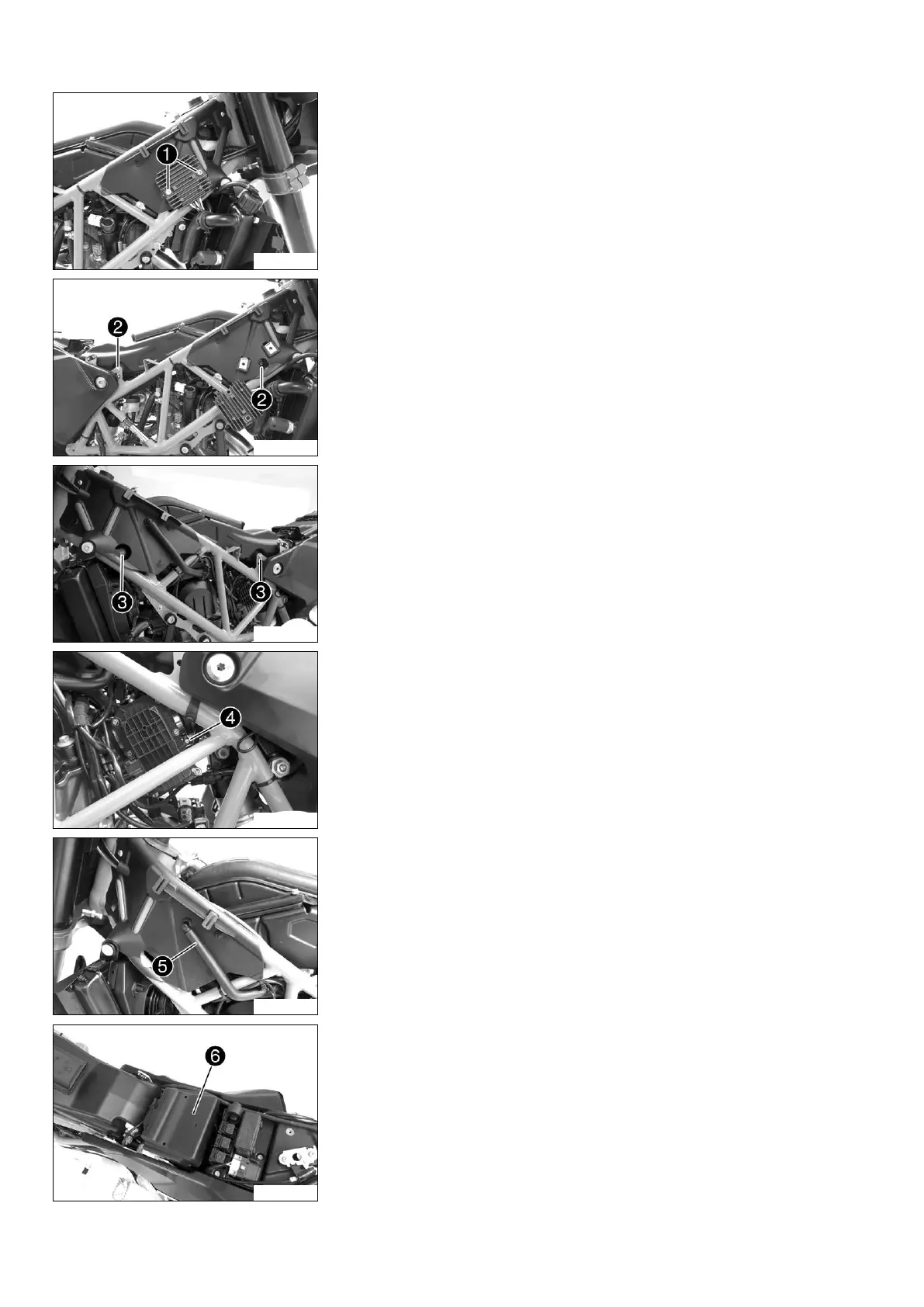

10 AIR FILTER 58

G00792-10

Main work

–

Remove screws



.

– Take off the voltage regulator and hang it to the side in a de-energized state.

G00793-10

–

Remove screws



.

G00794-10

–

Remove screws



.

G00795-10

–

Loosen hose clip



.

G00796-10

–

Detach vent hose



.

G00797-10

–

Remove battery cover



.
