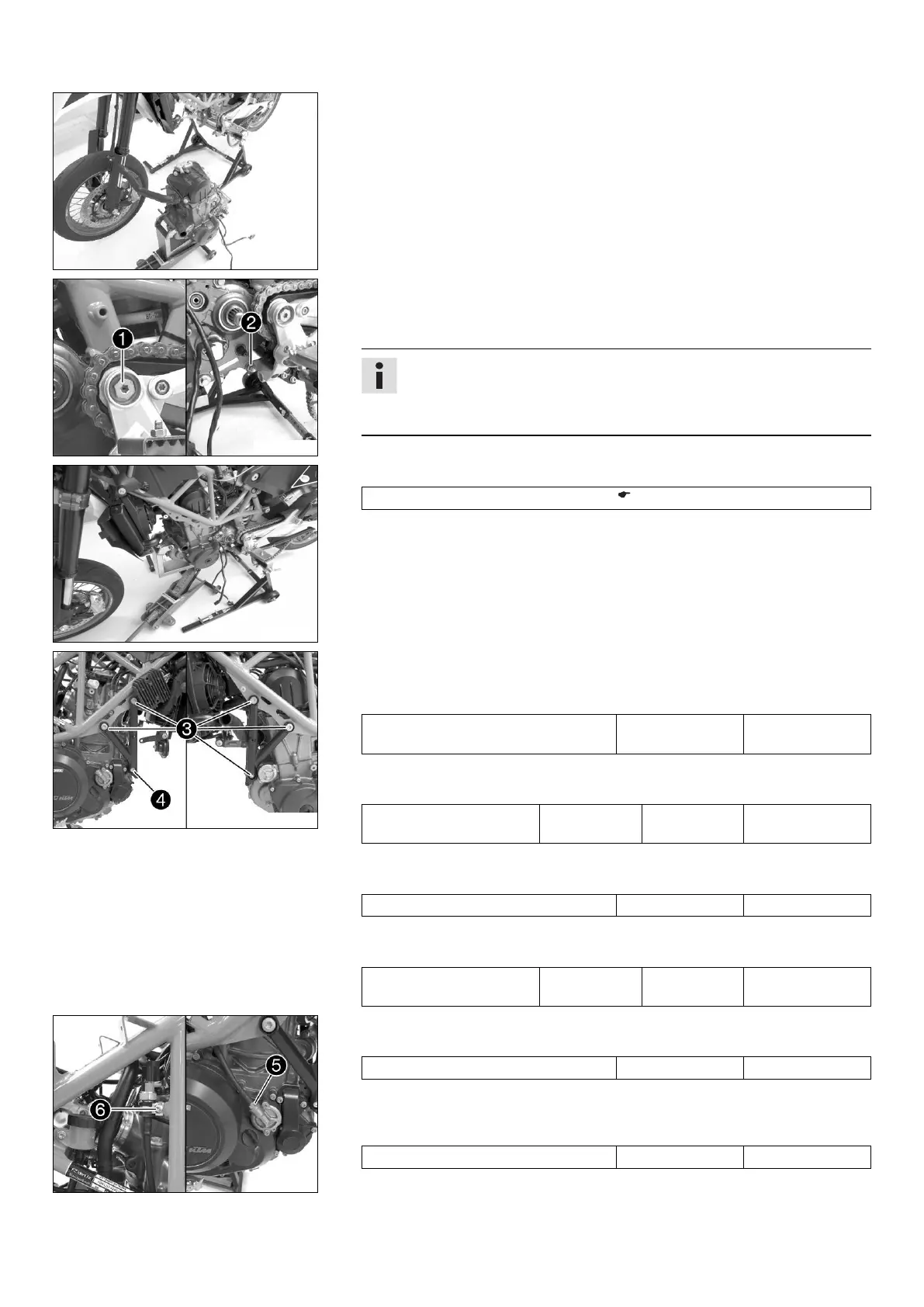

16 ENGINE 108
G00848-10
Main work
– Position the engine in the frame.
G00847-11
– Mount swingarm pivot.
–
Mount the screw of swingarm pivot
but do not tighten yet.
–
Mount screw connection
of the lower engine attachment but do not tighten yet.
Info
You should have an assistant for this step.
Make sure that the motorcycle is sufficiently secured against falling over.
Protect the frame and attachments from damage.
G00846-10
– Remove the floor jack with the special tool.
Floor jack attachment (75029055000) ( p. 235)
G00845-11
– Position the engine bearer.
–
Mount and tighten screws
.
Guideline
Screw, engine bearer on frame M10 45 Nm
(33.2 lbf ft)
–
Mount and tighten fitting
.
Guideline
Engine carrying screw M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
–
Tighten the screw of swingarm pivot
.
Guideline
Screw, swingarm pivot M12 80 Nm (59 lbf ft)
–
Tighten fitting
of the lower engine bracket.
Guideline
Engine carrying screw M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
G00844-11
–
Position the line with the oil pressure sensor. Mount and tighten connection
.
Guideline
Oil pressure sensor line M10x1 10 Nm (7.4 lbf ft)
–
Position the clamp of the oil line. Mount and tighten screw
. Plug in the connec-
tor.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
