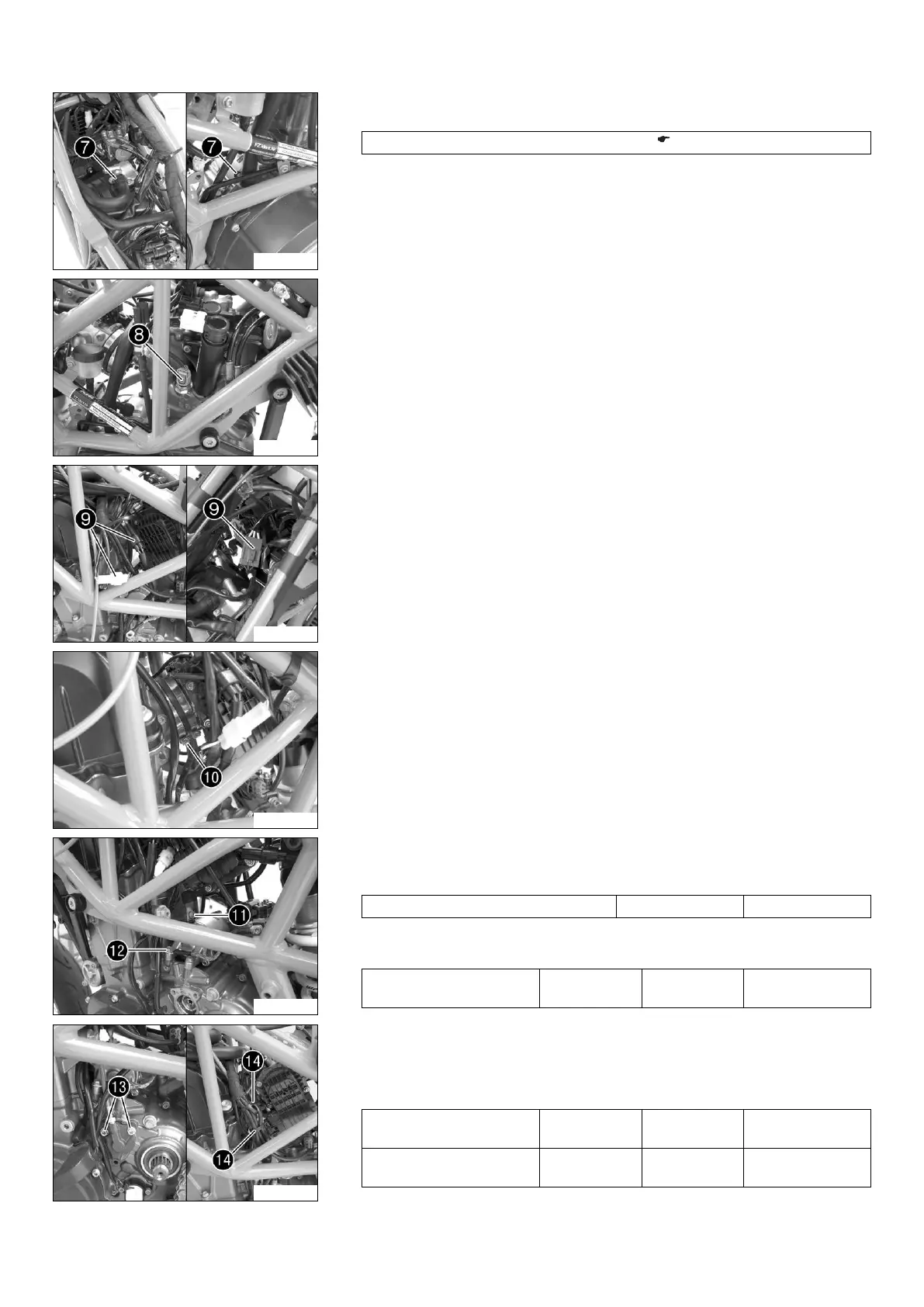

– Position the hoses of the engine breather, the SAS, and the oil return line. Mount
the spring band clamp

using the special tool.
Pliers for spring band clamp (60029057100) ( p. 231)
G00842-11
– Attach the spark plug connectors.
–
Plug in the connector of the engine coolant temperature sensor

.
G00841-11
–
Connect plug-in connectors

of the gear position sensor, crankshaft position sen-
sor, and alternator.
G00840-11
– Position the throttle valve body.
–
Position and tighten hose clip

.
G00839-11
–
Position the electrical connection

on the starter motor. Mount and tighten
screw. Mount the protection cap.
Guideline
Screw, cable on starter motor M5 3 Nm (2.2 lbf ft)
–
Position the ground wire on the starter motor. Mount and tighten screw

.
Guideline
Screw, starter motor M6x20 10 Nm
(7.4 lbf ft)
Loctite
®
243™
G00838-11
– Insert the clutch push rod.
– Position the clutch slave cylinder.
–
Mount and tighten screws

.
Guideline
Screw, clutch slave cylin-
der
M6x20 10 Nm
(7.4 lbf ft)
Loctite
®
243™
Screw, clutch slave cylin-
der
M6x35 10 Nm
(7.4 lbf ft)
–
–
Secure the cable with cable binders

.
