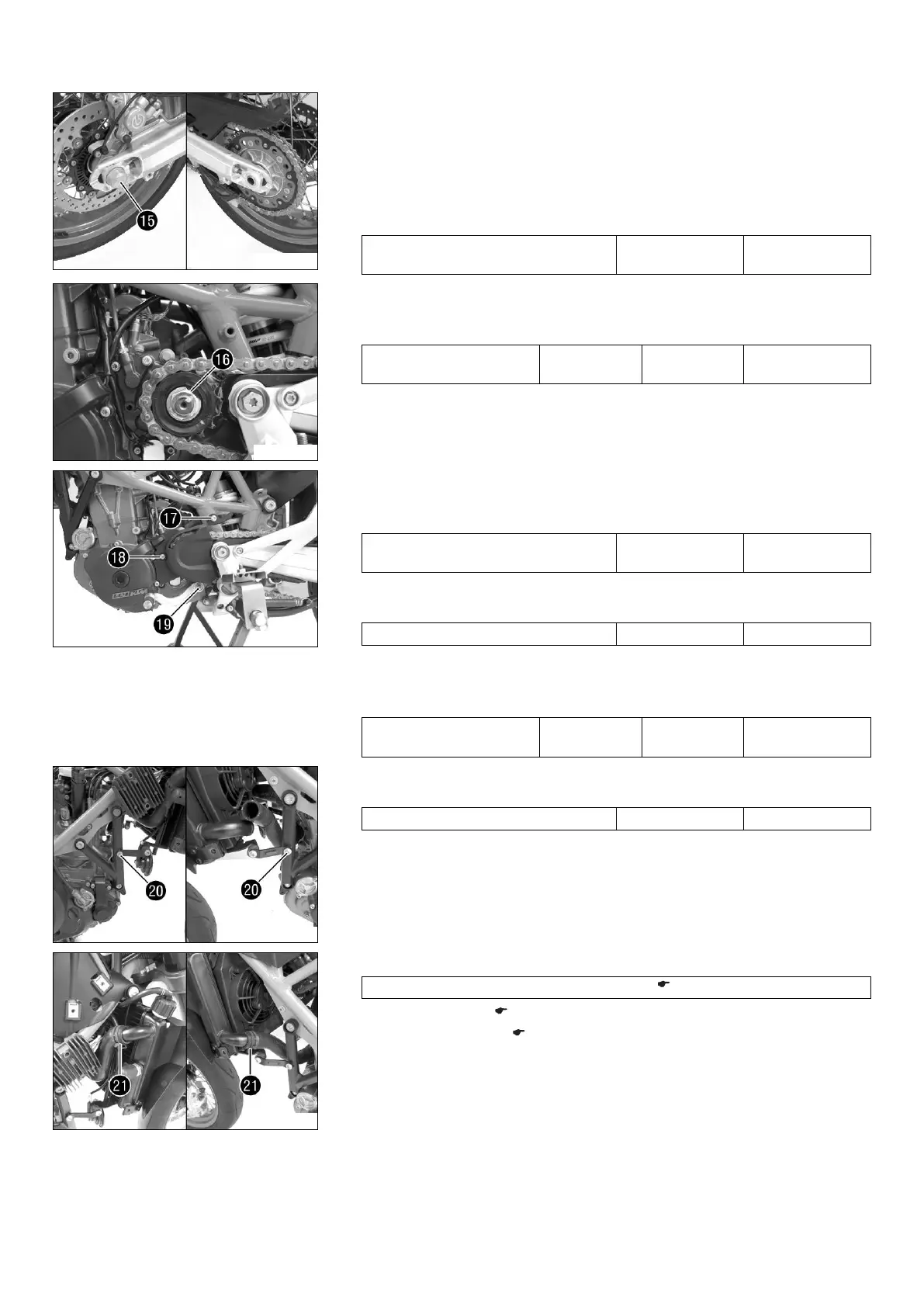

– Mount the engine sprocket with the chain.
– Position the new lock washer and mount nut but do not tighten yet.
– Position the rear wheel.
– Mount the chain adjuster and nut.
– Push the rear wheel forward so that the chain adjusters rest against the tensioning
screws, and tighten nut

.
Guideline
Nut, rear wheel spindle M25x1.5 90 Nm
(66.4 lbf ft)
G00836-11
– Have an assistant operate the rear brake.
– Tighten nut.
Guideline
Nut, engine sprocket M20x1.5 80 Nm
(59 lbf ft)
Loctite
®
243™
–
Secure the nut with lock washer

.
G00835-11
– Position the engine sprocket cover.
–
Mount and tighten screw

.
Guideline
Remaining screws, chassis M8 25 Nm
(18.4 lbf ft)
–
Mount and tighten screw

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the shift lever.
–
Mount and tighten screw

.
Guideline
Screw, shift lever M6 14 Nm
(10.3 lbf ft)
Loctite
®
243™
G00834-11
–
Mount and tighten screw

.
Guideline
Screw, upper radiator bracket M6 10 Nm (7.4 lbf ft)
G00833-11
–
Position the radiator hoses. Mount the spring band clamps

.
Pliers for spring band clamp (60029057100) ( p. 231)
– Install the manifold. ( p. 54)
– Disconnect the battery. ( p. 83)
