6 FORK, TRIPLE CLAMP 25
202321-10

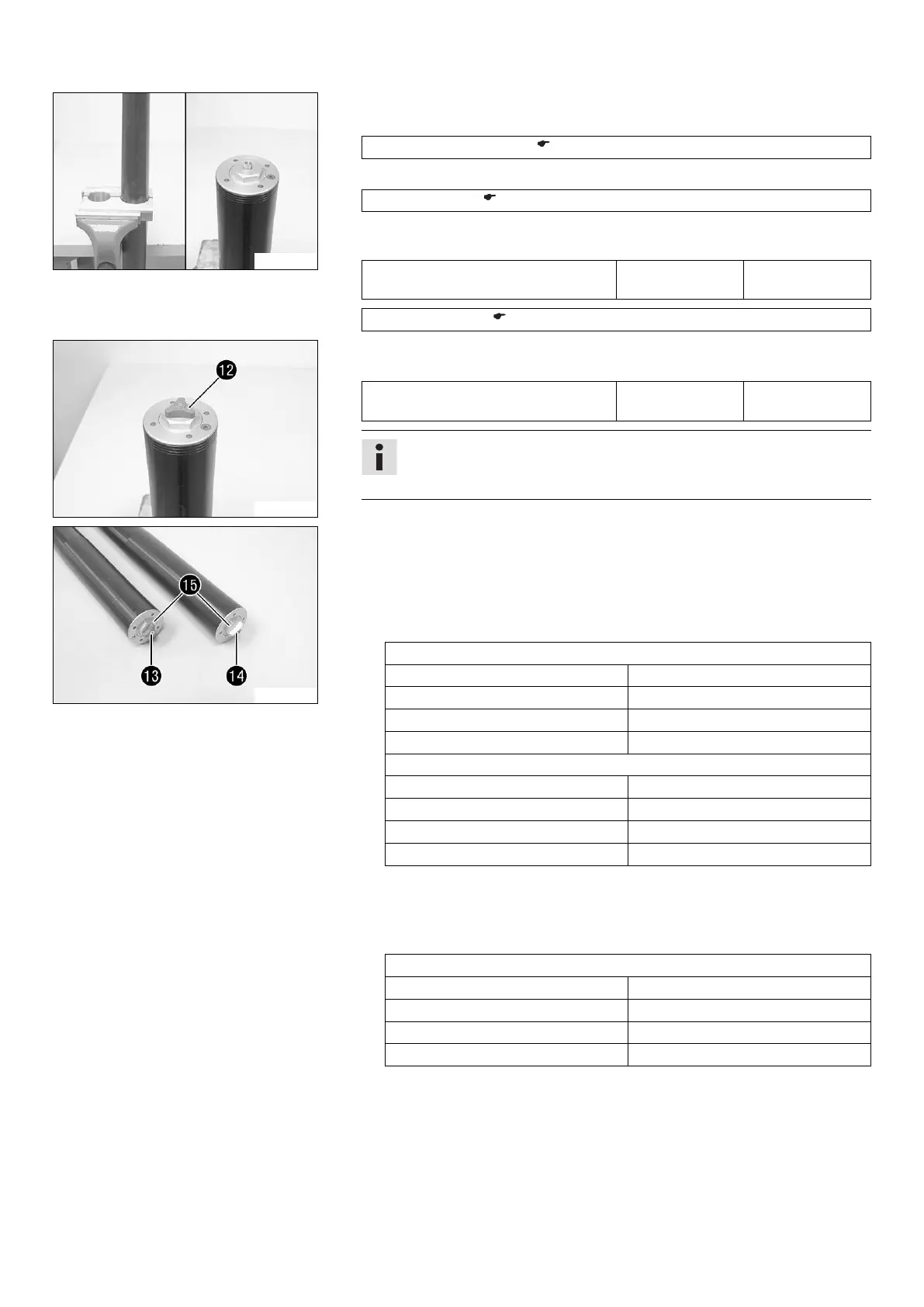

– Push the outer tube upward.
– Clamp the fork in the area of the lower triple clamp.
Clamping stand (T1403S) ( p. 240)
– Lubricate the O-ring of the Preload Adjuster.
Lubricant (T511) ( p. 226)
– Screw on the Preload Adjuster and tighten.
Guideline
Screw cover on outer tube M47x1.5 40 Nm
(29.5 lbf ft)
Pin wrench (T103) ( p. 237)
202322-10
–
Mount adjuster

; mount and tighten the screw.
Guideline
Adapter M4x0.5 1.5 Nm
(1.11 lbf ft)
Info
Compression damping side: white adjuster, axle clamp marked L.
Rebound damping side: red adjuster, axle clamp marked R.
202323-10
Alternative 1
–
Turn the adjusting screw of rebound damping

and the adjusting screw of
compression damping

clockwise as far as possible.
– Turn back counterclockwise by the number of clicks corresponding to the fork
leg type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
Compression damping
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
Full payload 10 clicks
–
Turn spring preload

clockwise all the way.
– Turn back counterclockwise by the number of turns corresponding to the fork
leg type.
Guideline
Spring preload - Preload Adjuster
Comfort 2 turns
Standard 5 turns
Sport 5 turns
Full payload 8 turns
