9. DRIVE AND DRIVEN PULLEYS
9
-
4
MX’er SYSTEM

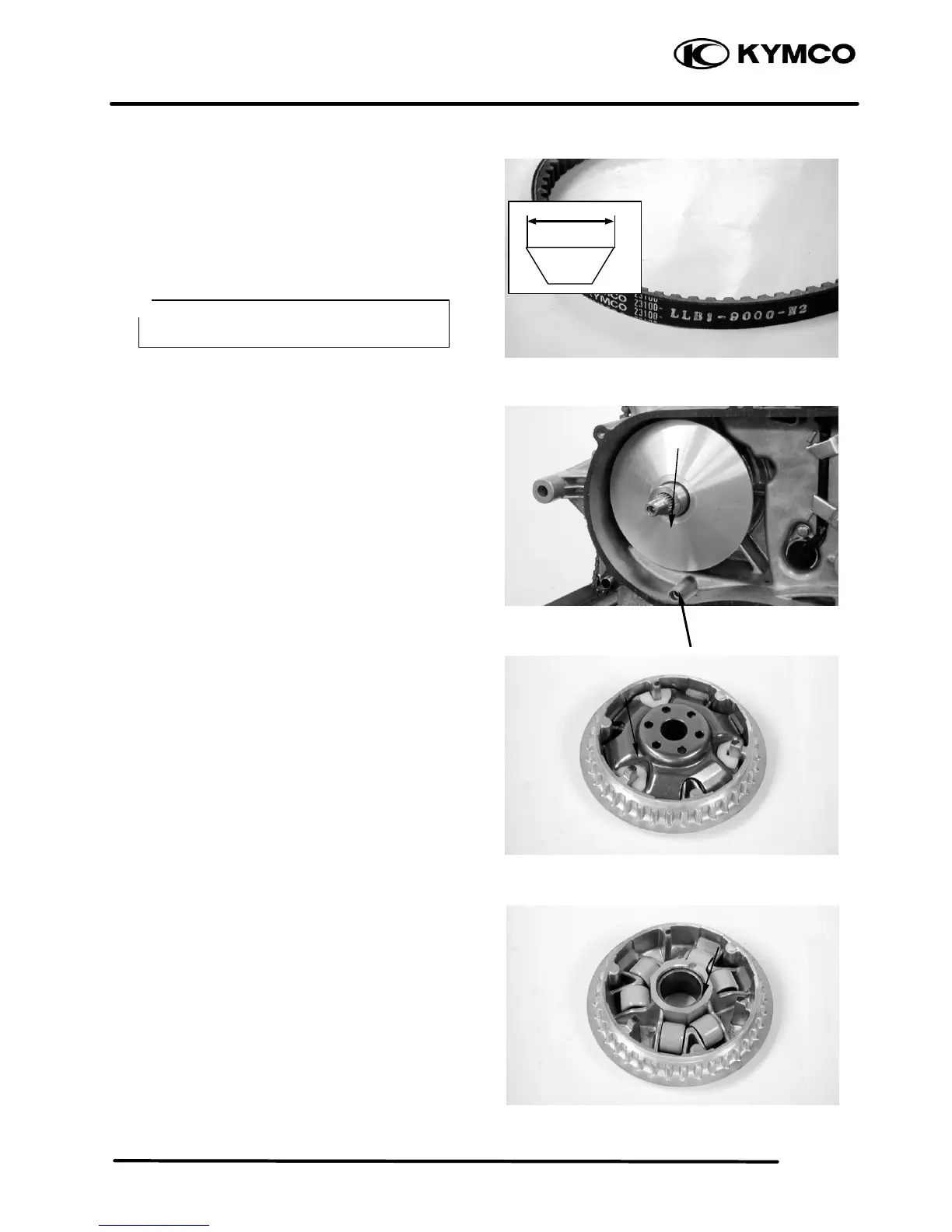

INSPECTION
Check the drive belt for cracks, separation or
abnormal or excessive wear.
Measure the drive belt width.
Service Limit: 17.0mm replace if below
Remove the movable drive face assembly.
Remove the drive pulley collar.
DISASSEMBLY
Remove the ramp plate.
Remove the weight rollers.
Drive Pulley Collar
Movable Drive Face Assembly
Ramp Plate
Weight Rollers
Use specified genuine parts for
replace-ment.
*
