KYMCO MX’er 125 - Steering System

12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12
-
12
MX’er SYSTEM

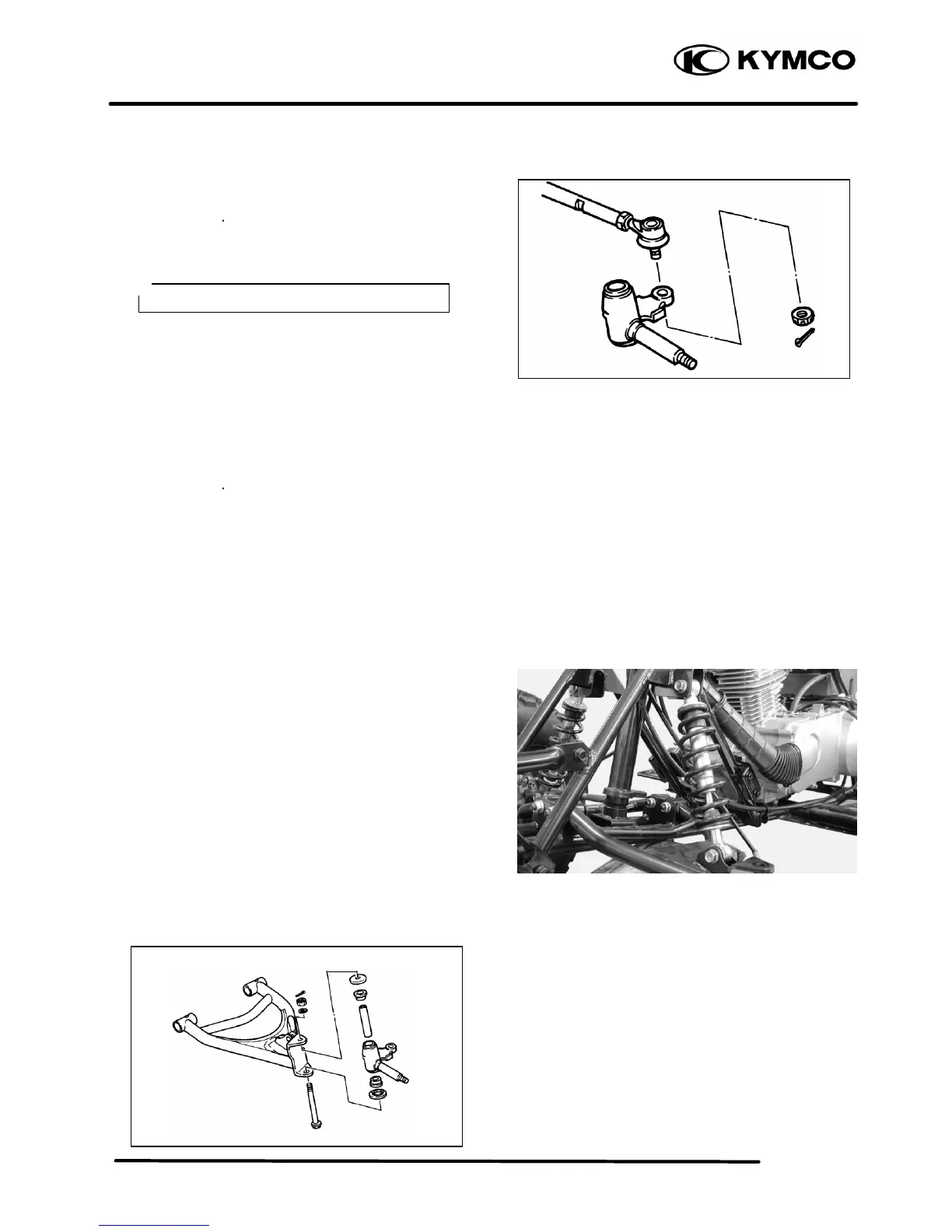

Install the tie-rod onto the steering knuckle and
tighten the nut.
Torque: 4.0 5.0kgf-m
Install the cotter pin and band ends of cotter
pin.
Install the shock absorber and tighten the upper
and lower bolts.
Torque: 3.5 4.5kgf-m
Install the brake shoe plate, wheel hub and
front wheel.
Refer to the “FRONT WHEEL
INSTALLATION” section.
STEERING SYSTEM
REMOVAL
Remove the following parts:
Seat, Front cover, Center cover and Front
fender
Refer to the “FENDERS” section in the
CHAPTER 2
Disconnect the main switch lead.
Bleed Valve
Always use a new cotter pin.
*
