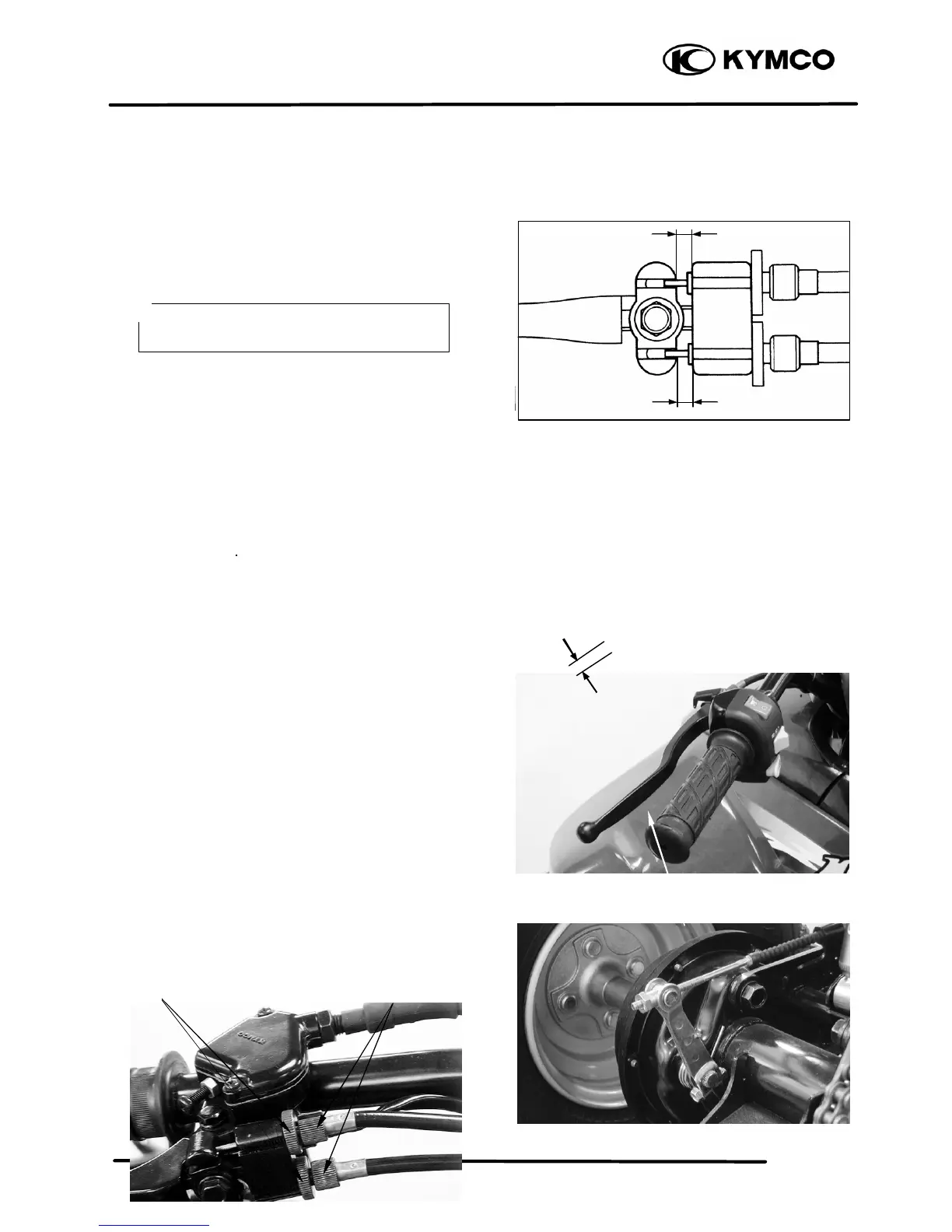

3. INSPECTION/ADJUSTMENT
3
-
10
MX’er SYSTEM
Turning adjusters out that the free play is
decreased.
The difference between both clearances should
be 2 mm or less when front brake is applied.
Tighten the lock nuts.
REAR BRAKE
Measure the rear brake lever free play.
Free Play: 10 20mm
If the free play do not fall within the limit, adjust
by turning the adjusting nut.
HEADLIGHT AIM
Turn the ignition switch ON and start the
engine.
Turn on the headlight switch.
Adjust the headlight aim by turning the headlight
aim adjusting screw.
Adjusting Nut
Lock Nuts
Adjusters
Make sure that the
brake does not drag
after adjusting.
*
