MX’er SYSTEM

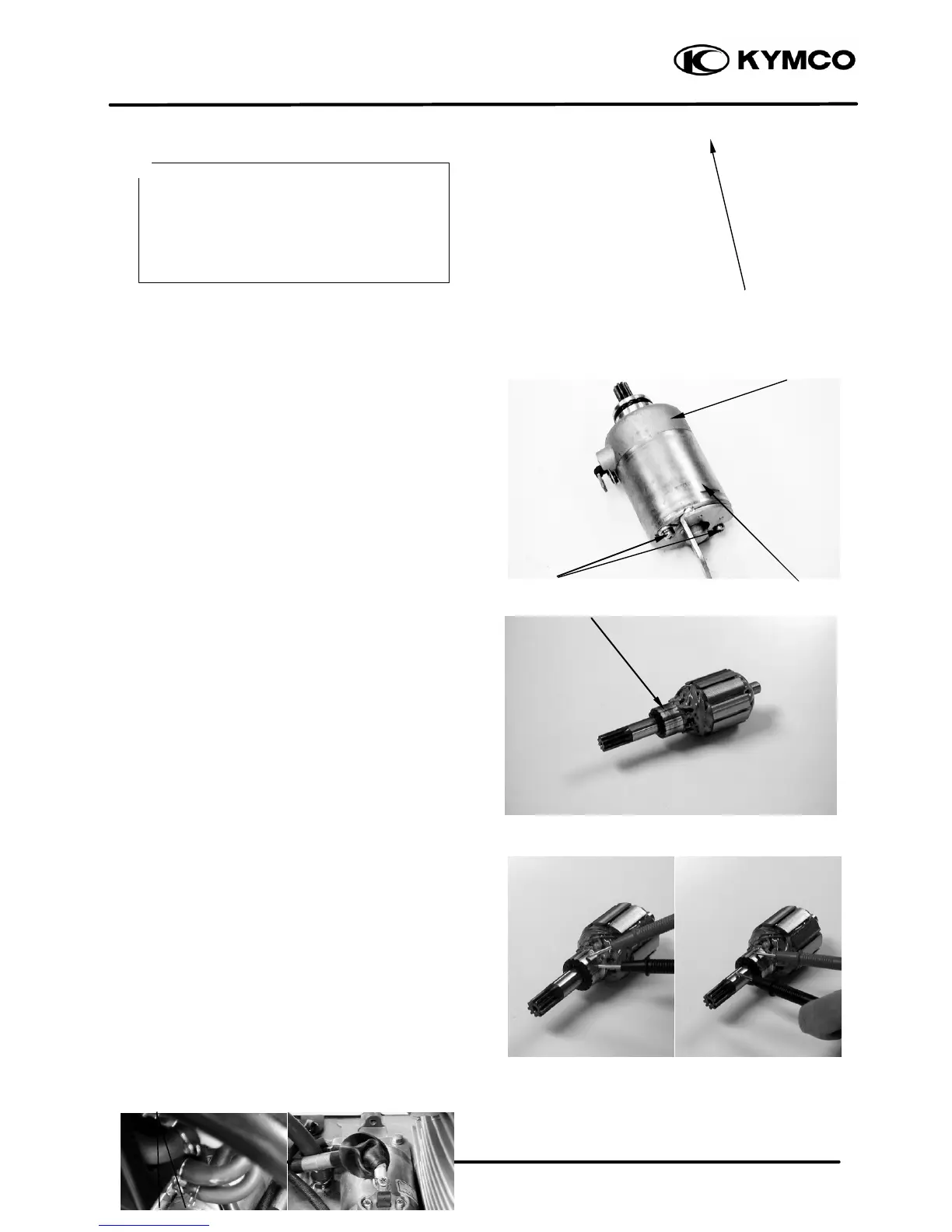

STARTER MOTOR
REMOVAL
Remove the two starter motor mounting bolts
and the motor.
Remove the waterproof rubber jacket and
disconnect the starter motor cable connector.
DISASSEMBLY
Remove the two starter motor case screws,
front cover, motor case and other parts.
INSPECTION
Inspect the removed parts for wear, damage or
discoloration and replace if necessary.
Clean the commutator if there is metal powder
between the segments.
Check for continuity between pairs of the
commutator segments and there should be
continuity.
Also, make a continuity check between
individual commutator segments and the
armature shaft. There should be no continuity.
STARTER MOTOR CASE
Before removing the starter motor, turn the
ignition switch OFF and remove the battery
ground. Then, turn on the ignition switch
and push the starter button to see if the
starter motor operates properly.
