KYMCO MX’er 125 - Engine Oil;Oil Filter; Oil Pump

4. LUBRICATION SYSTEM
4
-
3
MX’er SYSTEM
Nut
Flywheel

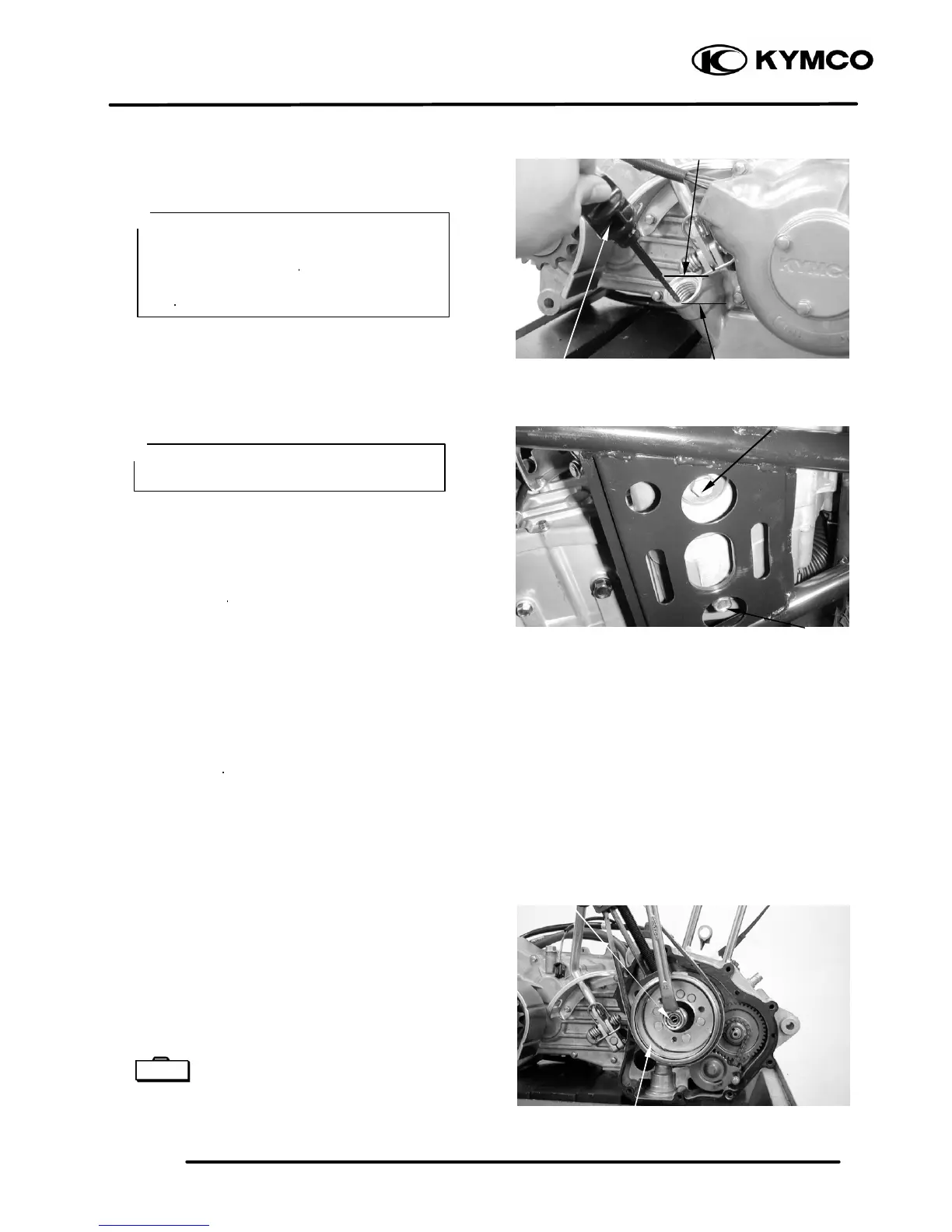

ENGINE OIL/OIL FILTER
OIL LEVEL
Remove the oil dipstick and check the oil level
with the oil dipstick.
If the level is near the lower level, fill to the
upper level with the specified engine oil.
OIL CHANGE
Remove the oil drain plug bolt located on the
bottom of the engine to drain the engine oil
thoroughly.
After the oil has been completely drained,
Install the oil drain plug bolt.
Torque: 2..0 3.0kgf-m
Refer to page 3-2 to clean the engine oil filter
screen
After the oil has been completely drained,
check the filter screen O-ring for damage and
replace if necessary.
Install the oil filter screen, spring and filter
screen cap.
Torque: 1.0 2.0kgf-m
Fill with the specified SAE15W40#, API: SG
engine oil to the proper level.
Oil Capacity: At disassembly : 1.0 liter
At change : 0.9 liter
Check for oil leaks and then start the engine
and let it idle for few minutes.
Recheck the oil level.
OIL PUMP
REMOVAL
Remove the right crankcase cover.
Remove the A.C. generator flywheel.
Flywheel holder E021
Flywheel puller E003
Oil Dipstick
Oil Filter Screen Cap
•
Place the motorcycle upright on level
ground for engine oil level check.
• Run the engine for 2 3 minutes and check
the oil level after the engine is stopped for
2 3 minutes.
*
The engine oil will drain more easily while
the engine is warm.
*
Lower Level
Upper Level
oil
drain plug bolt
Special
