11. CRANKCASE/CRANKSHAFT/
BALANCE SHAFT
11
-
3
MX’er SYSTEM

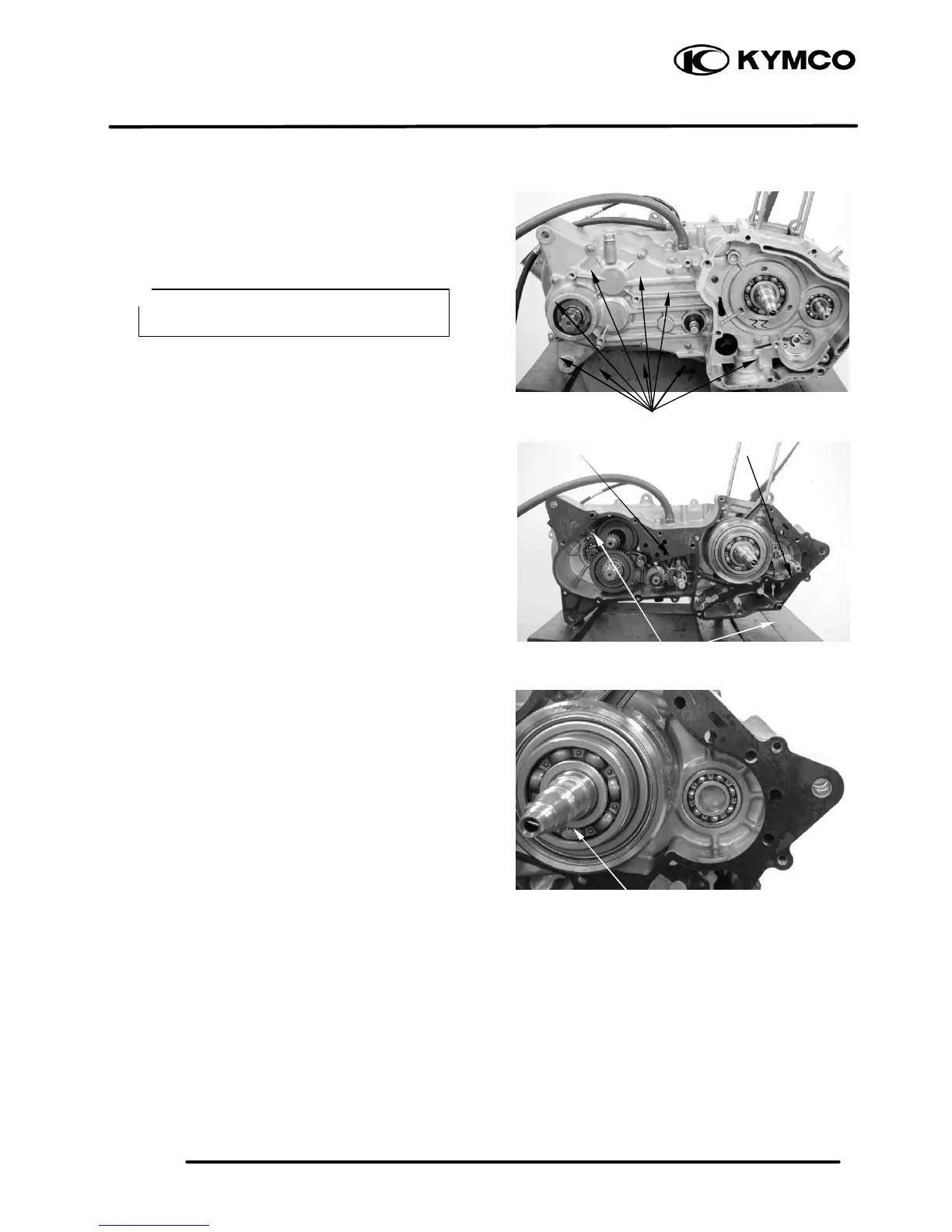

CRANKCASE SEPARATION
Remove the left and right crankcase attaching
bolts. (Section 10)
Separate the left and right crankcase halves.
Remove the gasket and dowel pins.
Remover balance shaft from the left crankcase.
Dowel Pins
Crankcase Bolts
Gasket
Do not damage the crankcase gasket
surface.
*
Balance Shaft
Crankshaft
