10. FINAL REDUCTION/
TRANSMISSION SYSTEM
10
-
3
MX’er SYSTEM

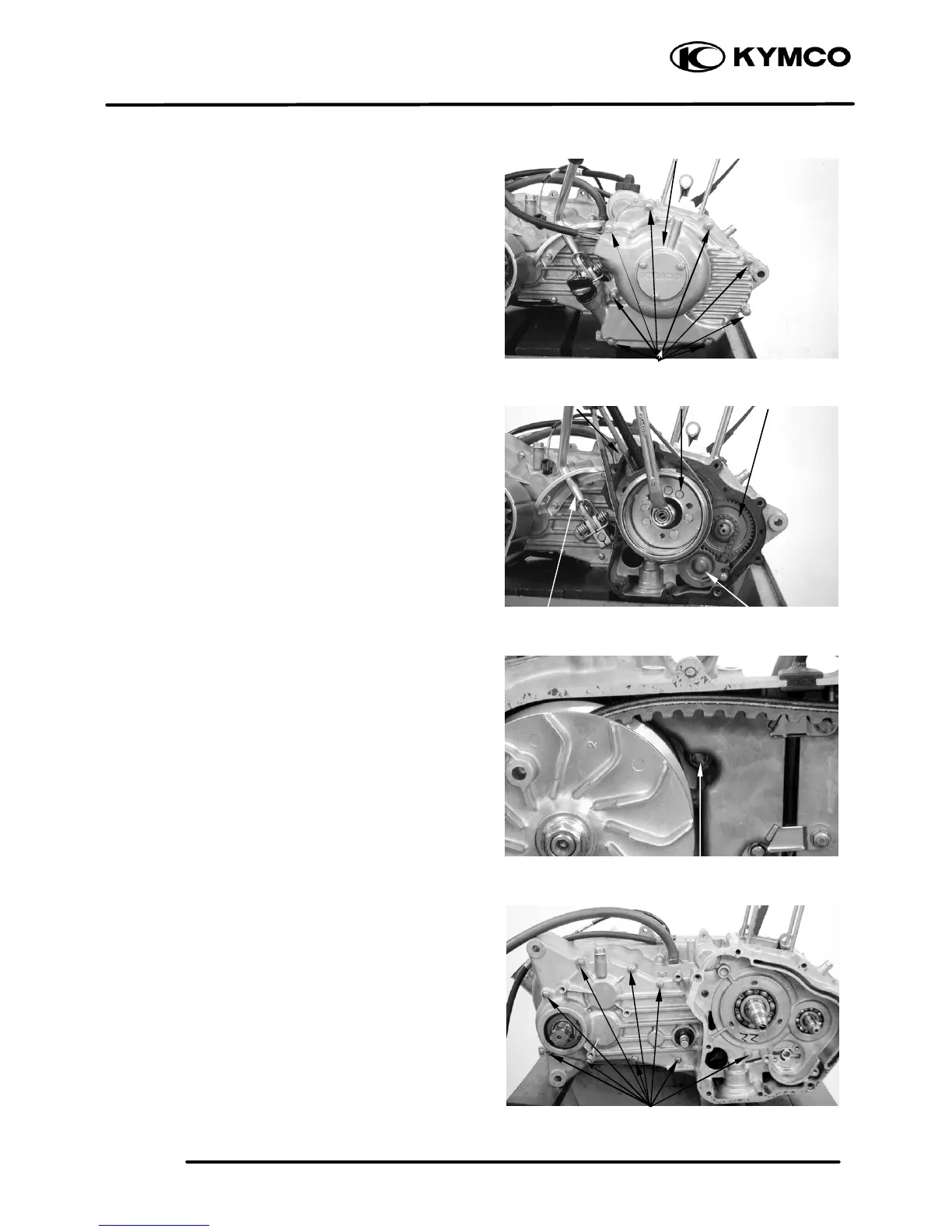

FINAL REDUCTION DISASSEMBLY
Drain engine oil and transmission gear oil into a
clean container.
Remove the engine.
Remove the right crankcase cover.
Remove the shift gear spindle.
Remove the flywheel and starter clutch.
Remove the balance gear oil pump and starter
motor.
Remove the left case bolt.
Remove the transmission case cover attaching
bolts.
Starter Motor
Shift Gear Spindle
Bolt
Flywheel
Oil Pump
Bolts
C
rankcase
C
over
Balance Gear
Bolt
