KYMCO MX’er 125 - Ignition Switch; Stop Switch; Starter Button

17. LIGHTS/ SWITCHES
17
-
5
MX’er SYSTEM
damage. Replace with a new one if necessary.

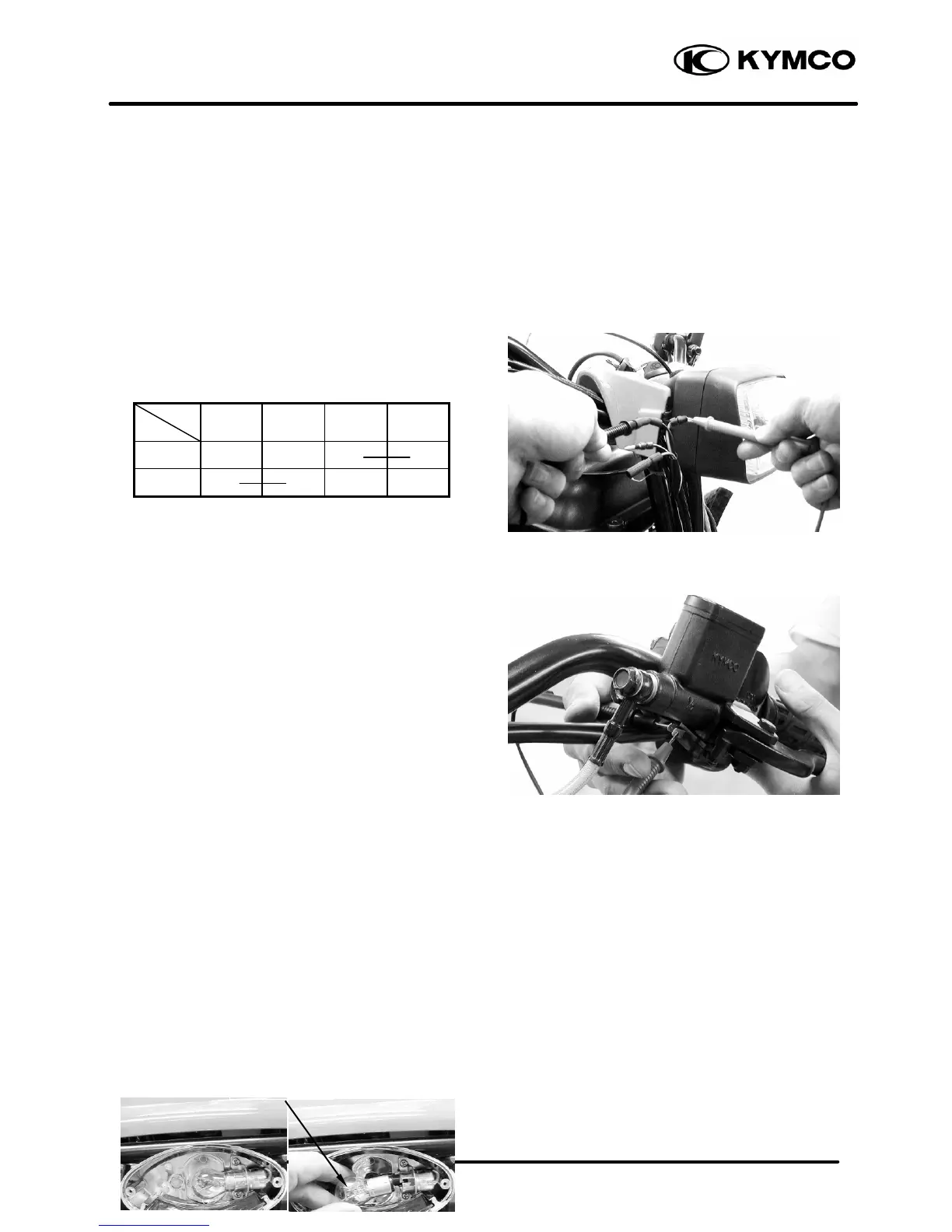

IGNITION SWITCH
Check for continuity between the wires
indicated below.
Color
Position
Black Red
Black/
White
Green
OFF ? ?
ON ? ?
STOP SWITCH
Disconnect the front stop switch wire coupler.
Check for continuity between the front stop
switch wires.
Brake lever applied: There is continuity.
Brake lever released: There is no continuity.
STARTER BUTTON
Remove the center cover.
Bul
b
