8. CYLINDER/PISTON
8
-
4
MX’er SYSTEM
tighten it.

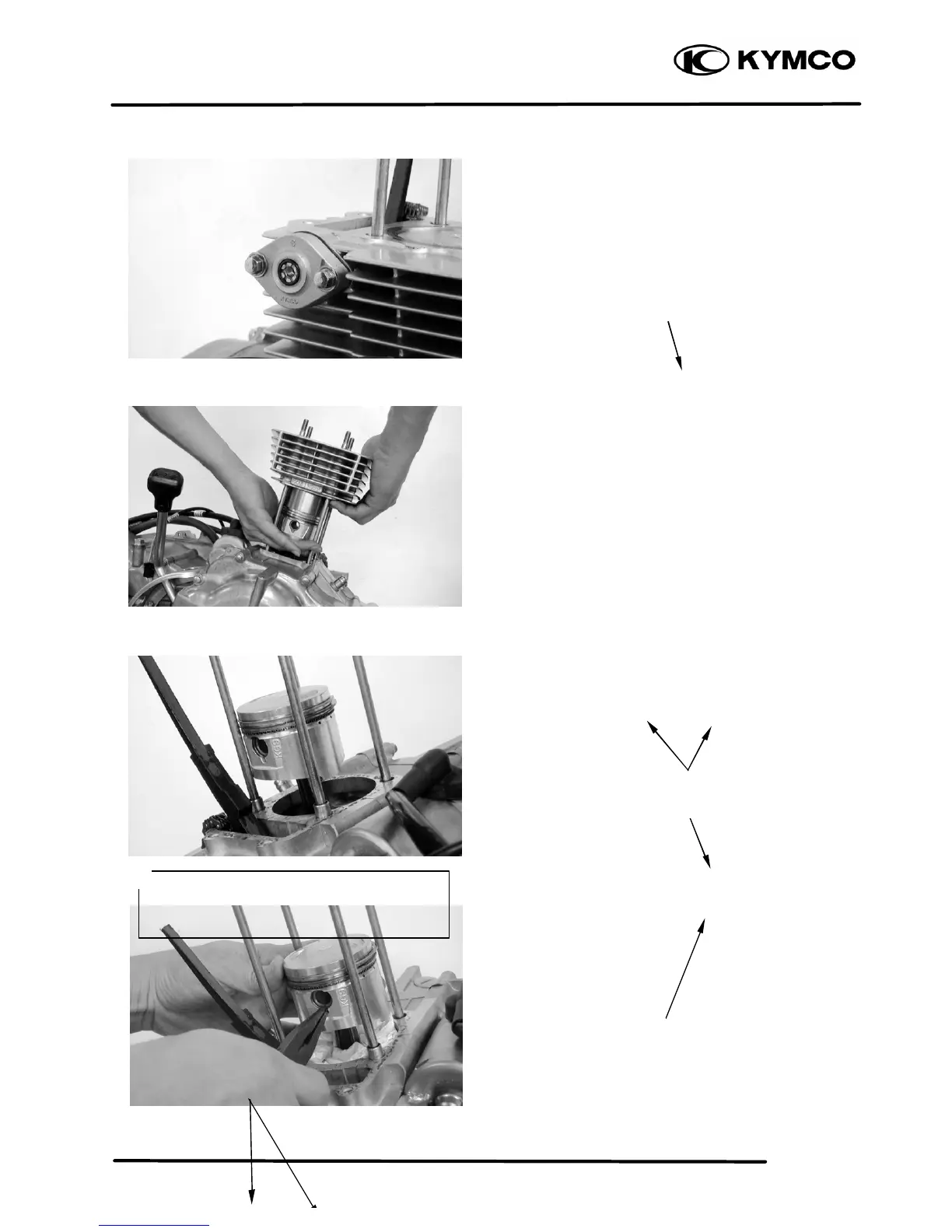

Remove the two bolts on the cam chain
tension.
Remove the cylinder head.
Remove the cam chain guide.
Remove the cylinder base bolts.
Remove the cylinder
.
Remove the cylinder gasket and dowel pins.
Clean any gasket material from the cylinder
surface.
PISTON REMOVAL
Remove the piston pin clip.
Press the piston pin out of the piston and
remove the piston.
Inspect the piston, piston pin and piston rings.
Remove the piston rings.
Dowel Pins
Cylinder
Piston
Piston Pin Clip
Place a clean shop towel in the crankcase to
keep the piston pin clip from falling into the
crankcase.
*
Bolt
