2. FRAME COVERS/EXHAUST MUFFLER
2
-
3
MX’er SYSTEM
FRAME COVERS

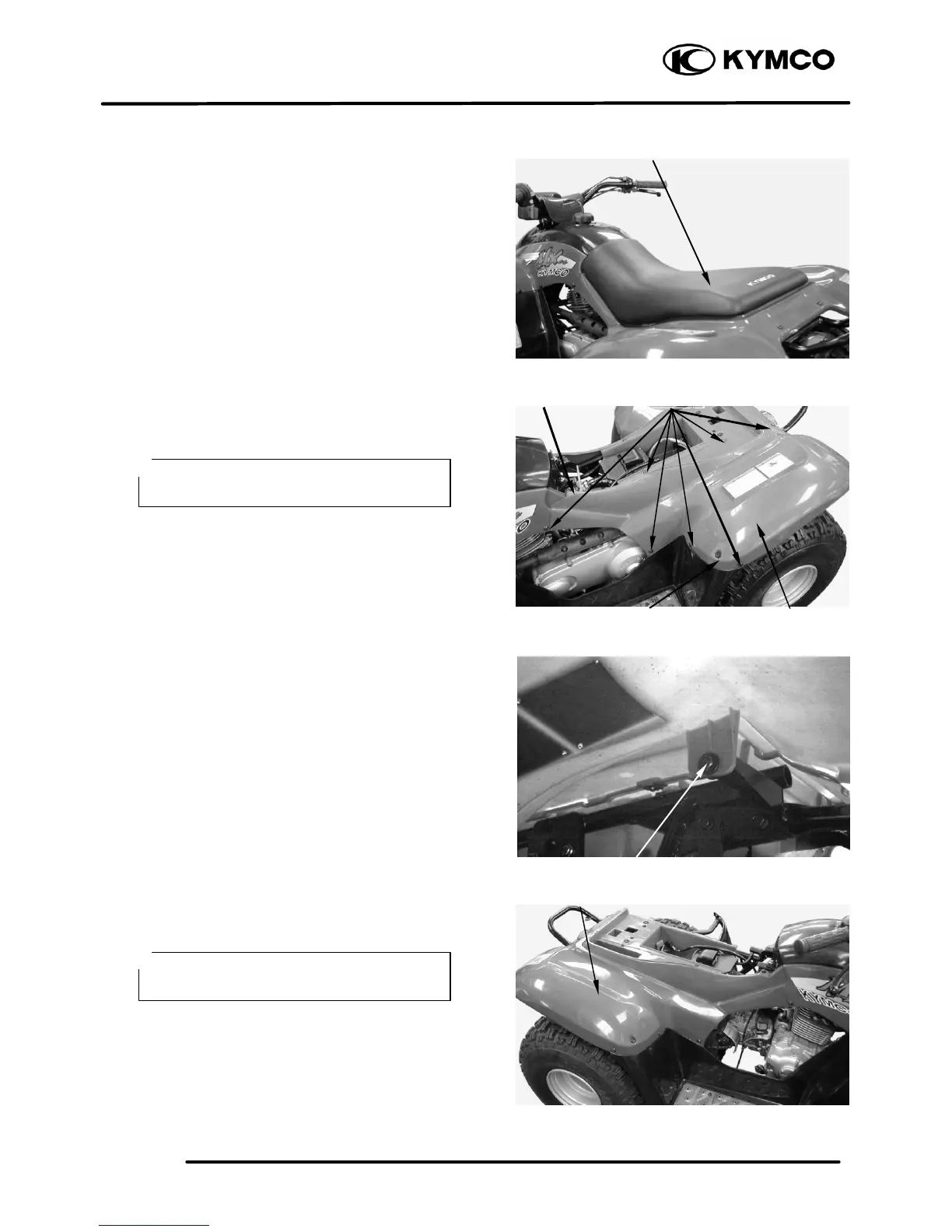

SEAT REMOVAL
Pull the lever backward, then pull up the seat at
the rear.
Remove the seat.
LEFT REAR FENDER REMOVAL
Remove seven screws and two bolts attaching
the left rear fender.
Remove the left rear fender under bolt.
Remove the left rear fender.
RIGHT REAR FENDER REMOVAL
Remove seven screws and two bolts attaching
the right rear fender.
Seat
Screws
Frame
Left
Cover
Bolt
Bolt
Frame
Right
Cover
During removal, do not pull the joint claws
forcedly to avoid damage.
*
Bolt
During removal, do not pull the joint claws
forcedly to avoid damage.
*
