12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12
-
8
MX’er SYSTEM

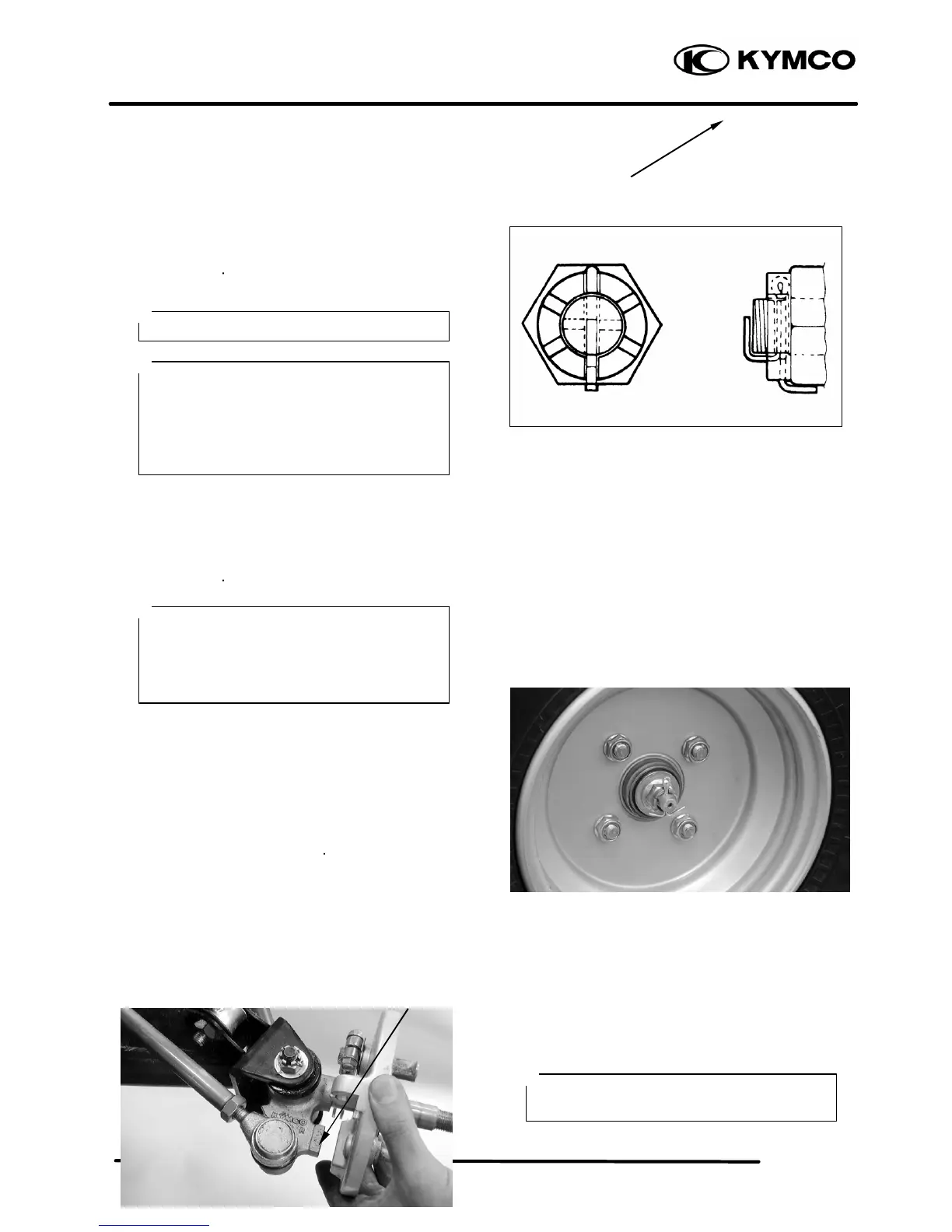

Apply the grease onto the bearings and oil
seal lips of the wheel hub.
Install wheel hub, plate washer and tight the nut
(wheel hub).
Torque: 6.0 8.0kgf-m
Install cotter pins.
Install the front wheel and tighten the nuts
(wheel).
Torque: 6.0 8.0kgf-m
Adjust the front brake cable free play.
Refer to the “FRONT BRAKE
ADJUSTMENT” section in the CHAPTER
3.
Brake cable free play: 10 20mm at lever
pivot.
FRONT SUSPENSION
REMOVAL
Elevate the front wheels by placing a suitable
stand under the frame.
Do not loosen the axle nut after torque
tightening. If the axle nut groove id not
aligned with the cotter pin hole, align
groove with the hole by tightening ut on
the axle nut.
*
Tapered wheel nuts are used for front
wheels.
Install the nuts with its tapered side
towards the wheel.
*
Support the machine securely so there is
no danger of it falling over.
*
Always use a new cotter pin.
*
Boss
Locating Slot
