12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12
-
7
MX’er SYSTEM
REMOVAL
Inspect the shoe springs, O-rings, camshaft
lever and wear indicator.
Replace if damage.
Inspect the brake shoe plate.
Replace if cracks or damage.
Inspect the brake shoe pivot pin.
Replace if wear or damage.
Inspect the camshaft hole and camshaft.
Replace if scratches or excessive wear.
INSTALLATION
Reverse the “REMOVAL” procedures.
Tighten the bolt for camshaft lever.
Torque: 1.8 2.5kgf-m
Install the brake shoe plate.
Brake Lining
Apply the grease onto the o
-
ring, oil seal
lips, pivot pin of brake shoe and camshaft.
*
• Install the camshaft to the brake shoe plate
with the slot of the camshaft placing at
bass line of the wear indicator scale.
• Align the projection with the slot of the
camshaft when installing the wear indicator
to the camshaft.
• Align the cut-out of the camshaft lever
with the slot of the camshaft when
installing the camshaft lever to the
camshaft.
*
Make sure that the boss on the knuckle
correctly engages with the locating slot on
the brake shoe plate.
*

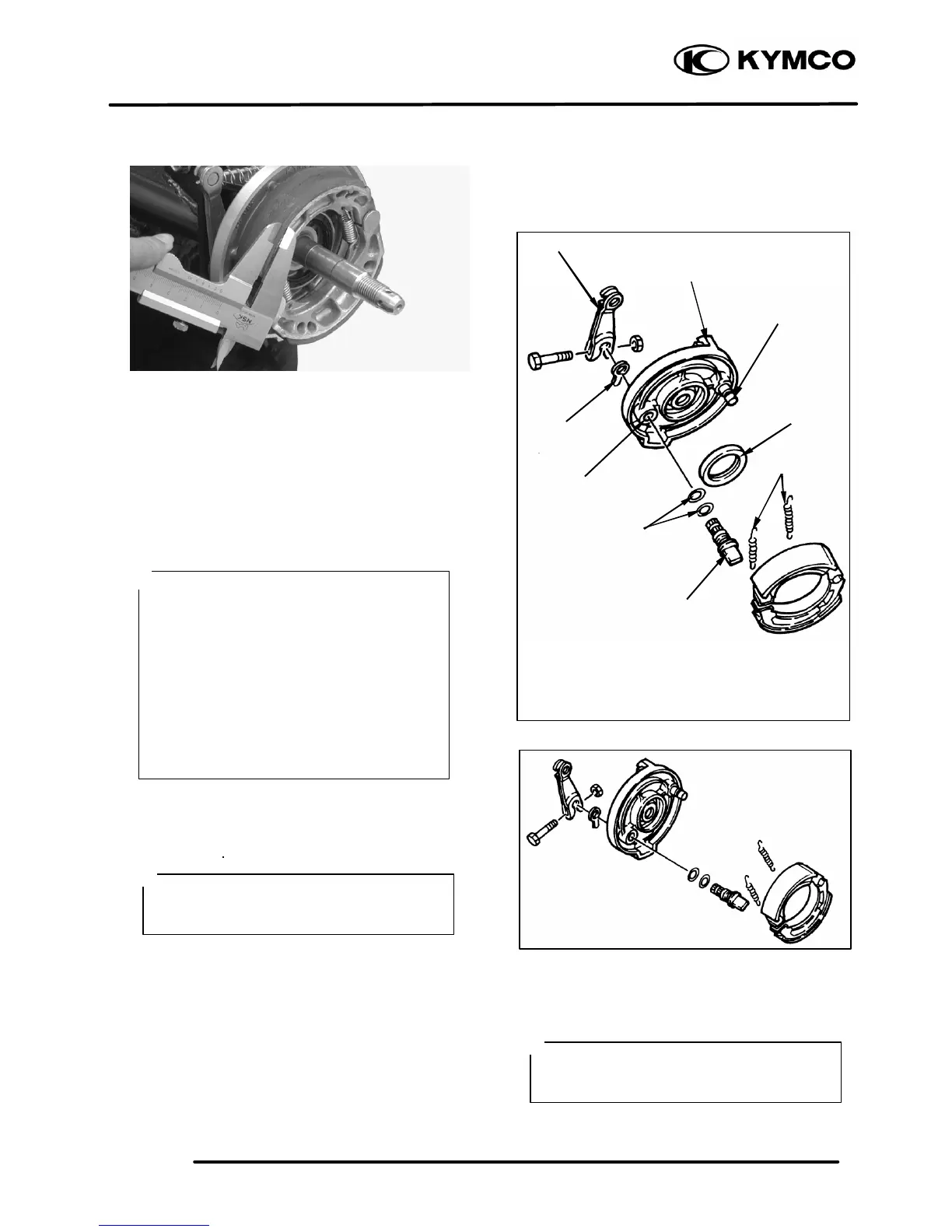

Camshaf
t lever
Wear Indicator
Brake Plate
O
-
rings
Springs
Oil Seal
Camshaft Hole
Brake shoe pivot pin
Camshaft
