14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
14
-
6
MX’er SYSTEM

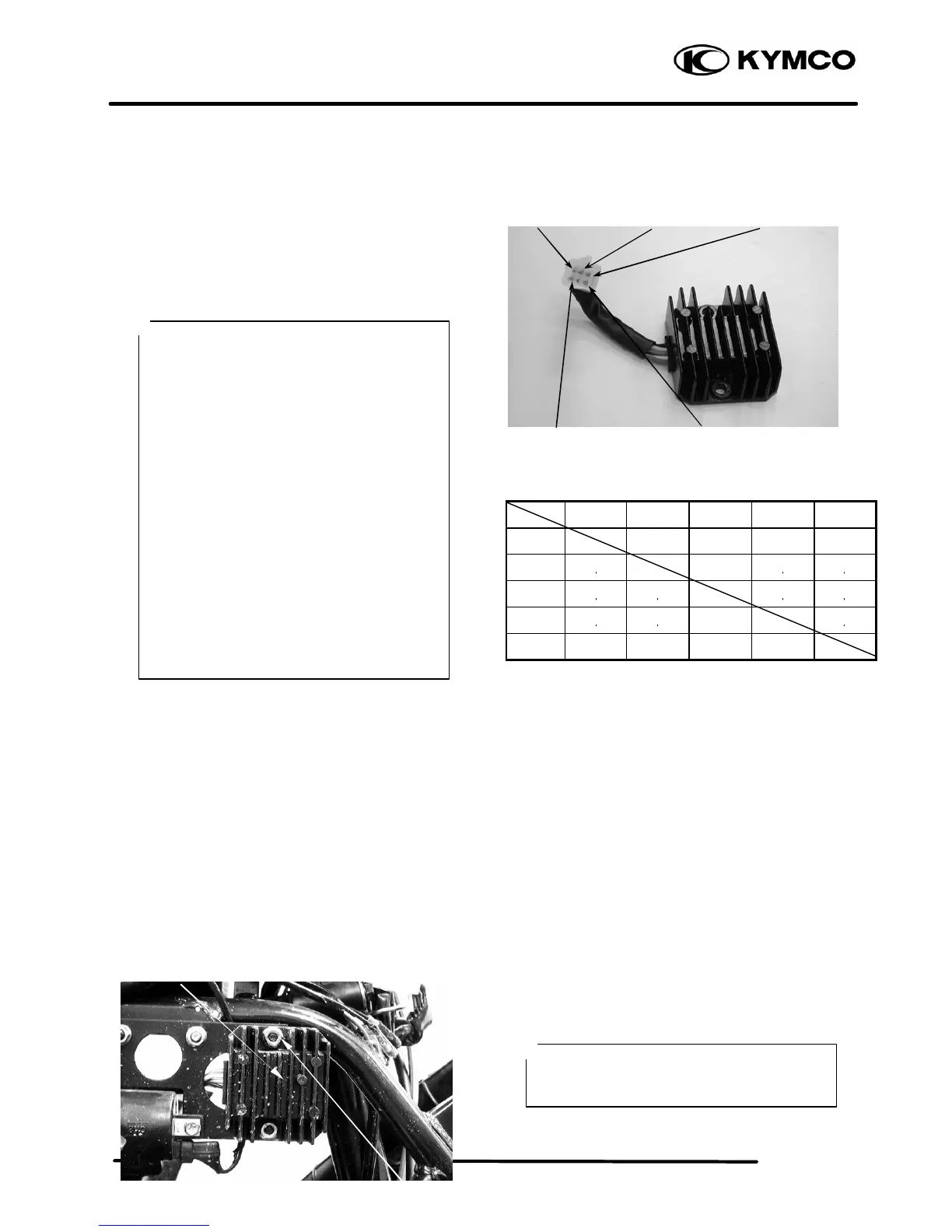

REGULATOR/RECTIFIER INSPECTION
If the main harness terminals are normal, check
the regulator/rectifier coupler for loose
connection and measure the resistance between
the regulator/rectifier terminals.
Replace the regulator/rectifier if the readings are
not within the specifications in the table.
Probe⊕
Probe(-)
Black Pink Red Yellow
Green
Black 4-7K 13-17K
4-7K 1-2K
Pink 4-7K
Red
Yellow
4-7K
Green 1-2K 4-6K 13-17K
4-6K
A.C. GENERATOR CHARGING
COIL
INSPECTION
Regulator/Rectifier
The inspe
ction of A.C. generator charging
coil can be made with the engine installed.
*
Yellow
Red
Green
Pink
Black
•
Do not touch the tester probes with your
finger because human body has
resistance.
• Use the following specified testers for
accurate testing. Use of an improper
tester in an improper range may give false
readings.
− Kowa Electric Tester
− Sanwa Electric Tester
− Kowa Electric Tester TH-5H
• Proper range for testing:
− Use XKΩ range for Sanwa Tester
− Use X100Ω range for Kowa Tester
• If the dry battery in the tester is weak, the
readings will be incorrect. In this case,
check the dry battery.
• The Kowa tester readings are 100 times
the actual values. Be careful during
testing.
*
Lock Nut
