KYMCO MX’er 125 - Headlight Switch; Engine Stop Switch

17. LIGHTS/ SWITCHES
17
-
6
MX’er SYSTEM
Disconnect the starter button yellow/brown and
yellow/red wires.
Check for continuity between the black and
yellow/red wires.
Color
Position
Yellow/Brown
Yellow/Red
FREE
PUSH ? ?

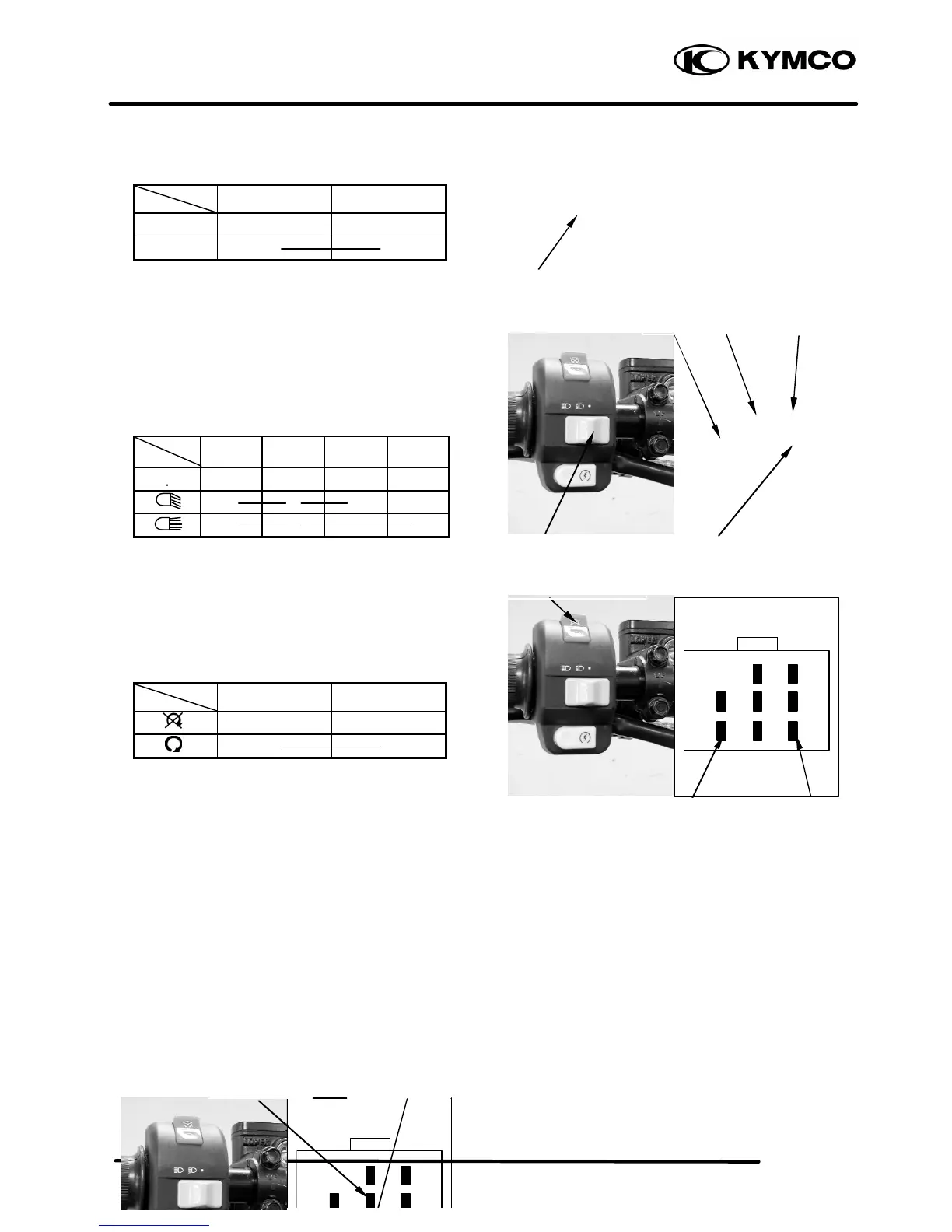

HEADLIGHT SWITCH
Remove the center cover.
Disconnect the headlight switch wire coupler.
Check for continuity between the headlight
switch wires.
Color
Position
Black Brown
White Blue
? ? ?
? ? ?
ENGINE STOP SWITCH
Remove the center cover.
Disconnect the headlight switch wire coupler.
Check for continuity between the headlight
switch wires.
Color
Position
Green/Red Green
? ?
Yellow/
Brown
Yellow/
Red
Black
Brown
White
Blue
Headlight Switch
Green/Red
Green
Engine Stop Switch
