KYMCO MX’er 125 - Front Brake

12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12
-
6
MX’er SYSTEM
hub.

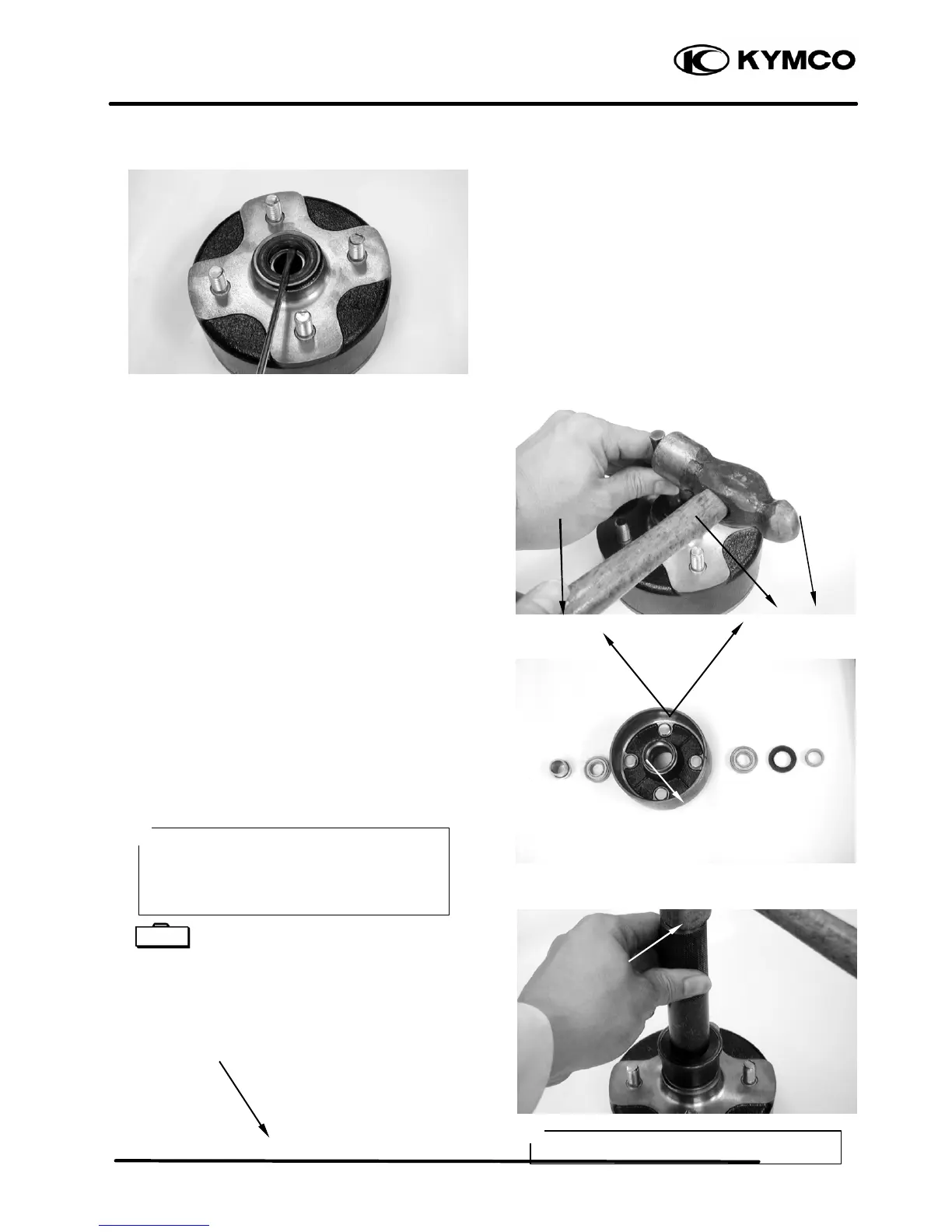

BEARING REPLACEMENT
Remove the front wheel bearings and distance
collar.
Replace the bearings if the races do not turn
smoothly, quietly, or if they fit loosely in the
hub.
Apply grease to a new dust seal lip and install
the dust seal.
Pack all bearing cavities with grease.
Drive in the left bearing.
Install the distance collar.
Drive in the right bearing.
Oil seal and bearing install E014
FRONT BRAKE
FRONT BRAKE LINING INSPECTION
Measure the front brake lining thickness.
Service limit: 2.0mm replace if below
Dust Seal
Wheel Bearing
Driver Handle
Dust Seal
Side Collar
Collar
Outer
Driver
• Do not allow the bearings to tilt while
driving them in.
• Drive in the bearing squarely with the
sealed end facing out.
*
Keep oil or grease off the brake linings.
*
Special
