KYMCO MX’er 125 - Crankshaft Inspection

11. CRANKSCASE/CRANKSHAFT/
BALANCE SHAFT
11
-
4
MX’er SYSTEM

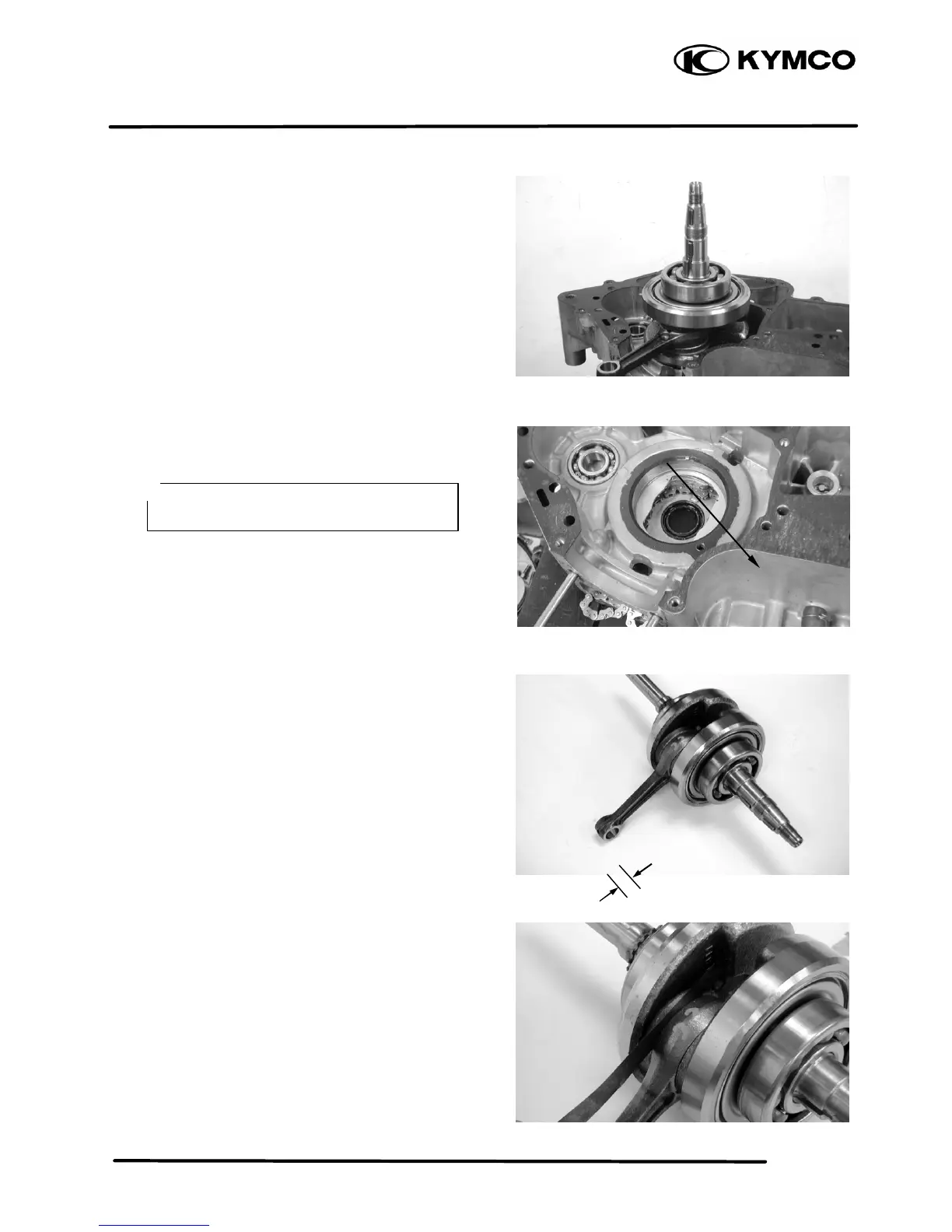

Remove the crankshaft and cam chain from the
left crankcase.
Clean off all gasket material from the crankcase
mating surfaces.
CRANKSHAFT INSPECTION
Measure the connecting rod small end I.D.
Service Limit: 15.06 mm replace if over
Measure the connecting rod big end side
clearance.
Service Limit: 0.55mm replace if over
Gasket
Avoid damaging the crankcase mating
surfaces.
*
