5. FUEL SYSTEM
5
-
9
MX’er SYSTEM
FUEL TANK

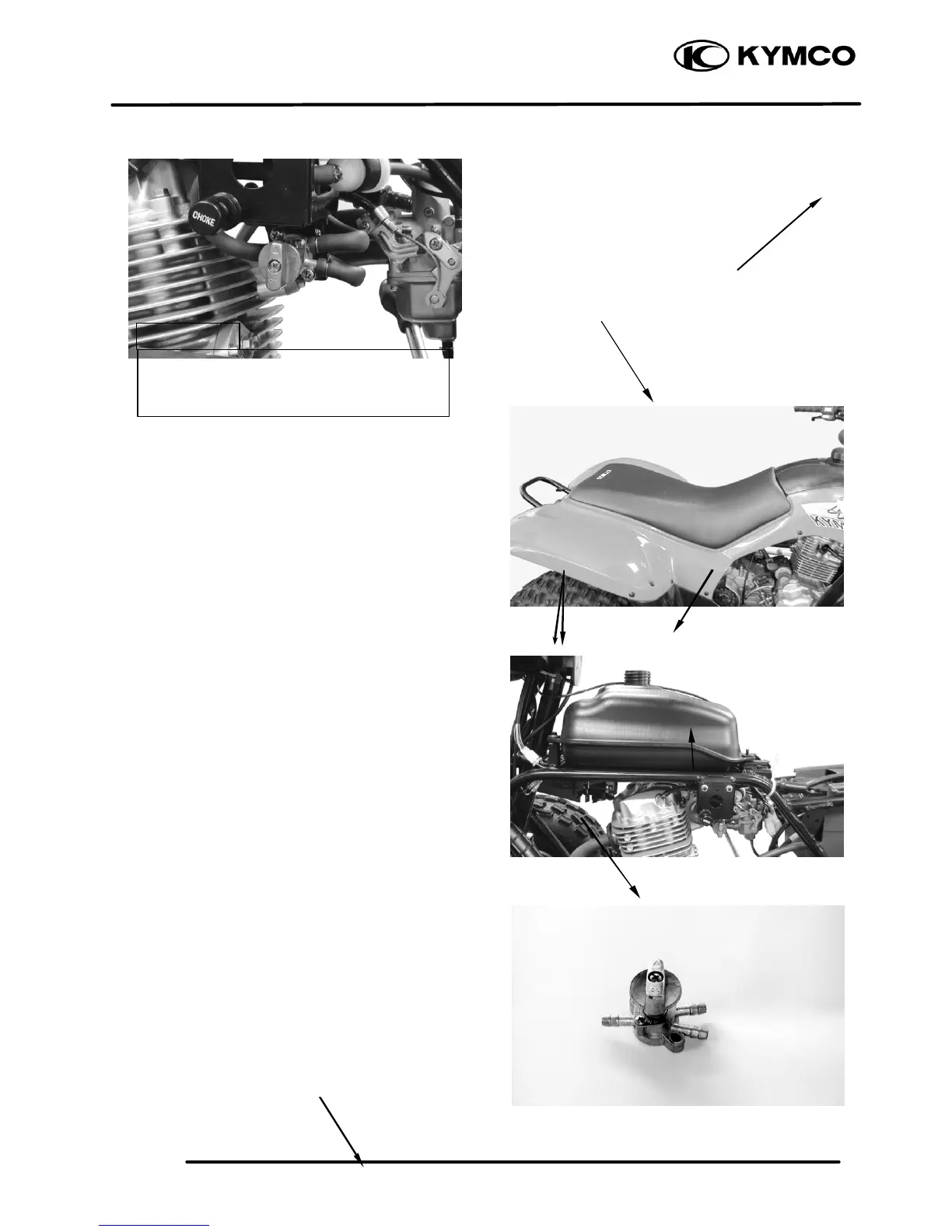

FUEL TANK REMOVAL
Remove the seat.
Remove the center cover.
Remove the right and left front fender.
Switch the fuel valve “OFF”.
Disconnect the fuel tube and remove two bolts
on the end of the fuel tank.
Remove the fuel tank.
FUEL VALVE REMOVAL
Remove the fuel valve and fuel cup.
Remove the screw on the fuel valve control
switch.
Bolts
Fuel Tank
Fuel
Valve
Tube
•
Keep sparks and flames away from the
work area.
• Wipe off any spilled gasoline.
Warning
Choke Cable
Screw
Side
