MX’er SYSTEM

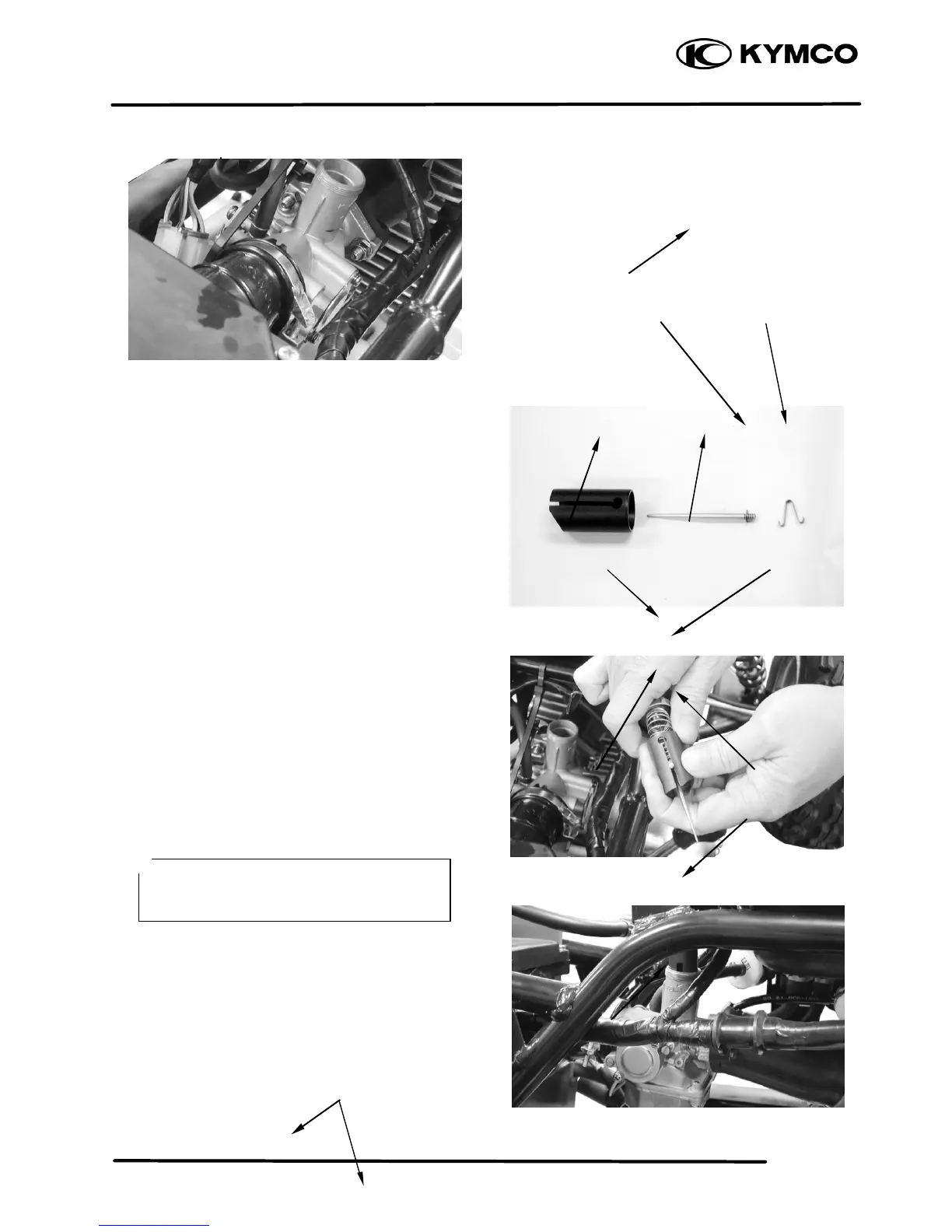

Install the carburetor onto the intake manifold
and tighten the two lock nuts.
Torque: 0.8 1.2kgf-m
Install the air cleaner connecting tube and tighten
the band screw.
THROTTLE VALVE ASSEMBLY
Install the jet needle into the throttle valve and
secure with the needle retainer.
Jet Needle Notch: 4th Notch
(Counted from top to bottom)
Assemble the rubber cover, carburetor cap and
throttle valve spring.
Connect the throttle cable to the throttle valve.
Install the throttle valve into the carburetor
body.
Connect the accelerating pump cable.
Fully open the throttle and adjust the
accelerating pump cable to align the punch mark
on the accelerating pump arm with the punch
mark on the set plate.
Tighten the choke cable.
