KYMCO MX’er 125 - Air Cleaner

5. FUEL SYSTEM
5
-
10
MX’er SYSTEM

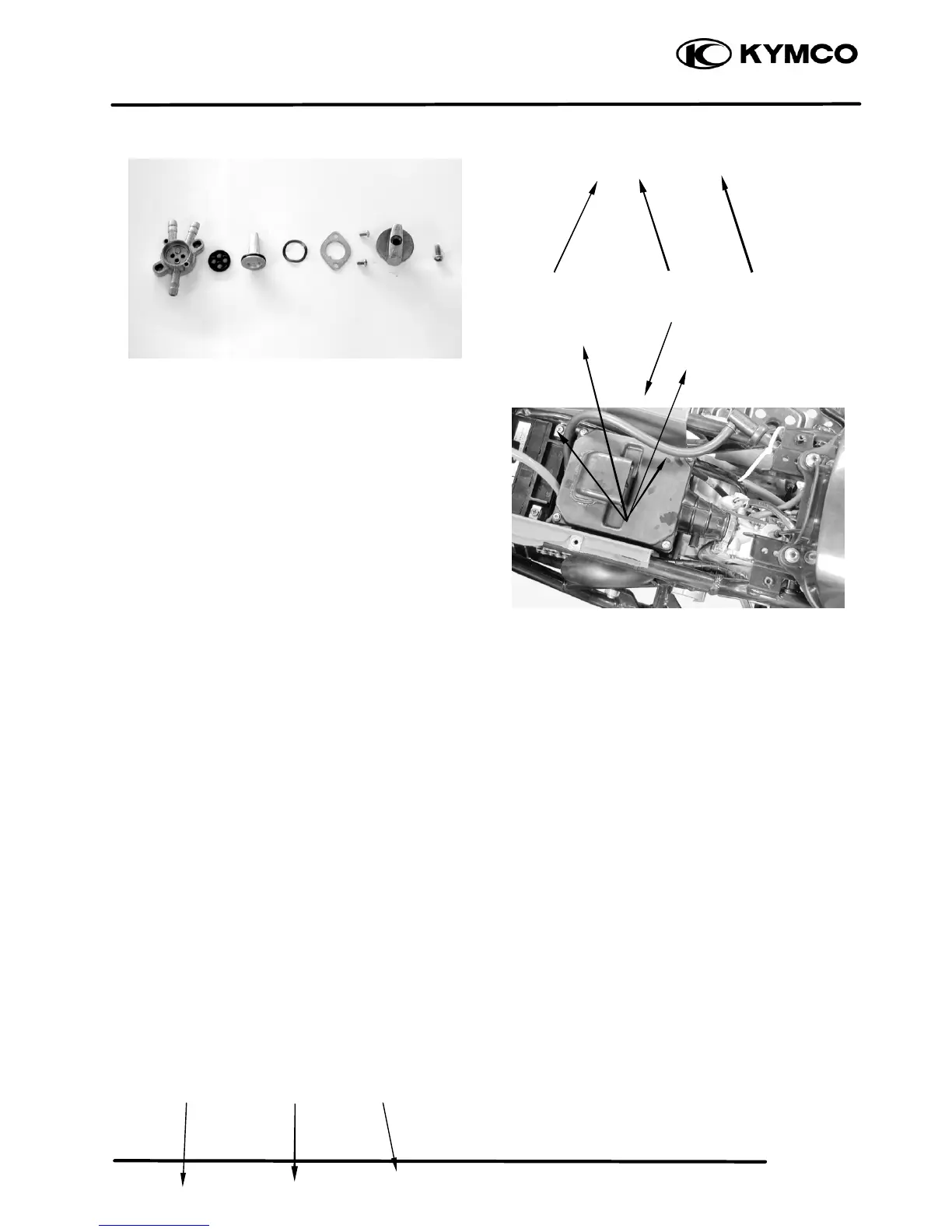

Remove the two screws on the fuel valve body.
INSPECTION
Inspect the fuel valve strainer for dirt and clog.
Clean if necessary.
Replace the O-rings with new ones if they are
damaged or deteriorated.
AIR CLEANER
REMOVAL
Remove the seat.
Remove the four screws on the air cleaner case
cover and the cover.
Remove the air cleaner screen and element.
Fuel Valve
Body
Screws
Air Cleaner Case Cover
Control Shaft
Contr
ol Switch
Rubber Gasket
Retaining Ring
Washer
