4. LUBRICATION SYSTEM
4
-
4
MX’er SYSTEM
Oil Pump Driven Gear
Bolts
Bolts
Nut

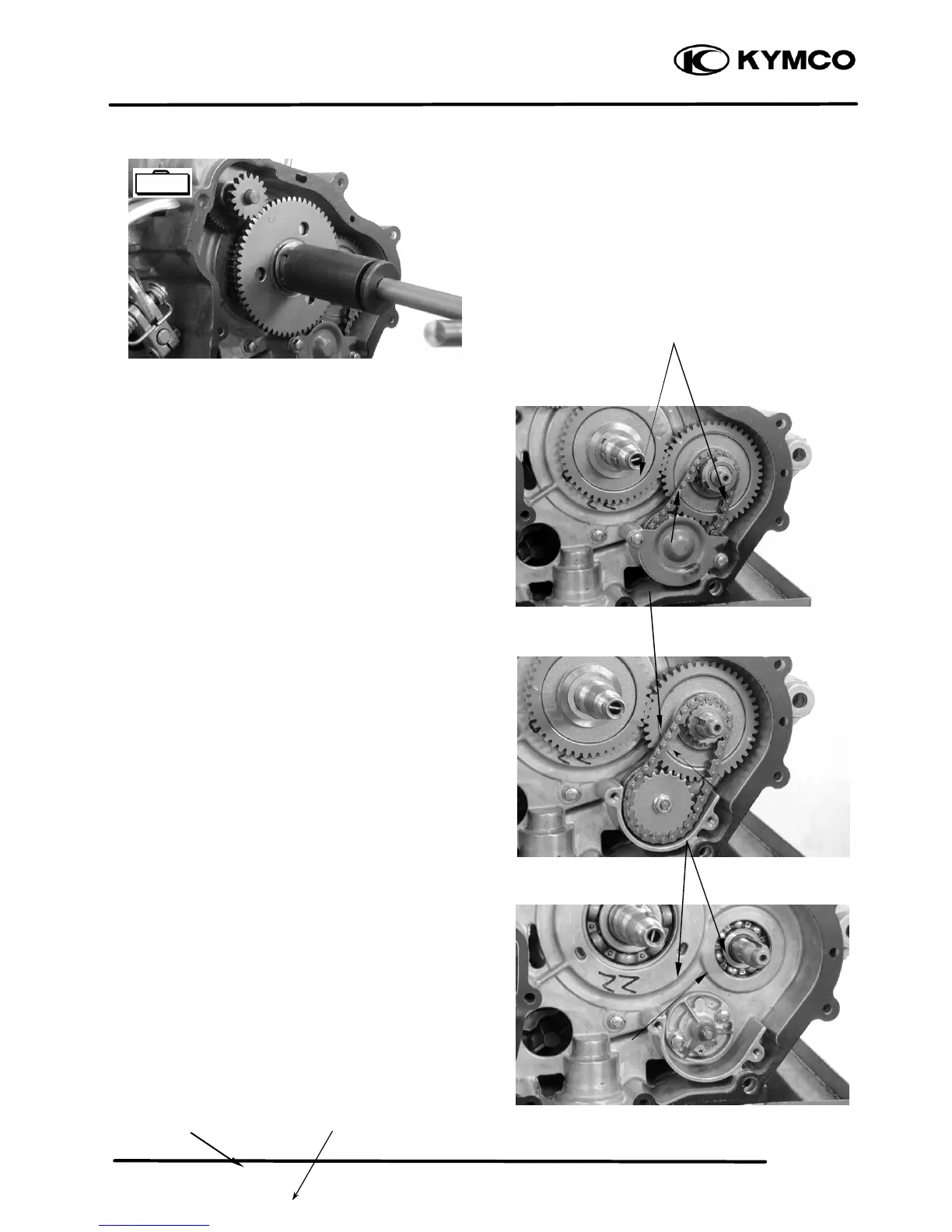

Remove the starter idle gear and starter clutch.
Lock nut socket wrench E009
Remove the two bolts and oil separator cover.
Remove the oil pump driven gear nut to remove
the oil pump driven gear and drive chain.
Remove the oil pump mounting two bolts and
the oil pump.
DISASSEMBLY
Oil Separator Cover
St
arter Clutch
Oil Pump
Starter Idle Gear
